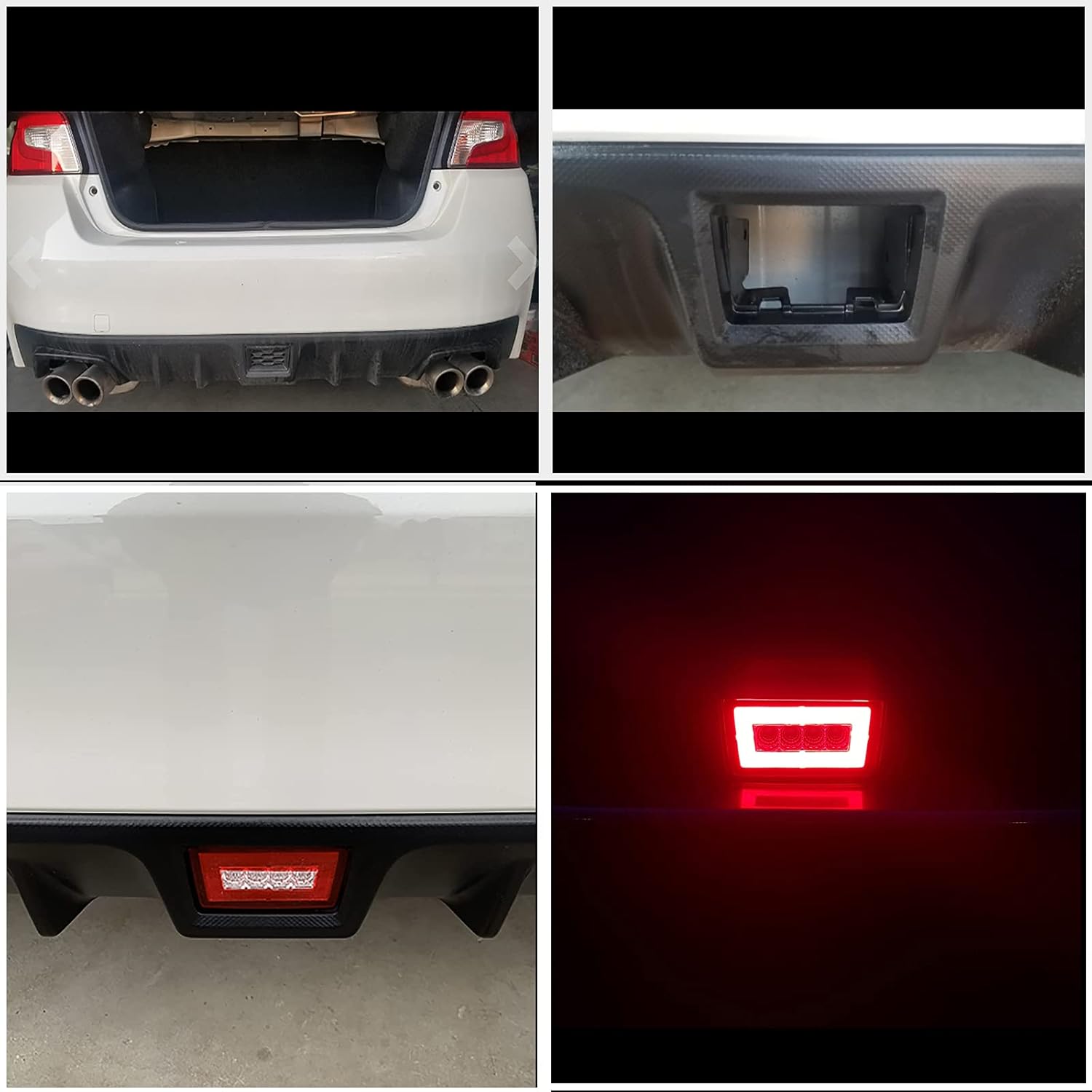

Xinctai 3-In-1 LED Rear Fog Light Kit For 2011-up Subaru Impreza WRX STi XV Crosstrek Stop Tail Brake Lamp Backup Reverse Light (Smoked Lens)

Features:The 3-in-1 LED rear fog light give your Subaru a popular modern appearance. Built in Canbus, no error code. Waterproof design (IP67).Meet for DOT & SAE requirements.Wiring Guide:The red wire goes to the solid BROWN wire (12v),(Brake Light)The black wire goes to the solid BLACK wire (Ground)The white wire goes to the BROWN/YELLOW wire (Reversing Light)The green wire goes to the BLACK/WHITE wire (Running Lights)Step 1: For the wire harness, connect the green wire to the existing taillight positive and the black wire to the ground or taillight negative.Step 2: There are two extra wires behind the LED rear fog light (red and white). Tap the red wire to brake light positive for brake light mode and tap the white wire to backup reverse light positive to function as reverse lights.Compatibility:For Subaru Impreza 2011-2016For Subaru WRX/STI 2011-2021For Subaru XV Crosstrek 2013-2017OEM Part Number: 84913FG420 84913-FG420Note: You will not be able to use the included metal bracket on your Subaru Impreza or XV Crosstrek models, since the rear fog lamp opening on the bumper was not opened completely. You will have to make some spacers in order to create a flush fit over the rear fog gap.Package includes:1PC LED Rear Foglight + Wire harness + Metal Mounting Bracket + Screws

• Compatible with: 2011-2016 Subaru Impreza, 2011-2021 Subaru WRX/STI, 2013-2017 Subaru XV Crosstrek, OEM Part Number: 84913FG420, 84913-FG420. (Before purchase:Please check the back of the car if it has that cover it would pop out.)
• Powered by 12 pcs red LED lights for the rear fog light with brake/tail feature and 4 pcs white LED lights for backup reverse.
• Wiring Guide: Black wire to the ground, Red wire to the positive brake light, White wire to the reverse light, Green wire to running light. Color of the wires may vary when you receive. Testing each wire on a 12V battery to connect them accordingly is highly recommended.Installation Guide is NOT included.
• Replace and upgrade original old rear fog lights, give your Subaru a modern and brighter look, make your driving safer.
• The whole rear foglight kit includes: 1PC LED rear fog light assembly, wiring harness, metal mounting bracket, and screws. DOT approved, SAE approved.
