WEIPU SA20 Series 2 pin Waterproof Connector, SA2010/P2 IP67 2 Wire Aviation Industrial High Voltage Electrical Heavy Circular Connector Plug Socket, Black (Thread nut Panel Mount, 2 Pin)
Product details
| Management number | 218143770 | Release Date | 2026/05/03 | List Price | $9.12 | Model Number | 218143770 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

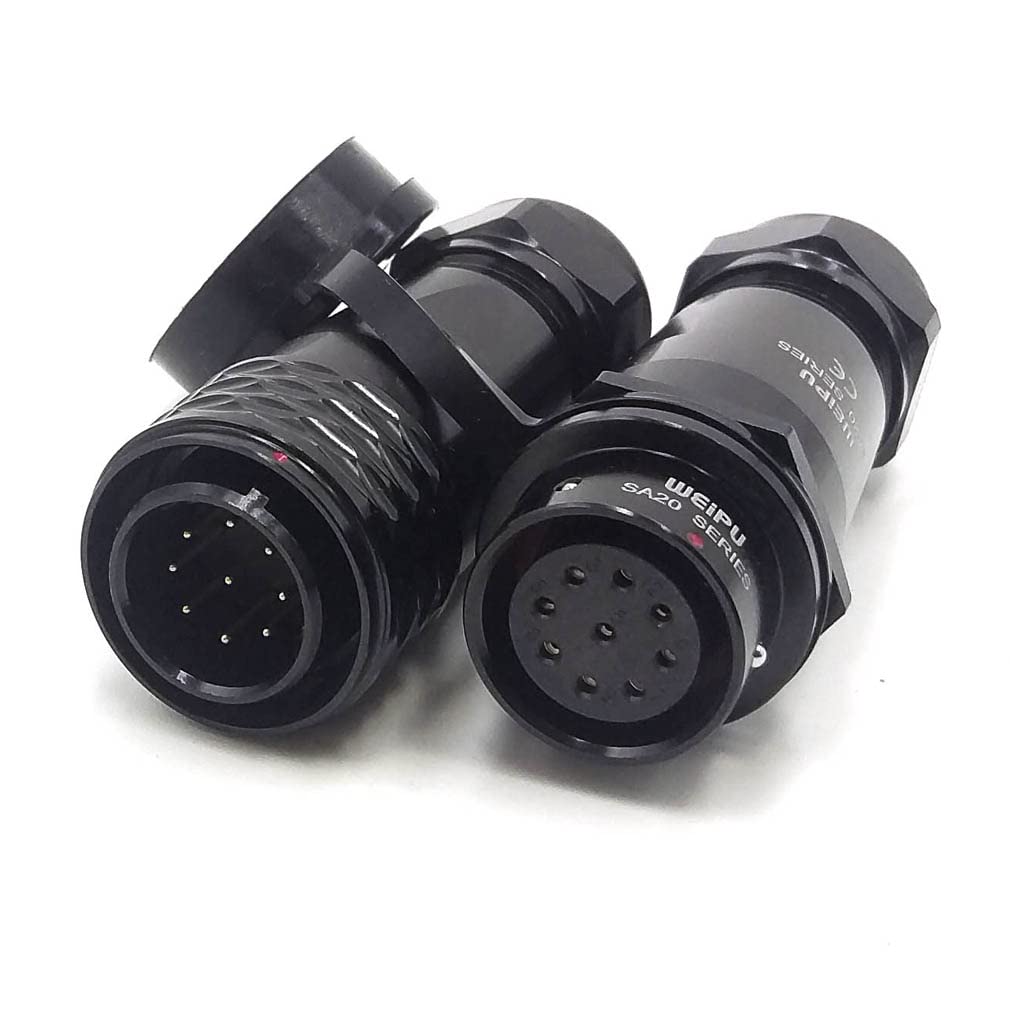

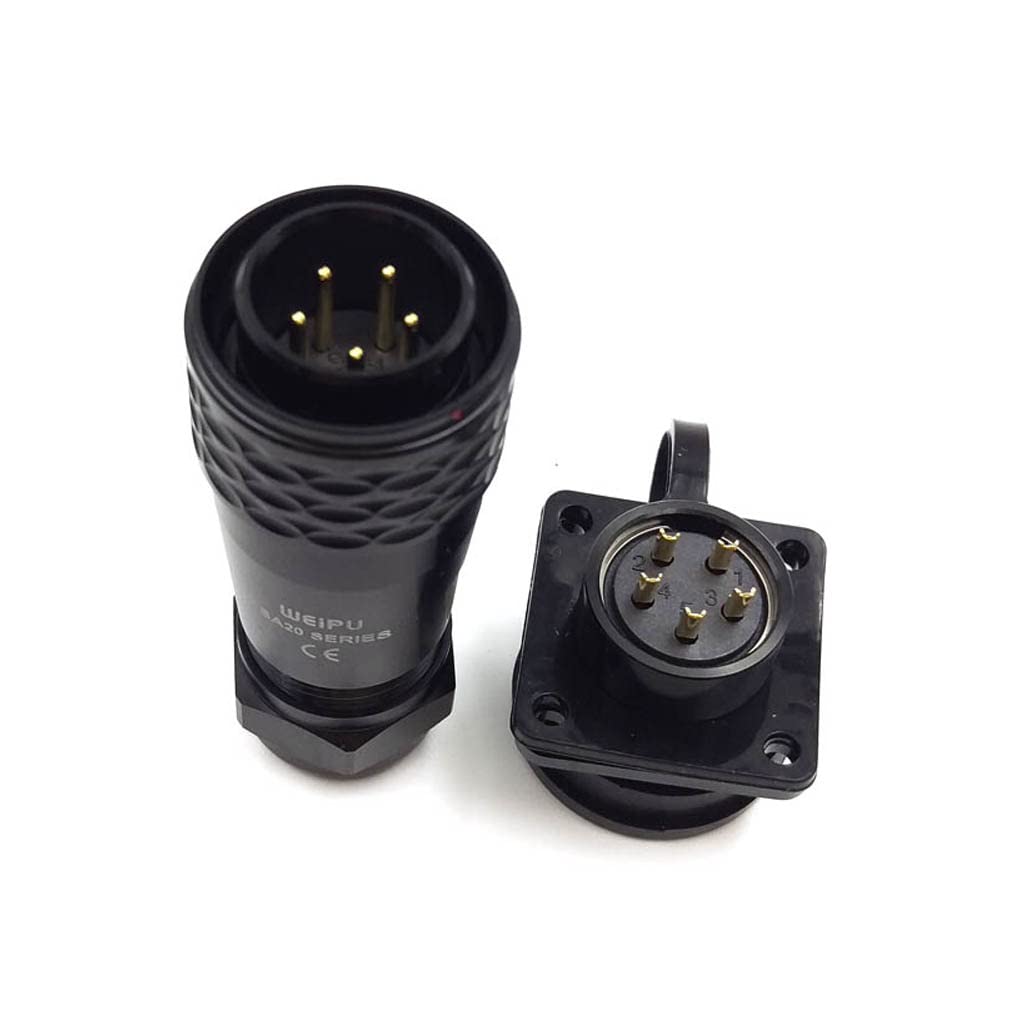

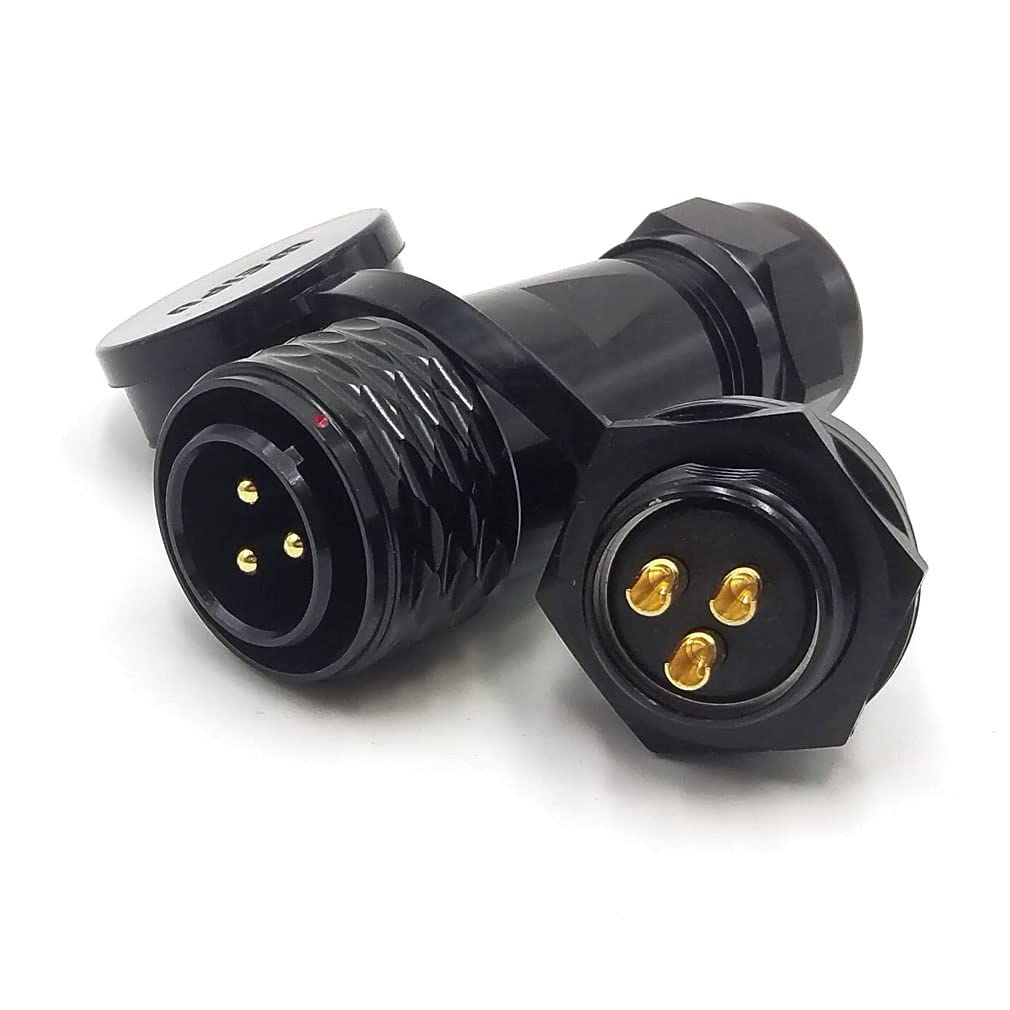

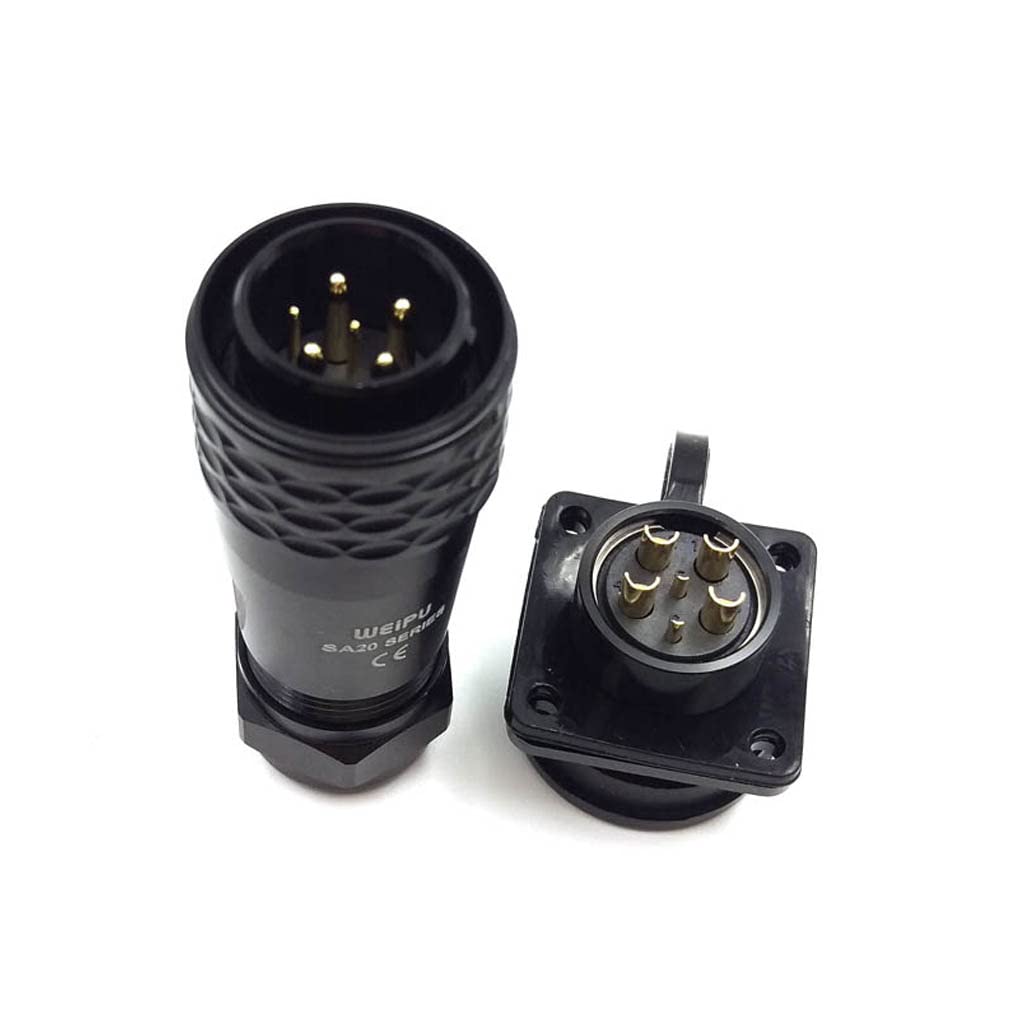

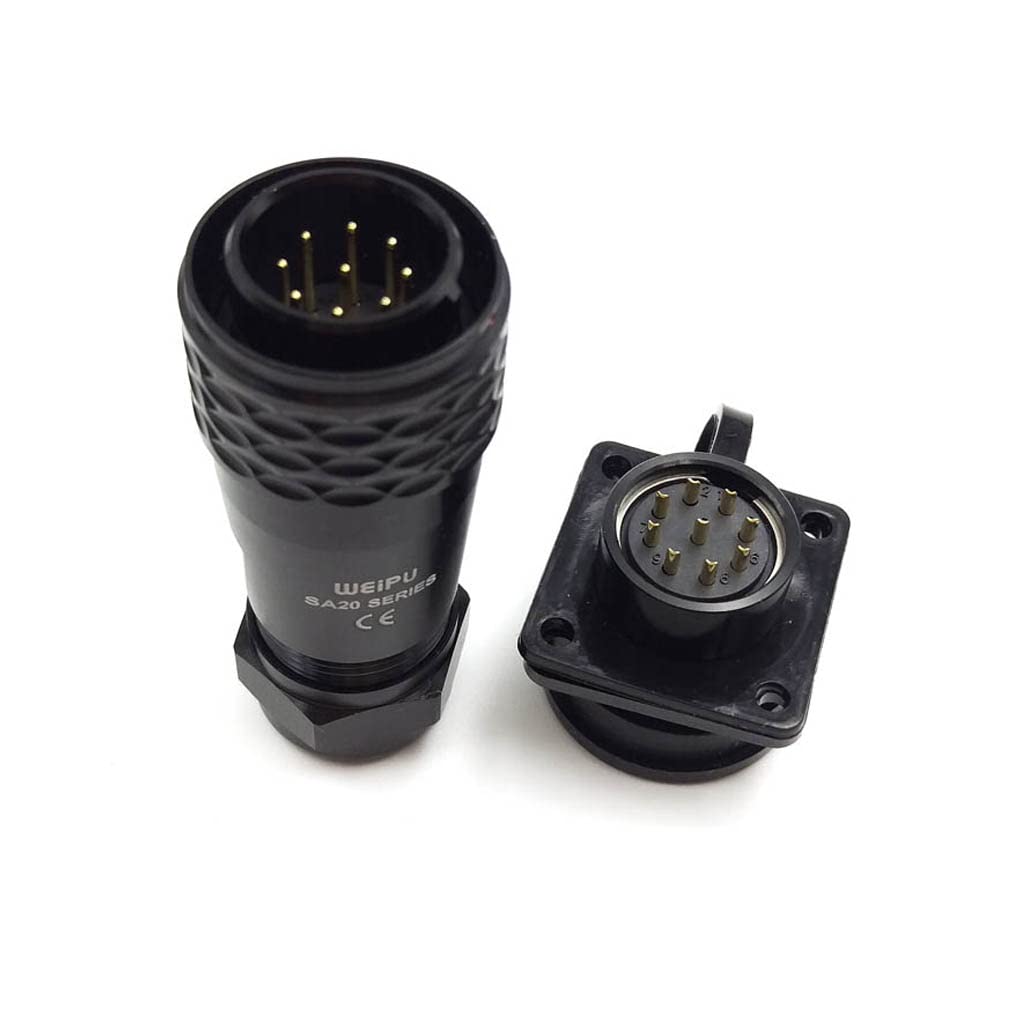

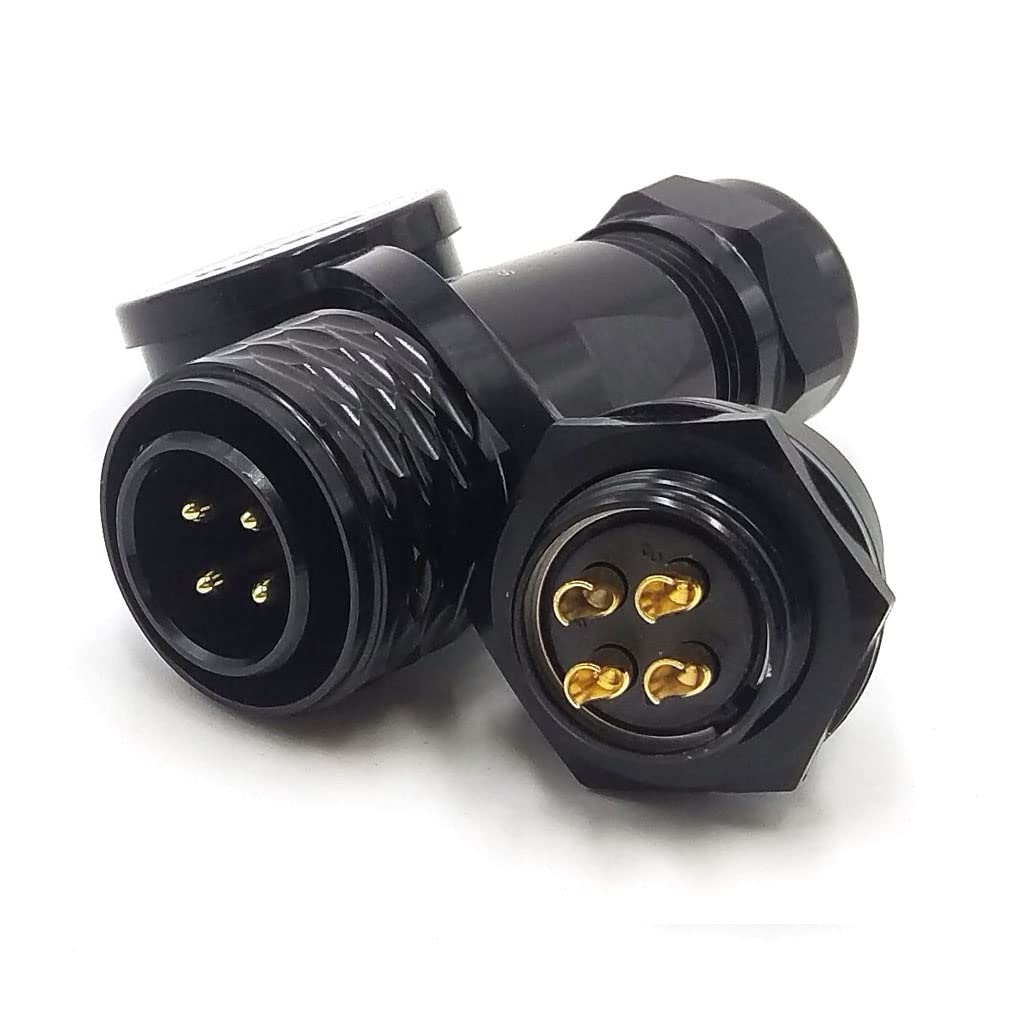

WEIPU SA20 IP67 Waterproof connector, 2 3 4 5 6 7 12 15 PIN Aviation Connector POWER CABLE AVIATION PLUG SOCKET 2pin, 3pin, 4pin: Rated Current (A): 50A Contact diameter × number: Φ2.5x2 / Φ2.5x 3 / Φ2.5x 4 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1mΩ Wire specification: <4m㎡/11AWG 5pin, 7pin: Rated Current (A): 25A Contact diameter × number: Φ1.5x5 /Φ1.5x7 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2.5mΩ Wire specification: <2m㎡/14AWG 6pin: Rated Current (A): 25A, 5A Contact diameter × number: Φ2.5x4, Φ1.0x2 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1mΩ, 5mΩ Wire specification: <4m㎡/11AWG, <0.785m㎡/18AWG 9pin, 12pin, 15pin: Rated Current (A): 5A Contact diameter × number: Φ1.0x9 / Φ1.0x12 / Φ1.0x15 Rated voltage (AC.V.): 500V (400V: 12pin, 15pin) Withstanding Voltage (AC.V) 1 minute: 1500V (1200V: 12pin, 15pin) Contact resistance: 5mΩ Wire specification: <0.785m㎡/18AWG Other details: Coupling: Push-pull, Self-lock Shell material: Anodized aluminium Insert Material: PPS, max temperature 260° Contact material: Brass with gold plating Termination: solder (2 to 5 pin crimp available) Cable outer diameter range: 8-12mm max

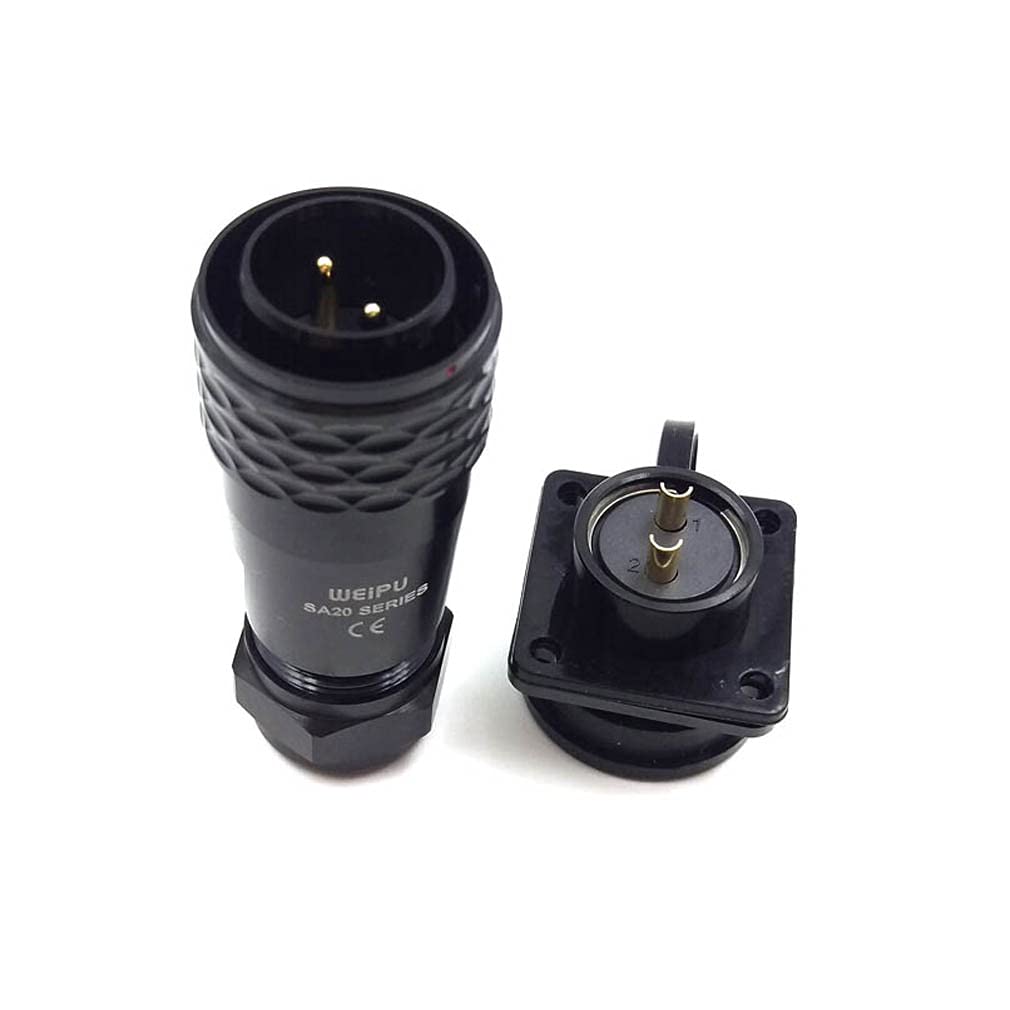

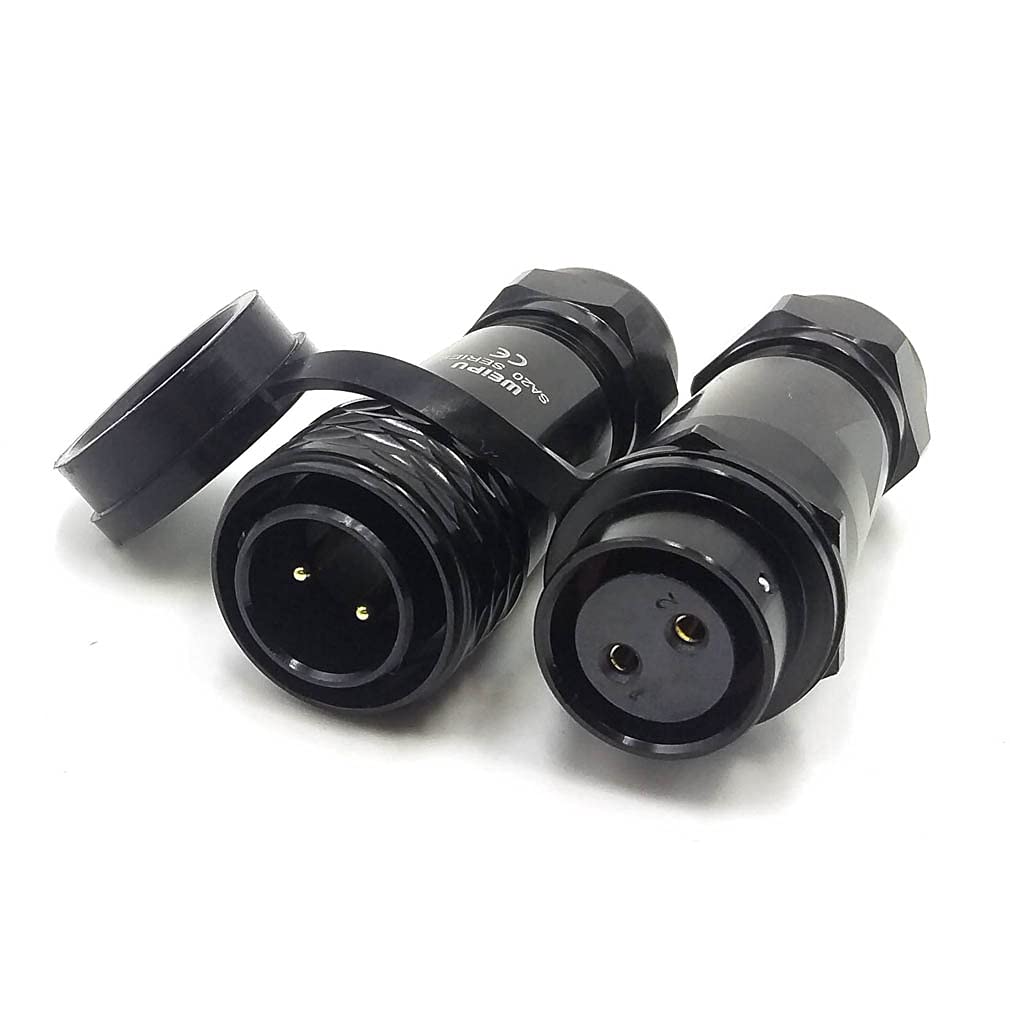

- Part number: SA2010/P2 + SA2012/S2, 2 pin Waterproof Aviation Thread Nut Panel Mount Connector, Termination type: Solder, Gender: Male plug female socket
- Contact diameter: Φ2.5x2, Wire specification: <2.5m㎡/13AWG, Default Cable specification: 8-12mm max
- Rated current: 25A, Rated voltage (AC.V.): 500V, Weight: 2.4 oz, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS.
- What's in the package: 1 plug + 1 socket with cap + 4 set screw, Type: Circular Waterproof Aviation Connectors
- Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
| Item Weight | 2.45 ounces |
|---|---|
| Manufacturer | FORTTAR |
| Item model number | SA20 |
| Is Discontinued By Manufacturer | No |
