WALFRONT Lithium Battery Pack Active Equalizer 5A Energy Transfer Balancer for Ternary Lithium and LiFePO4 Battery 4-24 Strings

Spec: Item Type: Lithium Battery Pack Active Equalizer Applicable Battery Types: For ternary lithium battery and lithium iron​ battery. Minimum Balanced Voltage: 15mV Power Supply: Battery self powered, or 5V 2A power supply. Low Voltage Automatic Shutdown: 3V per string. Self Powered and External Power Supply: Applicable Battery String: 4~24 Strings Maximum Balanced Current: 5A Cable Interface: 2.0, 2.54, 3.81 Balancing: Interface Parallel Energy Transfer Battery Balance State Power Consumption After Startup: 80mA, with 10mV voltage difference. How to Use: A. Starting: 1. When the current drop through the protection board gets to 70mV or above, the active equalizer automatically starts equalization. The actual current is related to the conduction internal resistance of the MOS transistor on the protection board. 2. Human intervention initiates active equilibrium. B. Balance Principle: High voltage energy is simultaneously transferred to low voltage parallel transmission to achieve battery voltage balance. Package List: 1 x Lithium Battery Pack Active Equalizer 2 x Terminal 1 x Pin Header 1 x Wire Harness Tied Together 1 x 1 x Connection Line 1 x User Manual

• Stable Working: Nano amorphous isolated fully symmetrical transformer, ensuring minimum pressure difference. Ultra low internal resistance MOS devices form an ultra low dynamic impedance inverter circuit, achieving high power balancing operation.
• Auto Balancing: Intelligent MCU chip master management, which can achieve automatic and autonomous balancing work. Automatically detect the minimum voltage of the battery, stop working when the battery has low energy, and protecting the battery from power loss.
• High in Safety: Equipped with overcurrent protection resistors at each input end of the string, ensuring safety. Also equipped with automatic voltage detection and analysis function, it is convenient to understand the battery balance situation.

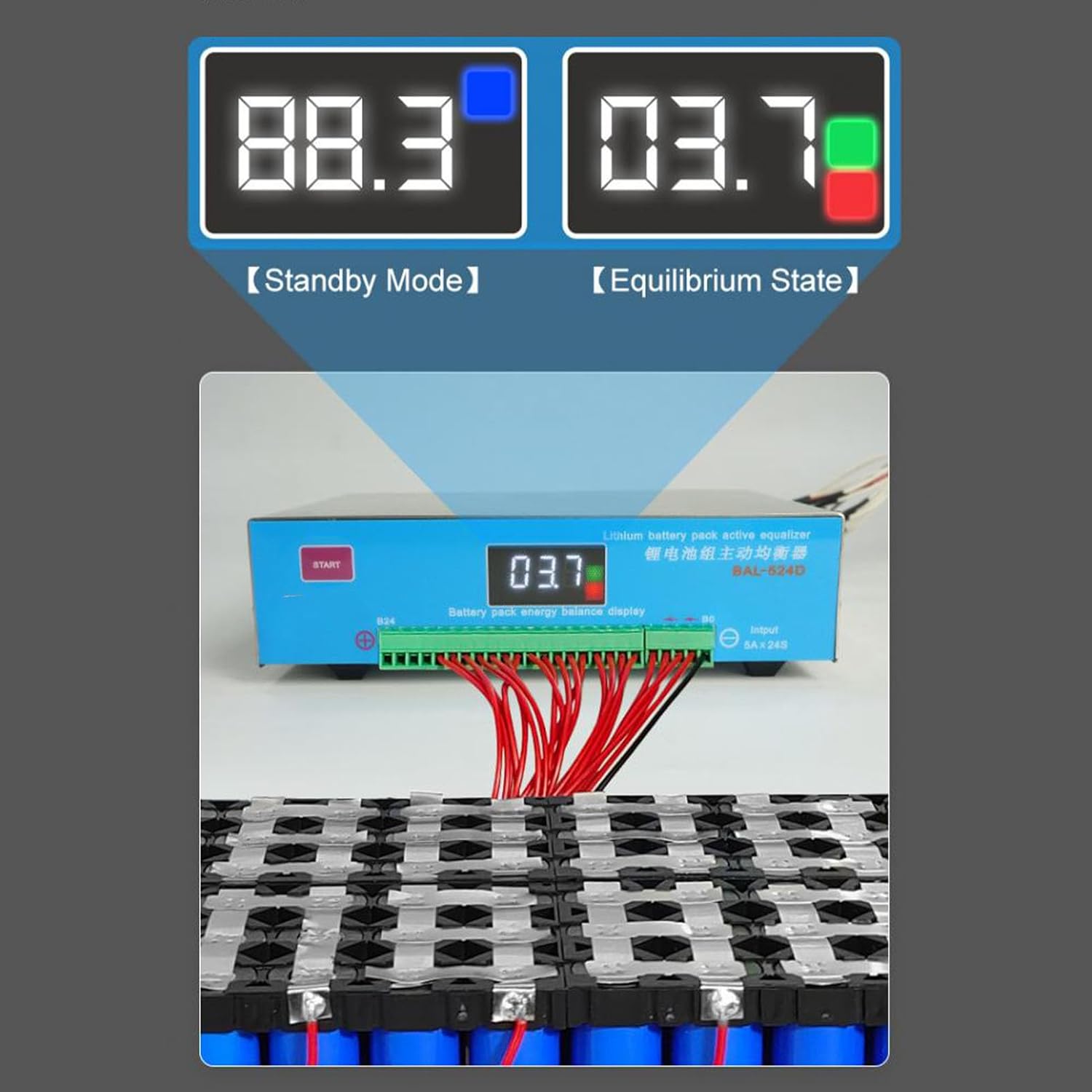

• Premium Design: Equipped with LED high definition digital display screen for clearer data observation. Design of inverter heat dissipation under extreme balance of high voltage difference.
• Good Protection: Add a small short circuit breaker device for over temperature and over current protection, which can control the sudden abnormal excessive current, break the circuit at over temperature, and protecting the battery pack from normal and continuous balance.
