Three-Channel Wireless High Voltage CT Turn Ratio Tester Three Channel Wireless High Voltage Transformation Ratio Meter with Primary Current 0.0A～800A Secondary Current 0.00mA～5A USB Interface

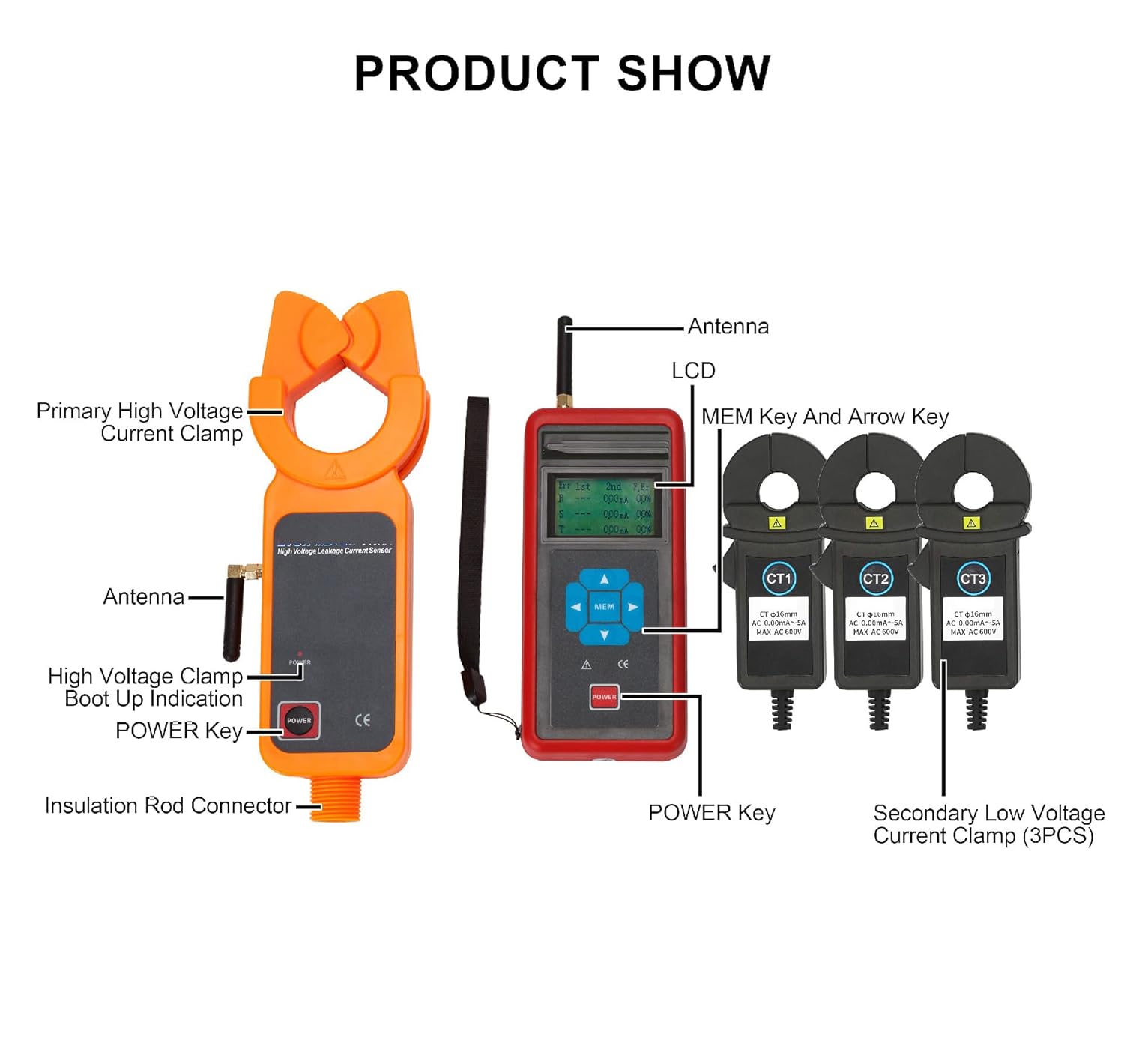

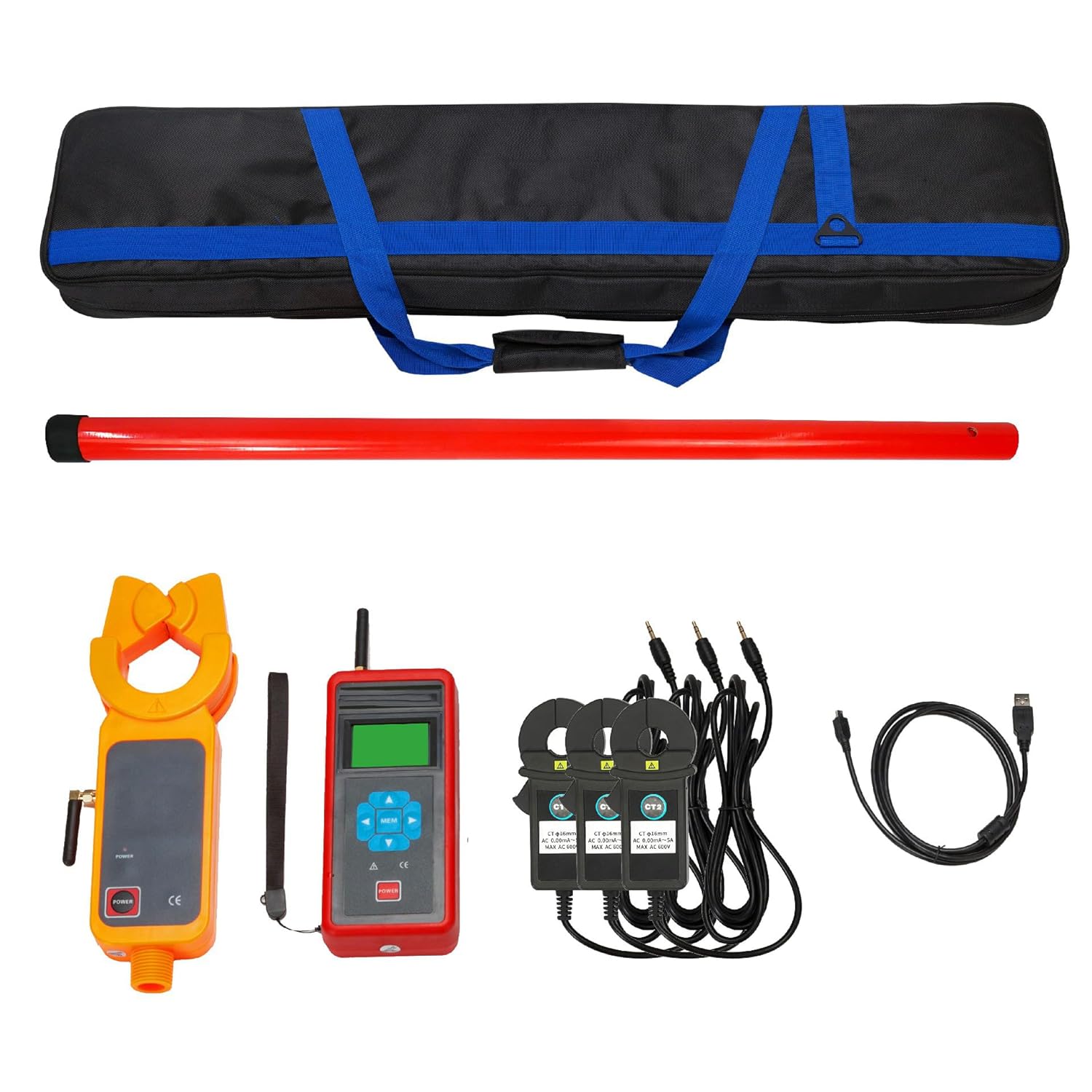

◆The high voltage current clamp and the host machine adopt wireless transmission, can penetrate the barrier of the partition wall, and the straight line transmission distance is 100 meters.◆IntroductionThree-Channel Wireless High Voltage CT Turn Ratio Tester, also known as transformer current variable ratio tester, transformer ratio difference tester, current transformer variable ratio tester, is used for primary current, secondary current size, variable ratio, phase difference, polarity judgment of current transformers below 35kV.The instrument uses 3 secondary low-voltage current pliers (diameter Φ16mm) to test the low-voltage circuit at the same time, which can directly determine the corresponding phase relationship between the high-voltage terminal and the low-voltage terminal, without multiple clamp tests.It is widely used in substations, power plants, power inspection departments, industrial and mining enterprises, testing stations, electrician maintenance departments for current detection, anti-theft and field electrician operations.Three-Channel Wireless High Voltage CT Turn Ratio Tester consists of primary current pliers (high-voltage detector), secondary current pliers (3 pcs), host, high-voltage insulating rod, monitoring software, communication line, etc., The high-voltage current pliers are made of high-performance permalloy, and the test accuracy is high.The high-voltage current clamp has a unique automatic plug-in structure. It can easily clamp or evacuate the wire under test by pressing or withdrawing the insulating rod. The operation is safe, time-saving and fast. The insulating rod is lightweight and has the characteristics of moisture-proof, high temperature resistance, impact resistance, bending resistance, and high insulation. The insulation level is 110kV.The instrument has a storage function, a USB communication interface, and the stored data can be uploaded to a computer for historical data reading, viewing, saving, printing, etc.Main Function: 1. Three secondary low-voltage current pliers are used to test the low-voltage circuit at the same time, which can directly determine the corresponding phase relationship between the high-voltage terminal and the low-voltage terminal, without multiple clamp tests.2. The innovative automatic plug-in and unplugging structure of the high-voltage current clamp can easily clamp or evacuate the wire under test by pressing or withdrawing the insulating rod, which is safe, time-saving and fast.3. The high-voltage current clamp adopts wireless transmission method, with a transmission distance of 100m.4. Storage function, storing 3000 sets of data.5. USB communication interface. Technical SpecificationsPower Supply:DC6V alkaline dry battery LR03 (1.5V AAAX4)(not included in the package.）Display Mode: LCD: 128dotsX64dots; backlight function, suitable for dim places；LCD Size: Display area: 44mmX27mmTest Method: Clamp CTPrimary Current Test: Range: 0.00A～800A; resolution: 0.01A; accuracy: ±0.5%FSSecondary Current Test: Range: 0.00mA～5A; resolution: 0.01mA; accuracy: ±0.5%FSTurn Ratio Measurement Range: 1～9999Turn Ratio Resolution: 0.1Primary Current Clamp Size: Clamp jaw size:Φ48mm; overall size: 255mmX84mmX39mmSecondary Current Clamp Size: Clamp jaw size:Φ16mm; overall size: 110mmX53mmX22mmShift Gears: Fully automatic gear shift Sampling Rate: 3 times/secondMemory: 3000 groups, press the left arrow key to keep the data and store it automatically (data will not be lost if the battery is powered down or replaced)Data Hold: Press the left arrow key to hold the data, the HOLD symbol is displayed, and then press the HOLD key to cancel the holdData Access: Press the right arrow key to enter the data access modeOverflow Display: Over-range overflow function: ”OL" symbol displayNo Signal Indication: Prompt “No signal” when the host does not receive the transmitted signalBattery Voltage: When the battery voltage is lower than 5.2V±0.3V, the low battery voltage symbol is displayed to remind the battery to be replaced.Primary Current Clamp Transmission Distance: Wireless transmission distance 100mSecond Current Clamp Connection Line Length: 2mHost Size: 78mmX165mmX42mmWeight: Receiver: about 302g (include battery);primary high voltage current clamp: about 363g (include battery)；Secondary low voltage current clamp: about 156g; total mass: about 6.14kg (include accessories)External Interference: Avoid extra-strong electromagnetic fields; avoid 433MHz and 315MHz interference at the same frequencyAutomatic Shutdown: After about 15 minutes of power-on, the meter will automatically turn offInsulating Rod Size: 4300mmInsulating Rod Withstand Voltage: 110kVInsulation Strength: Host and detector: AC1000V/rms (between shell and screw)Working Temperature & Humidity: -15℃～50℃; below 70%RHStorage Temperature & Humidity: -10℃～60℃; below 70%RH

• ◆(1)Current and variable ratio testing of the first and second circuits of high and low voltage current transformers, polarity and phase difference judgment
• ◆(2)Primary current range: 0.00A～800A
• ◆(3)Secondary current range: 0.00mA～5A
• ◆(4)Variable ratio measurement range: 1～9999
• ◆(5)Wireless transmission distance: 100m
• ◆(6)Memory: store 3000 sets of data
• ◆(7)USB communication interface
