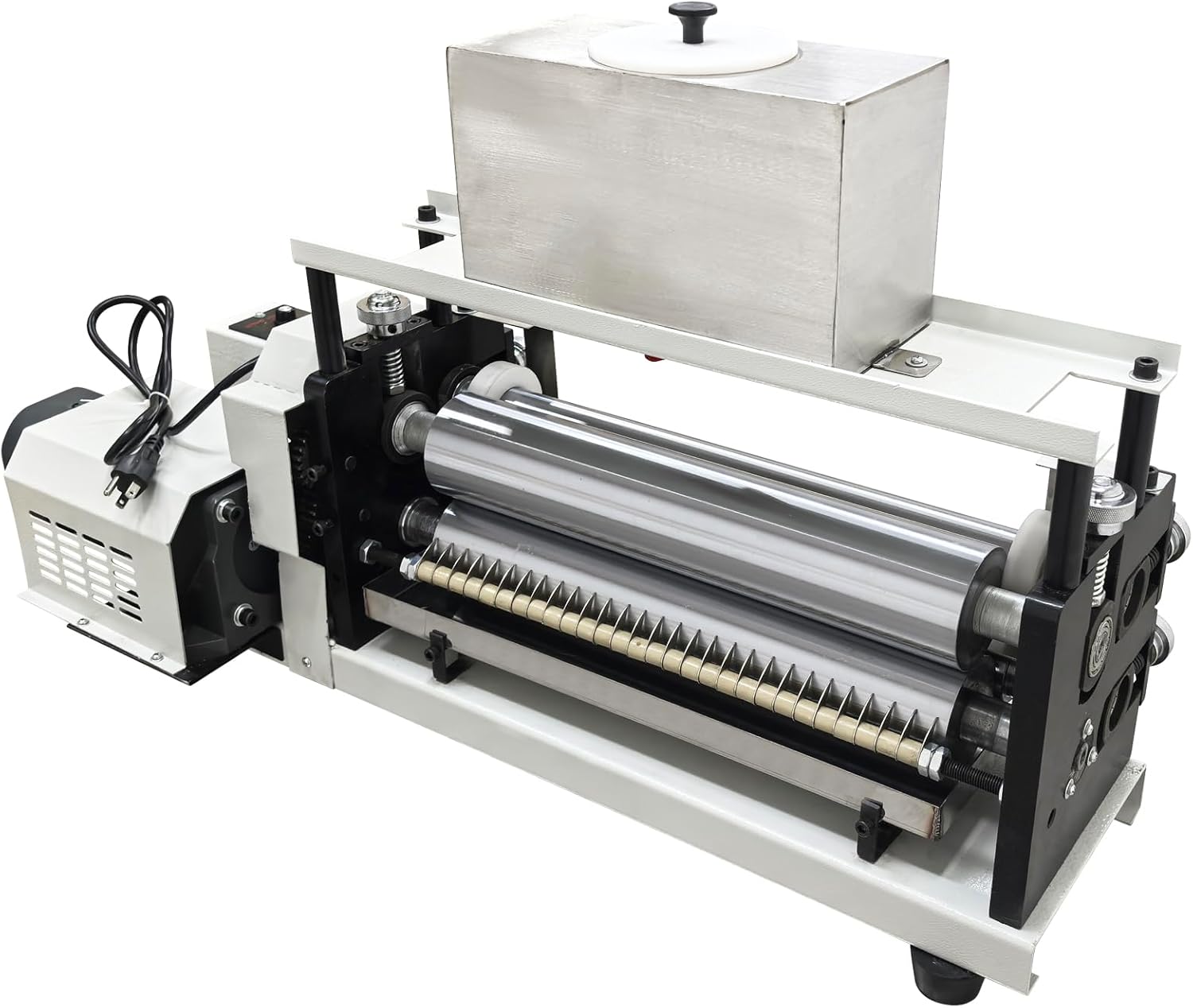

TECHTONGDA 15.35" Automatic Gluing Coating Machine for Paper & Leather, Steel Rollers Double-Sided Glue Coater with Adjustable Speed 0-16m/min and Rollers Gap, White Emulsion Coating Machine

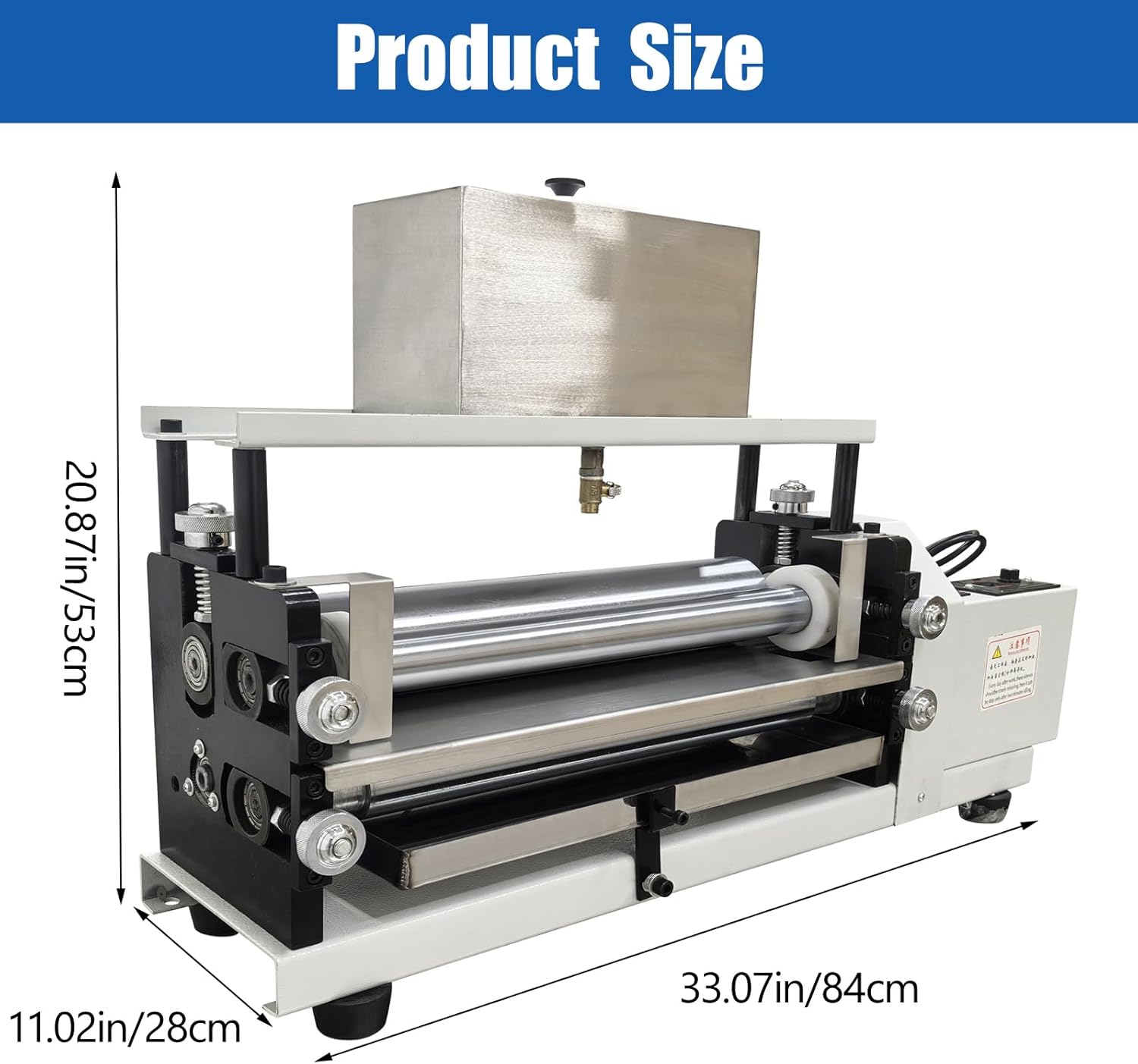

Product Overview The automatic double-sided gluing machine is equipped with high-quality steel rollers to achieve uniform gluing operation. The gluing machine has the advantages of uniform coating, gap adjustability, speed controllability, high working efficiency and so on. It can be widely applied to the industries of artware and model making, packaging, building decoration, shoe production, etc. Product Parameters Voltage: AC110V 60Hz Power: 200W Coating Speed: 0-16m/min Coating Width: 15.35" (390mm) Material Thickness: 0.004"-0.59" (0.1-15mm) Product Size: 33.07"×11.02"×20.87" (84×28×53cm) Net weight: About 56kg (123.46LBS) Item Number (120125): 1 x Automatic Double-sided Gluing Machine 110V

• Double-Sided Gluing Design: The design of the top glue box and bottom glue tray provides water-soluble glue from both the top and bottom ends, perfectly achieving double-sided gluing operation. The top glue tank features a large storage capacity, allowing for convenient adjustment via control valves to meet the demands of extended continuous operation.
• With Adjustable Speed: The automatic gluing machine is equipped with a speed controller, which can easily and accurately adjust the glue application speed from 0-16m/min. A 200W high-quality motor provides sufficient driving force for adhesive coating operations, ensuring high-precision control and smooth operation.

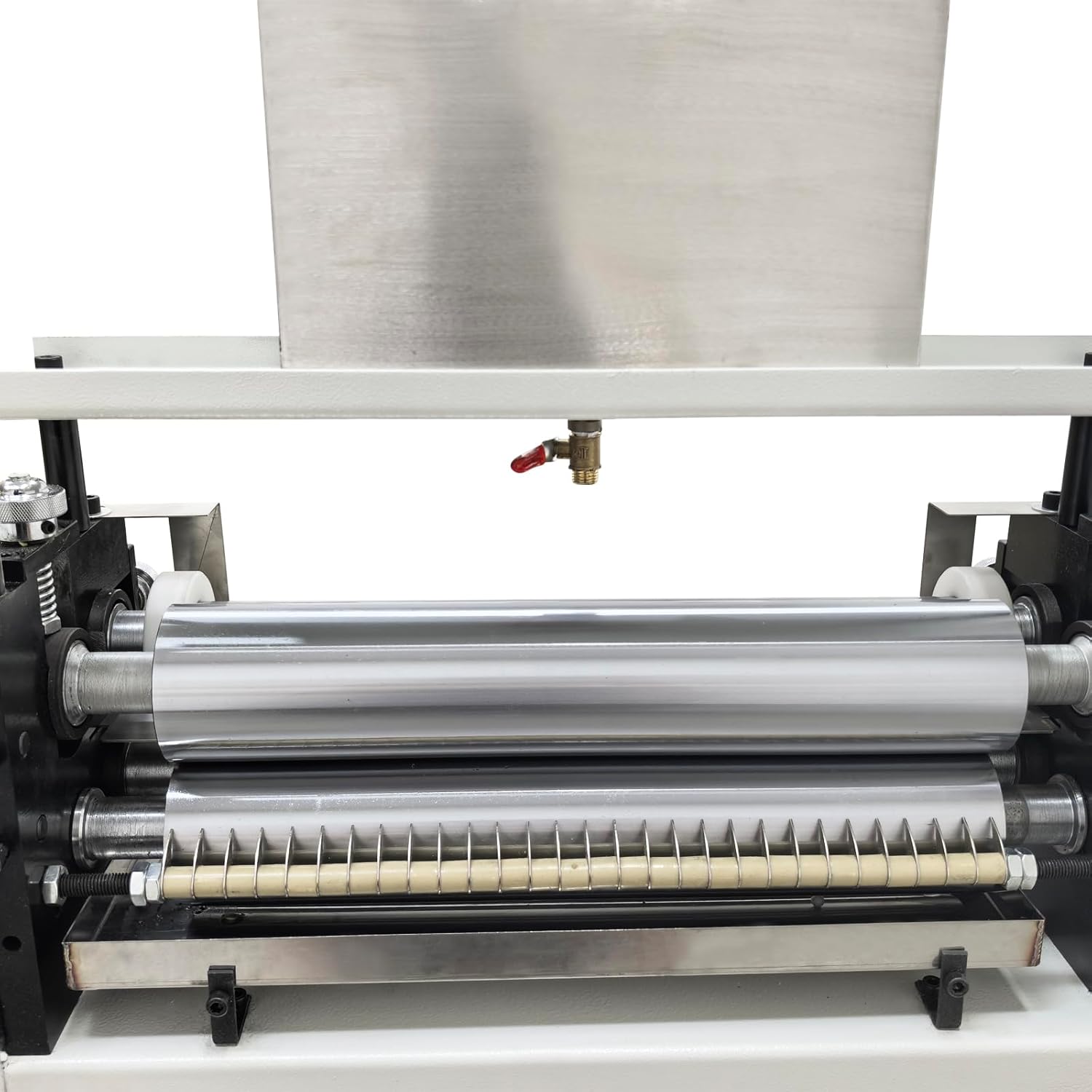

• Steel Rollers: The automatic glue coating machine adopts steel rollers for coating, which has the characteristics of high structural strength, good coating uniformity, and long service life. The coating width can be 15.35in/390cm. It is suitable for gluing various materials such as paper and leather in different industrial fields.
• Adjust The Gap: The body is equipped with four adjustment knobs for adjusting the gap between the rollers, which can flexibly adapt to materials of different thicknesses. When the knobs are adjusted properly, glue can be closely attached to the soft roller and then adhere to different materials along with relative rotation of the rollers.
• Wide Application: The white emulsion coater is an efficient and professional equipment for gluinging the double sides of paper products, leather, thin workpieces and other objects with water-soluble glue evenly simultaneously. It can be widely applied to the industries of packaging, building decoration, shoe production, etc.
