Tapered Ball Nose End Mills, 1/4 Inch Shank, 1/16" Tip Diameter, 5.4 Degree, YK20 Carbide 2 Flute CNC Router Bit, Professional Woodworking Engraving Tool for 2D/3D Milling Engraving Carving

Parts List:1 × Tapered Ball Nose End MillsSpecifications:This tapered ball nose end mill uses a unique nano blue coating technology to make it suitable for CNC processing needs of 1/4 inch clusters. The special coating technology ensures that the cutting sharpness can be maintained for a long time in the processing of various materials. The ball end design can present a smooth surface transition to meet the most stringent fine processing requirements.Features:Coated Design: Tests have shown that compared with ordinary uncoated tools, its service life can be extended by more than 2.5 times, while ensuring that the cutting surface is smooth.Product Name: Tapered Ball Nose End MillsSize: 1/4×1/16×1×2-1/2 InchMaterial: YK20 CarbideColor: BlueNote:1. There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color.2. Please allow slight dimension differences due to manual measurement.

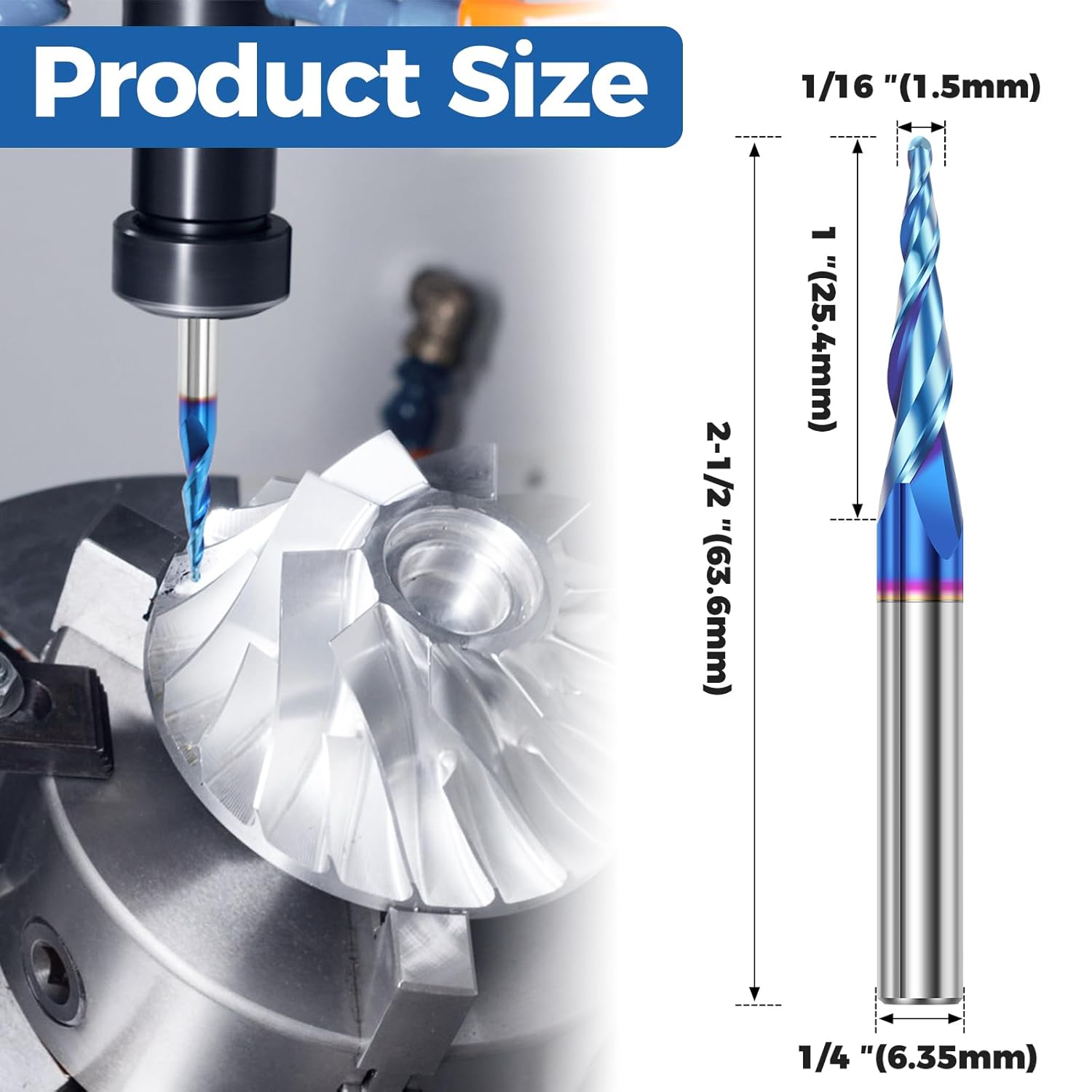

• Size Details: This tapered ball nose end mill has 2 flutes, with 1/16 inch (about 1.6 mm) tip diameter design and 1/32 inch (about 0.8 mm) radius ball head. The blade has a 5.4° single side angle, 1 inch (25.4 mm) cutting length, 1/4 inch (6.35 mm) shank diameter, and a total length of 2-1/2 inches (63.5 mm)
• Enduring Material: This tool is made of YK20 carbide and the surface of the blade is coated with blue nano coating, which has high hardness and can withstand extreme processing temperatures, effectively maintaining lubricity of the cutting edge

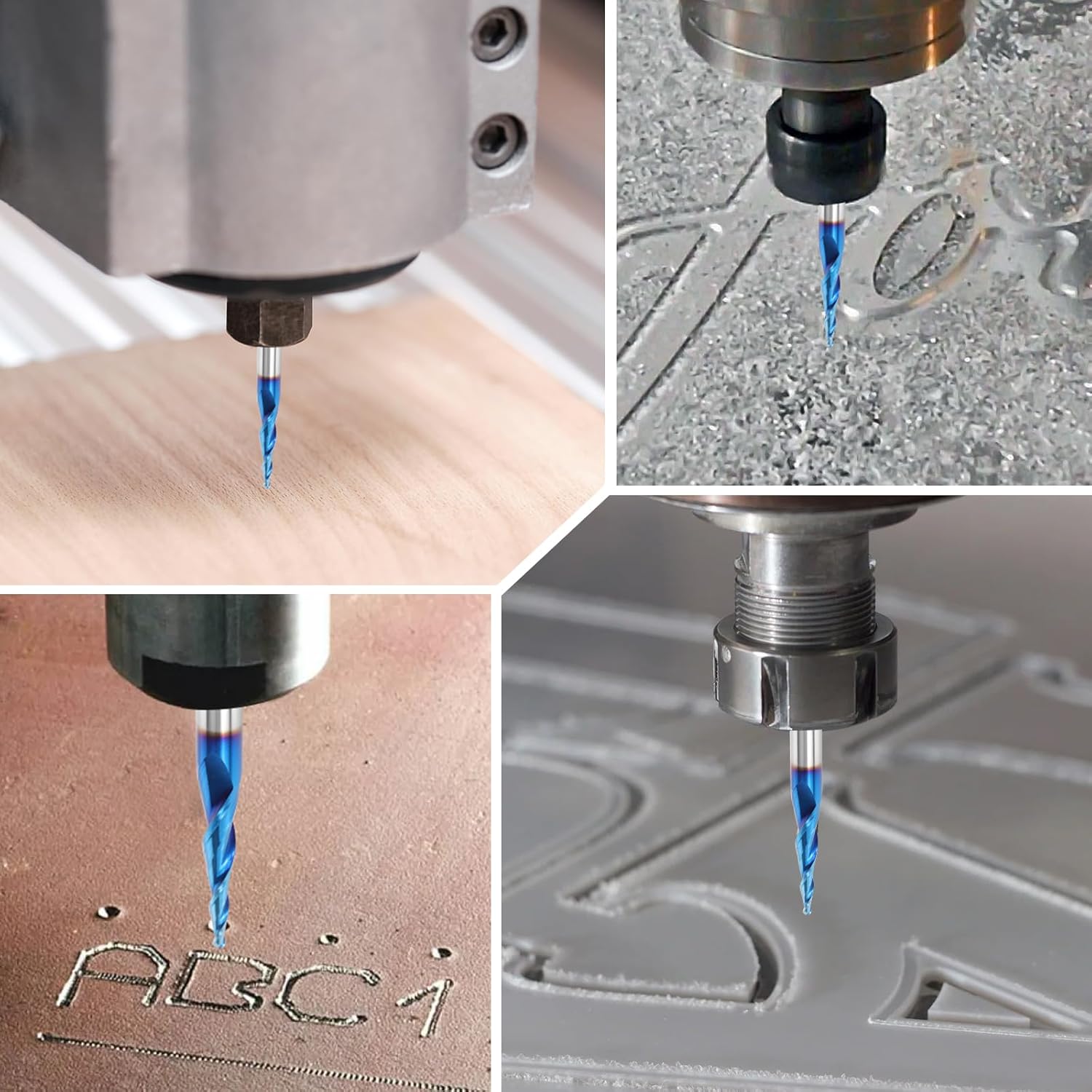

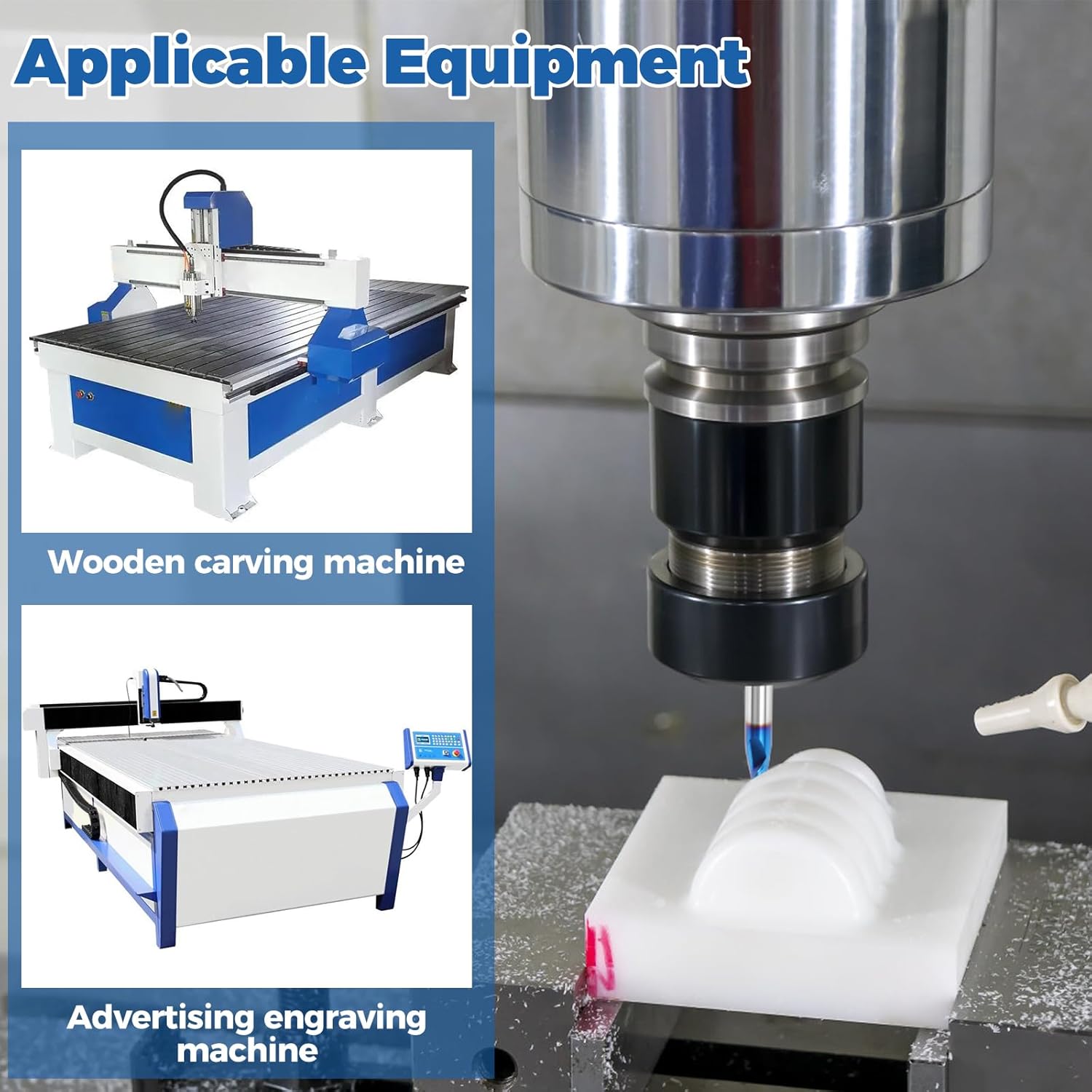

• Suitable for CNC Engraving Machine: The unique ball head end shape makes it an ideal choice for CNC engraving machines, especially for 3D stereo engraving operating. Whether it is woodworking fine carving, metal mold manufacturing, or complex 2D/3D relief creation, accurate details can be achieved
• Widely Uses: Suitable for common woods such as plywood, oak, MDF medium-density fiberboard. It can also handle the processing needs of metal materials such as carbon steel, soft alloy steel, tool steel, cast iron and aluminum alloy
• Ideal Choice: Each blade undergoes strict quality inspection. The optimized geometric angle design combined with premium materials can provide extraordinary cutting efficiency and surface dealing quality, ideal choice for demanding industrial production and precision processing fields
