Surge Protective Arrester Device Rail Installation 2P DC SPD 1000V 600V Photovoltaic Lightning Protector House Surge Protective Low-Voltage Arrester Device 40KA (DC 600V)

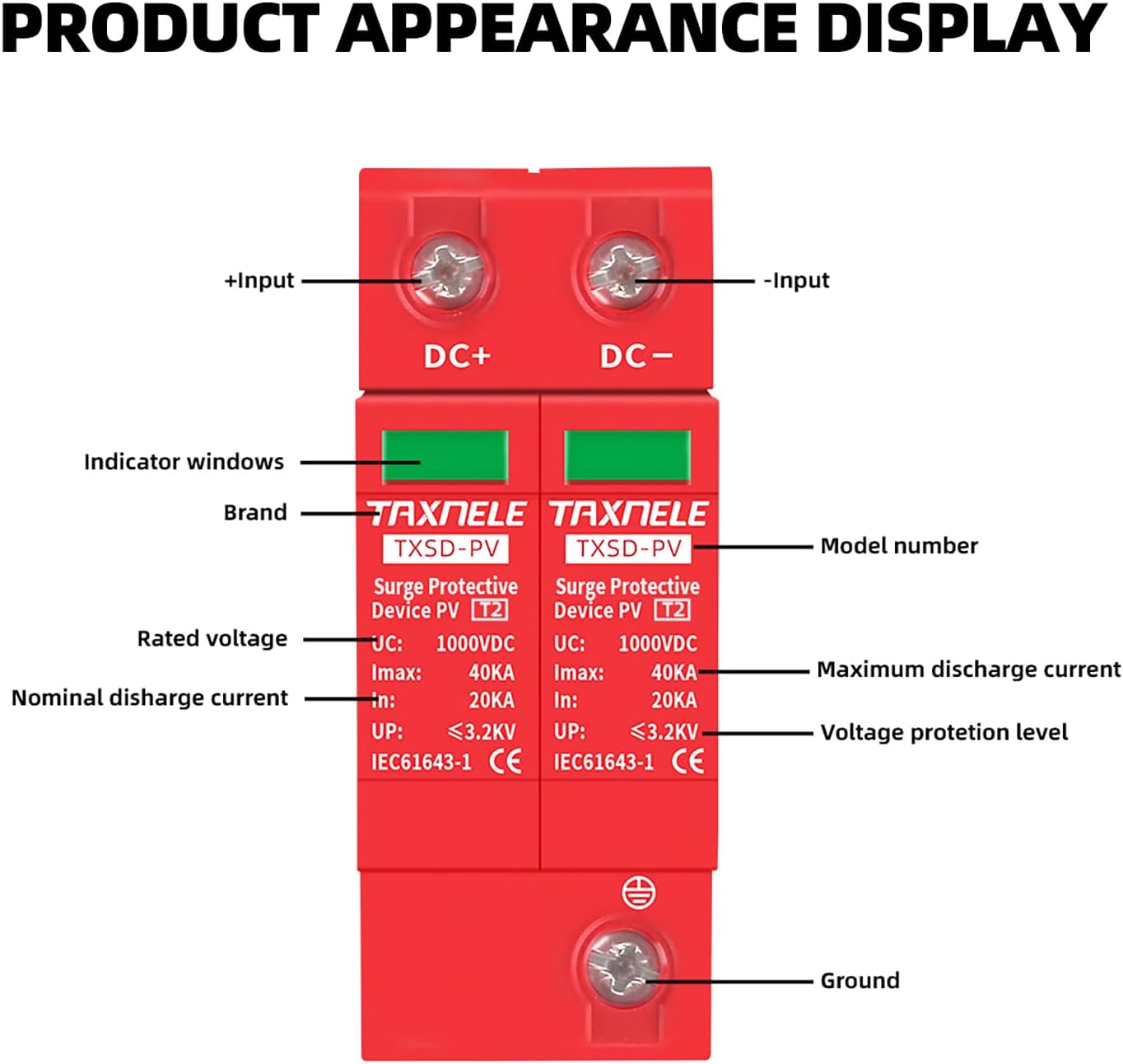

Its installed location are recommended at both ends of the dc power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. Specification: Item Type: Surge Protective Devices Product Material: PC Product Model: TXSD-PV Maximum Discharge Current: 40kA Nominal Discharge Current: 20kA Voltage Protection Level: 3.5kV Level: 2P Installation Method: Rail installation Product dimension: 90×49×36mm / 3.5×1.9×1.4in Weight: 260g/9.2oz

• 【SURGE PROTECTION DEVICE】Let you use electricity in thunderstorm weather more at ease, effective distribution of current energy, to prevent damage to electrical equipment because of lightning shock.
• 【HIGH SENSITIVITY PROTECTION】Fast Response＜25NS When a lightning strike occurs, the voltage needs to be quickly unloaded within 25 nanosecondsFaster and more effective protection of household appliances in thunderstorm days
• 【FLAME RETARDANT SHELL】Indoor surge protection low-voltage lightning arrester device shell made of PC flame retardant materials, stable and high temperature resistance, the use of safer and more secure.
• 【SIMPLE INSTALLATION】Low-voltage lightning arrester using 2P rail installation, installation is very simple. Installation using the standard 35MM rail installation, and distribution boxes with the use of circuit breakers.
• 【WIDE APPLICATION】 Protect against lightning surge voltages in solar system (photovoltaic power supply system).Widely used in homes, office buildings, commercial buildings, schools, factory workshops and other places.
