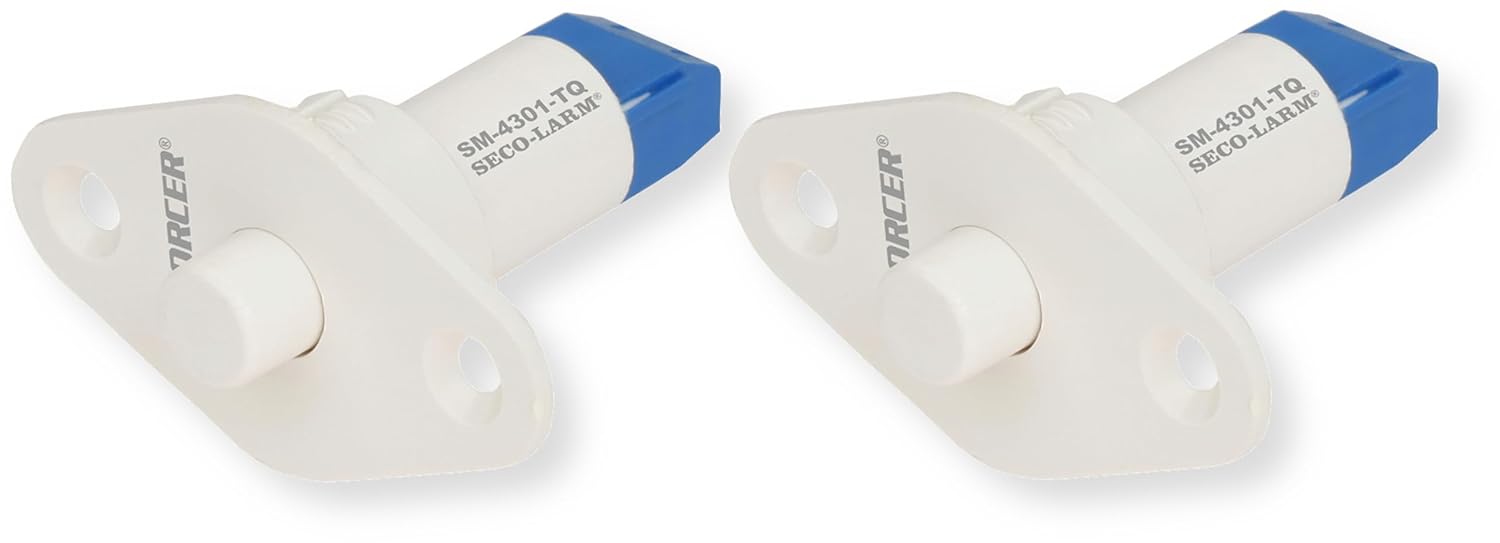

Seco-Larm SM-4301-TQ/W Pack of 4 Enforcer Recessed-Mount Magnetic Contacts, White; Plunger Type; 1/4 Inch Travel; Iridium Reed; Slim Security Switch; for Protecting Sliding Doors and Windows
Product details
| Management number | 218096334 | Release Date | 2026/05/03 | List Price | $9.90 | Model Number | 218096334 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Seco-Larm SM-4301-TQ/W Pack of 4 Enforcer Recessed-Mount Magnetic Contacts, White; Plunger Type; 1/4 Inch Travel; Iridium Reed; Slim Security Switch; For Protecting Sliding Doors and WindowsThe Seco-Larm SM-4301-TQ/W is a recessed-mount, plunger-type magnetic contact switch engineered for tight installation areas like sliding doors and windows. It uses a durable ABS housing, iridium-plated reed switch, and a strong rare-earth magnet to provide dependable, long-lasting security. Ideal for closed-loop alarm systems, this compact contact delivers performance without taking up surface space.Key Features:Pack of 4 magnetic contactsRecessed-mount design for slim profile installationsPlunger-type activation with 1/4" (6 mm) travelIridium-plated SPST reed switch for long lifeScrew terminal wiring for strong, reliable connectionsHigh-impact ABS housing resists wearRare-earth magnet provides strong contact forceClosed-loop (normally closed) circuit compatibilityComes with spacer and screws for flexible mounting Specifications:Model: SM-4301-TQ/WLoop type: Closed loopContact configuration: N.C., SPSTPlunger travel: 1/4" (6 mm)Material: High-impact ABS plasticContacts: Iridium-platedContact rating: 0.1 A @ 100 VDC, 1.0 A @ 10 VDC, 10 WOperating temperature: -15° to 160°F (-25° to 70°C)Switch cycles: 50 millionMagnet: Rare-earth neodymiumIncludes spacer and screwsDimensions: 1.46 x 0.75 x 0.24 inches
- Space-saving recessed design: ideal for sliding doors or windows with limited surface space
- 1/4" (6 mm) plunger travel: allows compact integration without compromising performance
- Iridium-plated reed switch: built for durability and high power handling
- Screw terminal connections: ensures secure, reliable wiring to your security panel
- High-impact ABS housing: durable construction built to last in demanding environments
- Rare-earth magnet included: delivers strong, consistent magnetic force for reliable contact
- Closed-loop operation: perfect for constant monitoring in alarm systems
- Plunger-type design: provides tactile actuation, reducing false alarms
| UPC | 767637325202 |
|---|---|
| Color | White |
| Model | SM-4301-TQ/W |
| Brand Name | Seco-Larm |
| Unit Count | 1.0 Count |
| Part Number | SM-4301-TQ/W |
| Switch Type | Reed |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | Seco-Larm |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Surface Mount |
| Connector Type | Reed |
| Current Rating | 1 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 1.46 x 0.75 x 0.24 inches |
| Number of Items | 4 |
| Operating Voltage | 10 Volts |
| Included Components | 4 Magnetic Contacts |
| Number of Positions | 1 |
| Upper Temperature Rating | 160 Degrees Fahrenheit |
