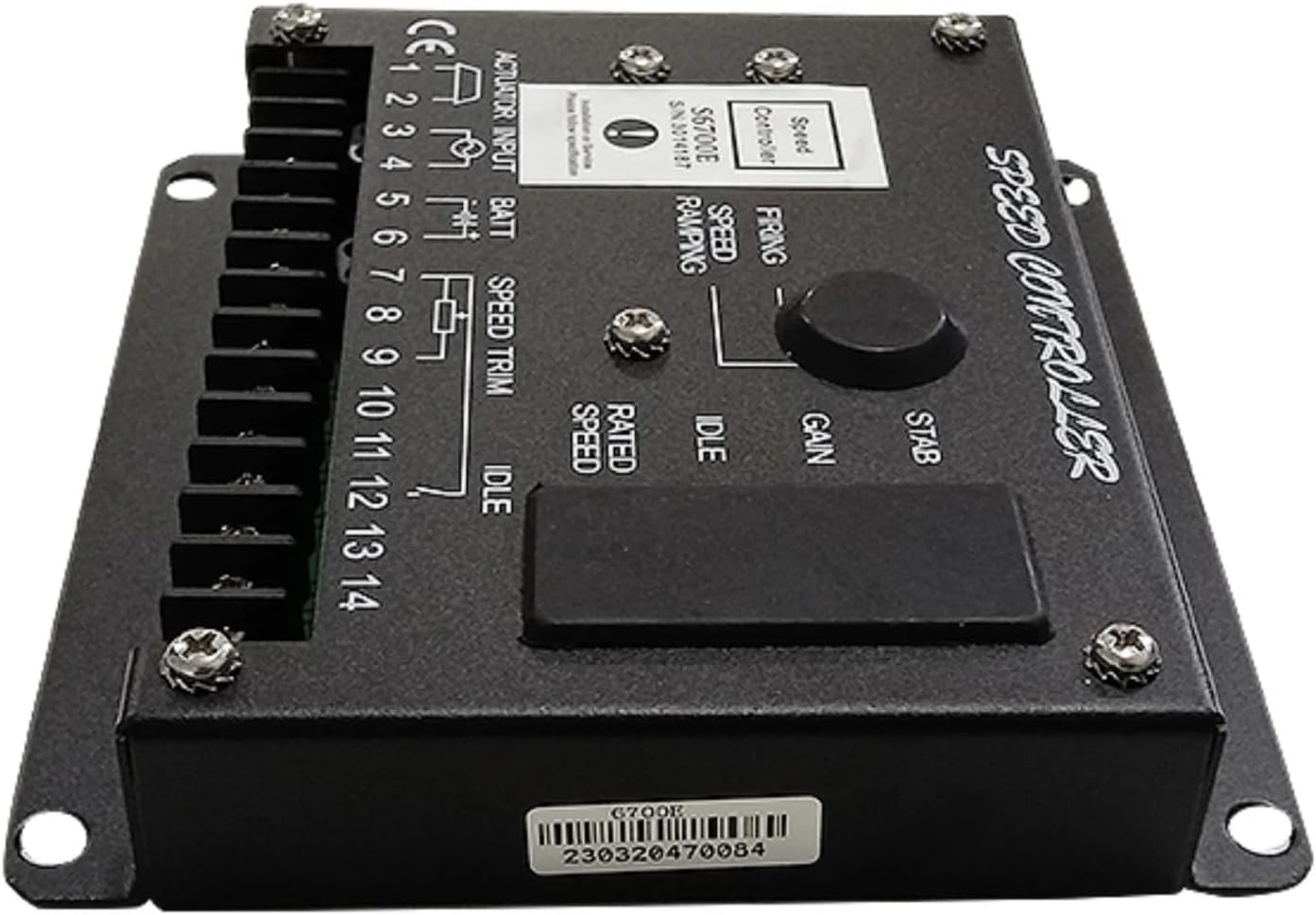

S6700H Diesel Generator Speed Control Board S6700E
Product details
| Management number | 212611124 | Release Date | 2026/04/06 | List Price | $52.84 | Model Number | 212611124 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electronic Engine ControlS6700E Diesel Generator Speed Control BoardDESCRIPTION:The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.Power reverse connection protectionActuator default protectionSpeed signal Lose protectionOver-speed & External high Level input AlamFeatureEnvironmentalAmbient operating temperature range 40 ~ 85°CRelative humidity: 95%InputPowerSupply:24VDCActuator current range: 2.5-10A(continuous)Speed sensor signal: 1-20VCharacteristicsSpeed fine adjustment range:±100%r / minFrequency fluctuation: ±0.25%Steady speed droop: 0~3% (variable)Temperature drift:±1%(maximum)Warm tips:1. This product is Chinese ownfactory productionits functioncompitable with one.
- Electronic Engine Control
| Model | JZRYQJGJ |
|---|---|
| Brand Name | JZRYQJGJ |
| Part Number | JZRYQJGJ |
| Contact Type | Normally Closed |
| Manufacturer | JZRYQJGJ |
| Mounting Type | Chassis Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Contact Material | Aluminum |
| Specification Met | UL |
| Contact Current Rating | 1 Amps |
