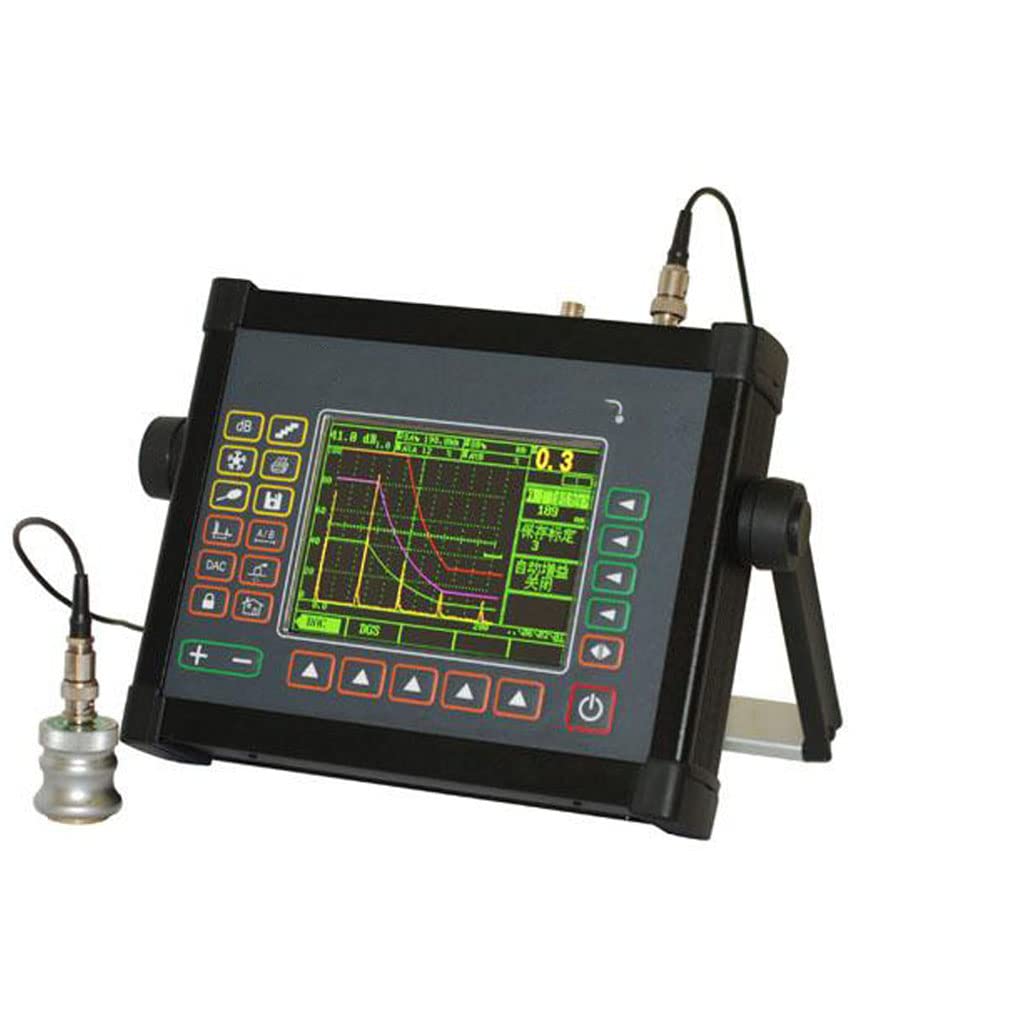

Portable Digital Ultrasonic Flaw Detector with 0.01mm Resolution 1.0~12000mm Range 500~20000m/s Velocity 3 A-scan Waveform Modes Echo Coded
$2,581.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by seto.az
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 211159033 | Release Date | 2026/04/04 | List Price | $1,032.40 | Model Number | 211159033 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ★Gate /measurement /alarming------Gate:A/B separated gates Result of Measurement:5 testing display sections including one main display section used to magnifying display ,can choose measurement content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB Curve surface correction:Correct the measurement value of curve surface according to angle of probe , thickness and diameter of workpiece Alarm
- ★Data storage and documentation----Channel parameters:10 A-scan wave:600 Thickness value:6000,linear Waveform video:10minutus Reference wave:4 . Input/Output -------Probe connections:LEMO/BNC Coder input:B-scan coding input IO output:RF output Communication:RS232/USB. Region---RTC:Real time date and time display Language:Chinese ,English unit:mm/inch .Power ------Power adapter:Input 100~240V/50~60Hz output 9VDC/4A
- ★Equivalent curve------DAC curve:Recording 30 demarcation points ,4 estimation curve whose gain can be adjusted under consideration of material attenuation and surface compensation ,able of increasing or editing the information of demarcation points DGS curve:3 reference types of big flat-bottomed hole / flat-bottomed hole / side drilled hole, under consideration of reference attenuation, material attenuation and surface compensation and AMPL CORRECT ; evaluation of equivalent sizing and
- ★Advanced------B-scan:two scan modes :thickness / outline ;gray /color palette setting Color Legs:2 color coded modes: coordinates and echoes curve freezing modes:all /peak std/ compare /envelope/delayed envelope A-Scan waveform detecting indication sign:Indicate the sound range and amplitude of measuring position of waveform AWS D1.1/D1.5:Having the function Curve surface correction:Correct the measurement value of curve surface according to angle of probe , thickness and diameter

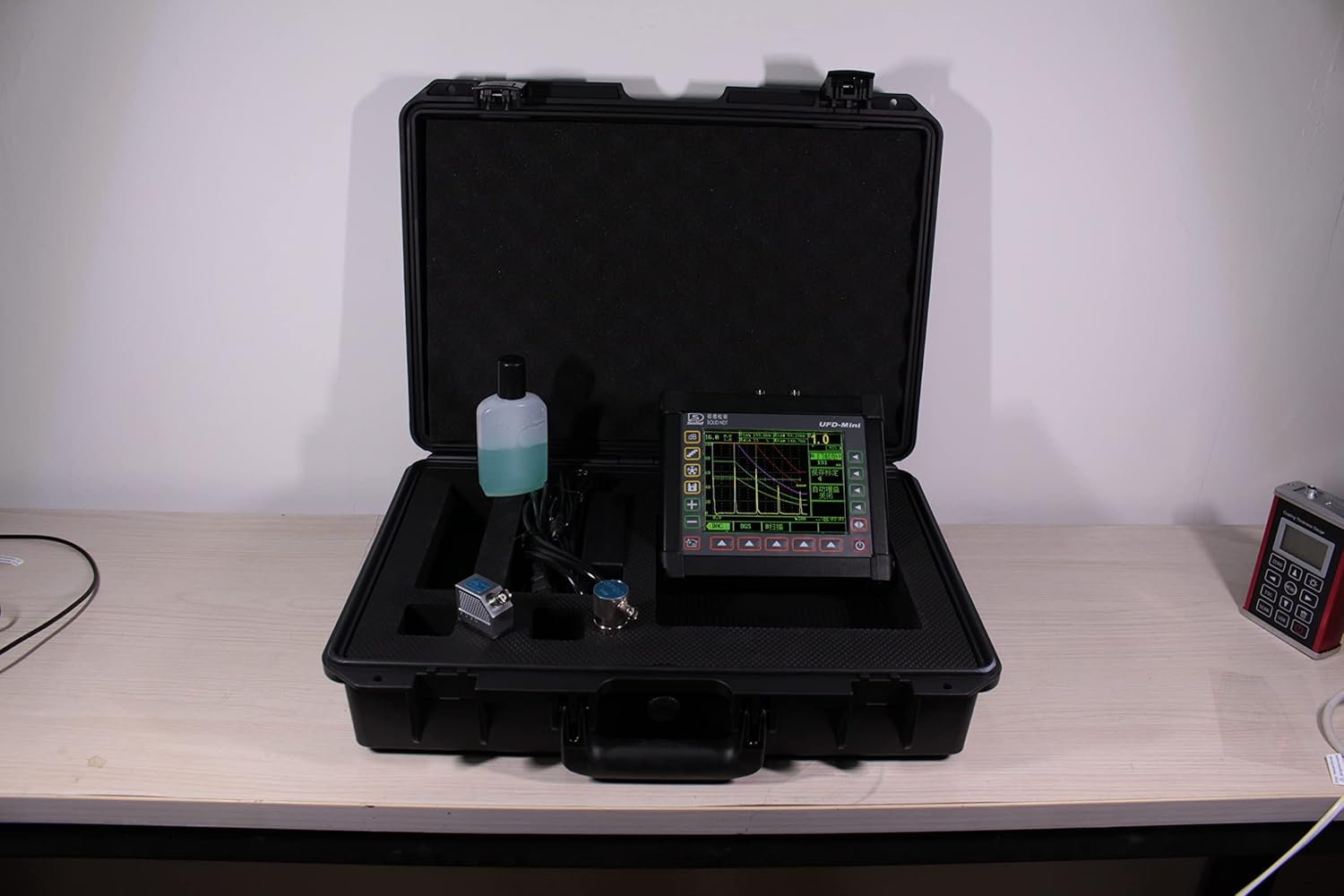

- ★Standard -----Main unite :1 Straight probe :1 Angle probe:1 Cable:2 Power adaptor :1 Battery pack (not included):1 Operating manual :1 Carrying case :1 Couplant:1 bottle .
| UPC | 665059388587 |
|---|---|
| Color | Black |
| Brand Name | VTSYIQI |
| Item Weight | 2.2 Kilograms |
| Manufacturer | VTSYIQI |
| Power Source | Battery Powered |
| Upper Temperature Rating | 60 Degrees Celsius |
