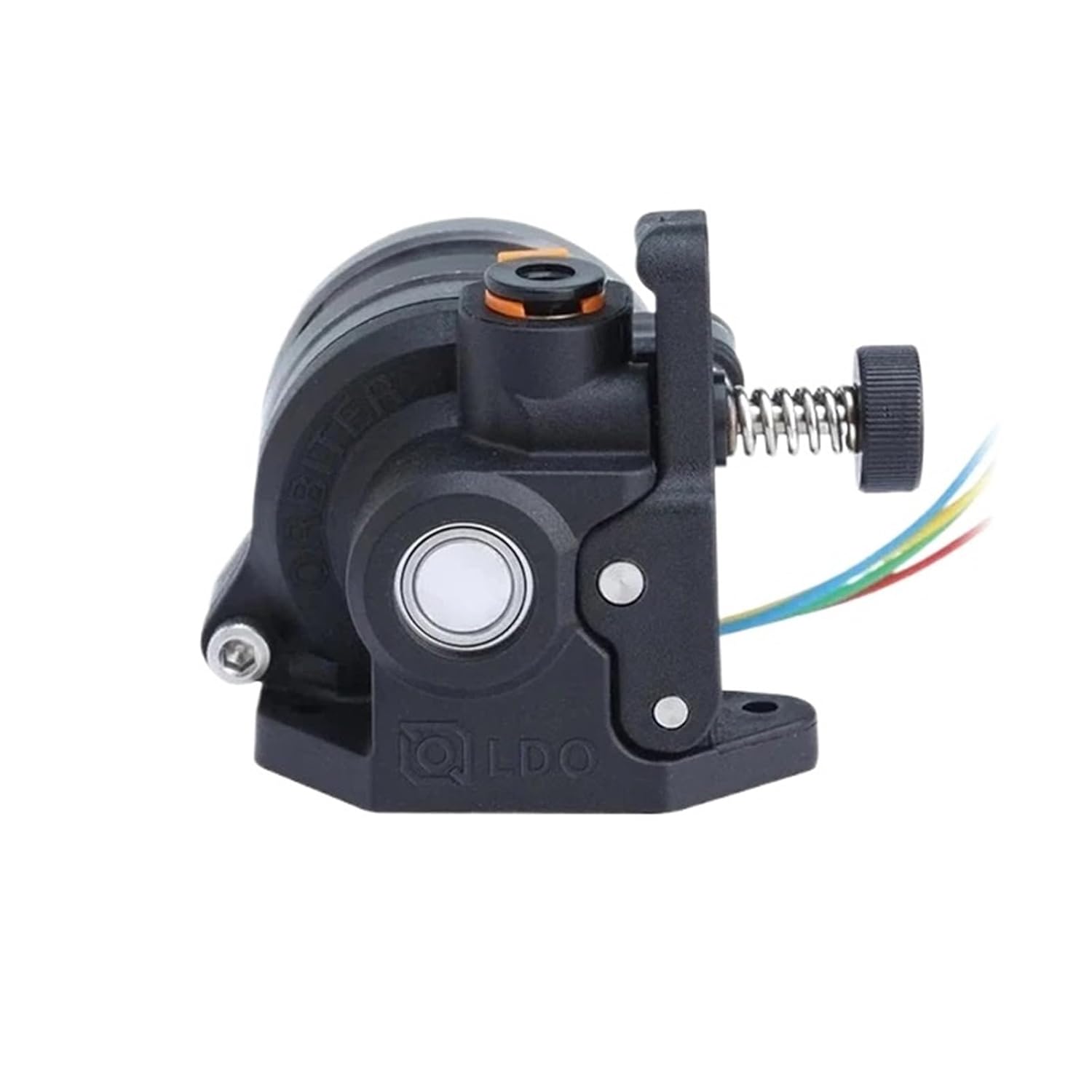

Orbiter V2 Filament Sensor V3.0 Compatible with Orbiter V1.5 V1.0 and Orbiter V2.0 Extruder 3D Printer for DDE(V2.0 Sensor)

Features:Filament Runout sensingFilament auto loadingButton for filament unloadCompatible:*Set1:Only Compatible with Orbiter v2.0*Set2:Compatible with Orbiter v1.0, v1.5 and v2.0What's in the box:set1:Orbiter Filament Sensor x1OS2 Nylon SLS Printing(only compatible with orbiter v2.0 extruder) x1SS304 M3 Nut x2SS304 M3*20 Screws x2SS304 M3 Washer x4SS304 D6 Ball x2Wiring harnes x1set2:Orbiter Filament Sensor x1SS304 D6 Ball x2SS304 M3*18 Screws x2Wiring harnes x1Print the sensor housing out of ABS, ASA or some other filament with similar temperature deflection property.The light guide shall be printed out of a transparent filament like HDGlass.The sensor housing shall be printed with support, light guide does not require any support. Suggested layer height is 0.2mm.You need to change the stock M3 screws of the Orbiter to button head M3 L=20mm (low profile screw head, max 2mm space on the Orbiter v1.5. The M3 with 15mm length and socket head will not fit anymore). On v1.5 It's a bit tricky to drive in the screw near the latch in, but it's not impossible (use a big Thor hammer and some brute force ).Assembly steps:1. Push the 6mm ball inside the housing,2. Slide the electronics inside the housing;3. Assemble the sensor on top of the Extruder.

• Print the sensor housing out of ABS, ASA or some other filament with similar temperature deflection property.
• The light guide shall be printed out of a transparent filament like HDGlass.
• The sensor housing shall be printed with support, light guide does not require any support. Suggested layer height is 0.2mm.
• You need to change the stock M3 screws of the Orbiter to button head M3 L=20mm (low profile screw head, max 2mm space on the Orbiter v1.5. The M3 with 15mm length and socket head will not fit anymore).
• On v1.5 It's a bit tricky to drive in the screw near the latch in, but it's not impossible (use a big Thor hammer and some brute force ).
