Optical Fiber Tester 1310/1550nm, WANLUTECH OTDR Tester 5.4 inches Touchscreen Support Event Map VFL OPM LS(Light Source) OLT (Optical Loss Test) Functions RJ45 Cable Tester Network Tools WiFi
$379.89
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by seto.az
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 211306785 | Release Date | 2026/04/04 | List Price | $151.96 | Model Number | 211306785 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [ Singlemode OTDR Fiber Optic Tester ] OTDR test: wavelength 1310nm/1550nm, dynamic range 28dB/26dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results (PLEASE NOTE: this 1310nm/1550nm model does not support testing live fiber)
- [ OPM VFL LS OLS ] WANLUTECH MOT-65 combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm,measurement range -70~+10 dBm); VFL: it is used to detect fiber for breakage, cracking, bending and other faults; LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)
- [ Event Map & Data Storage ] Visualise the results of fibre optic link inspections. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. (Event Blind Zone ≤1.6m, Attenuation Blind Zone≤8m.) Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. SOR standard file format PDF/EXCEL

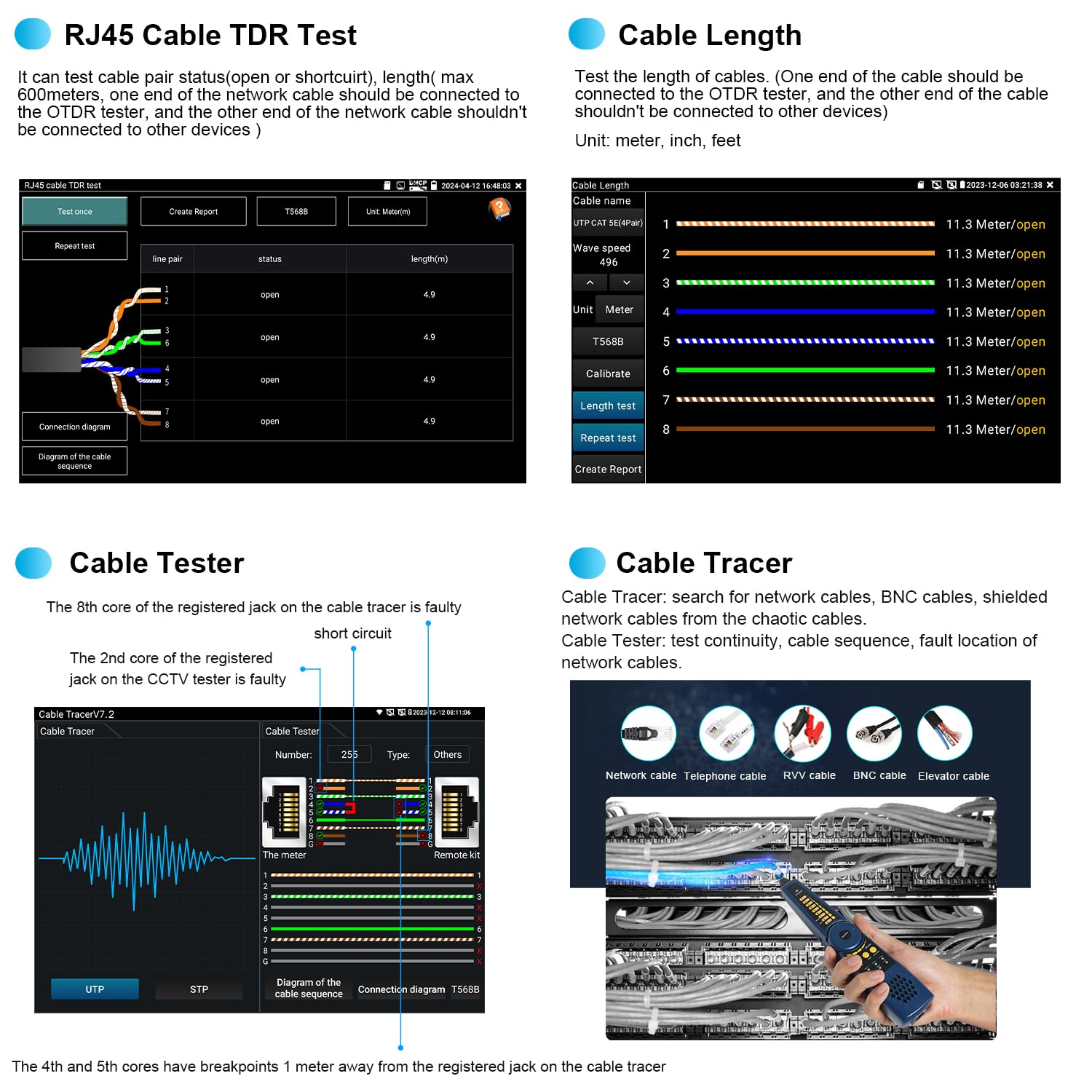

- [ Cable Tester & Network Test Tools ] Digital Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 CABLE TDR Test: it can test cable pair status(open or shortcuirt), length( max 600 meters ); UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Network Test: Ping test, IP scan, FTP file management, PPPOE, Port flashing, LLDP, Link monitor,etc
- [ Multifunction Fiber Tester ] 5.4 inches IPS touchscreen; Connector: 1*SC/UPC, 1*FC/UPC, 1*ST/UPC, 1*LC/UPC adapter, 1*FC male-FC female adapter, 1*FC male-SC female adapter, 1*FC(male)- LC(female) adapter, 1*SC/UPC(Male)-SC/APC(Female) adapter; 1*Patch Cord(FC/UPC-FC/APC). Built-in 7.4V 5200mAh battery, one Gigabit Ethernet port, 10/100/1000Mbps adaptive. Built in 2.4G WIFI, speeds150M, support WiFi analyzer,creat wifi hotspot; PoE Detection (measurement POE switch or PSE power supply voltage and cable connection status); power input:DC12V/1A, power output:DC5V/2A
- [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
| Color | orange+black |
|---|---|
| Model | MOT-65 |
| Brand Name | WANLUTECH |
| Style Name | MOT-65 1310/1550nm 28/26dB |
| Manufacturer | GUANGZHOU WANGLU TECHNOLOGY CO.,LTD |
| Power Source | Battery Powered |
| Included Components | OTDR MOT-65+ tool bag +OTDR test report +accessories |
| Minimum Operating Voltage | 12 Volts (DC) |
