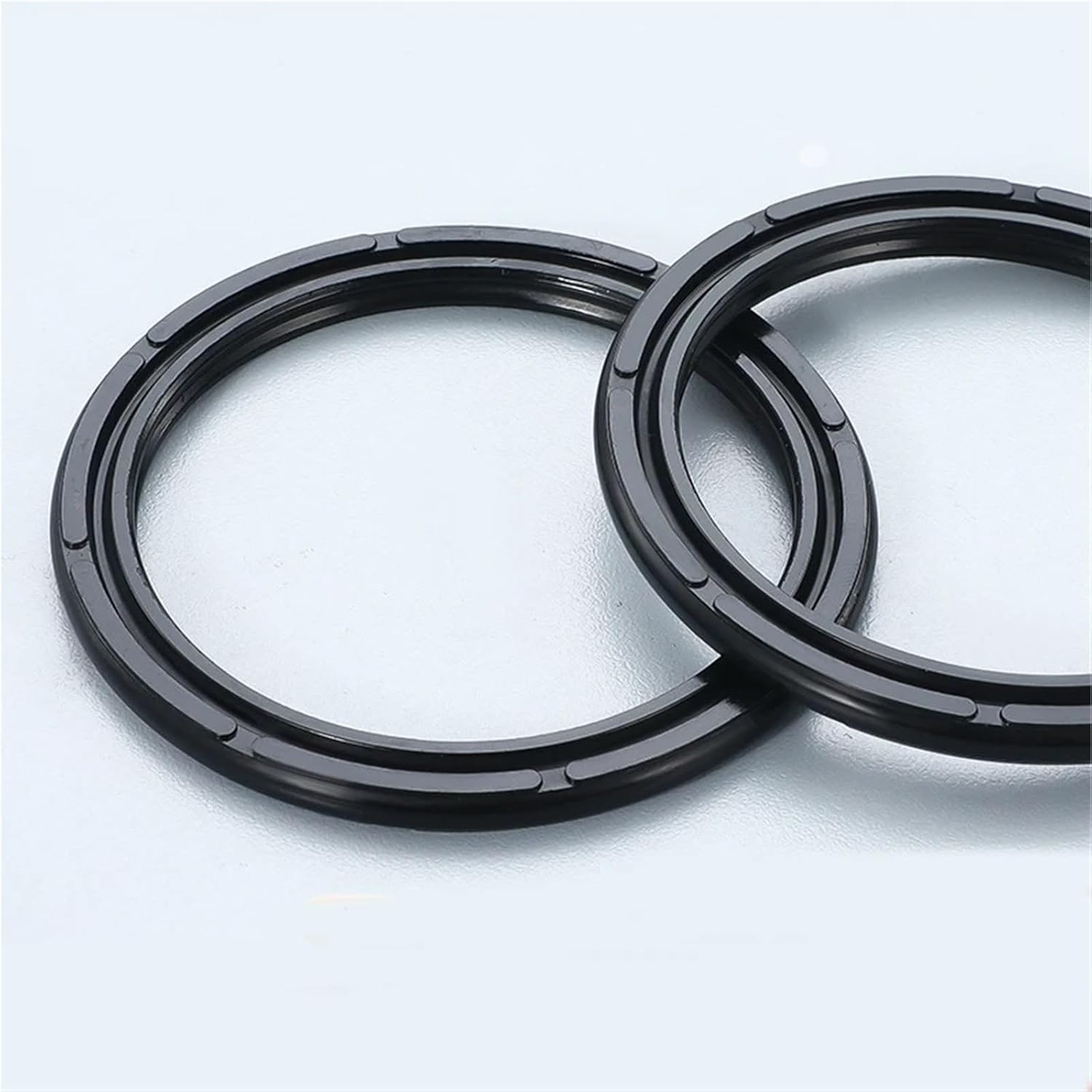

NBR SC Cylinder Seal, COP Type Bidirectional Piston Sealing Ring, Pneumatic, Air Seal, Cylinder Wear-Resistant Rubber Pad(22x14x3.5(5pcs))

Pump SealsProduct InformationModel:COP Type Bidirectional Piston Sealing RingMaterial:Nitrile Butadiene Rubber(NBR)Colour:BlackWorking Temperature:-20 °C~+80 °CMaterial hardness:93 degreesPackage:Bubble pack / Paper BoxSurface Treatment:UntreatedCOP(OPA) seal ringThe utility model relates to a small acting cylinder piston seal, which has better friction characteristics than an O-ring, and is used for standard cylinders, small diameter cylinders and thin cylinders.Technical parameters and installationWorking pressure:1.0MPAOperating temperature:-20 °C~+80 °CSurface velocity:1M/SMedium: oil-lubricated air as well as dry and oil-free air (initial lubrication required during assembly)Installation: This type of pneumatic seal is easily fitted over the piston into the groove. In order to avoid damage to seals, measures should be taken to avoid edges during installation. In the case of oil-free lubrication, it is important to have a complete auxiliary synovial film on the sealing surface, which should be done before assembly to ensure a long working life of the seal.==========High-concerned chemical : NoneStandard or Nonstandard : StandardModel Number : COP Type Bidirectional Piston Sealing RingMaterial : MetalShape : Ring Gasket

• Pump Seals
• Installation Easy to Fit:Easily fitted over the piston, this seal simplifies installation for a quick and hassle-free setup.
• Standard or Nonstandard Standard:Available as a standard-sized seal, ensuring easy installation and compatibility with various cylinders.
• Sc Seal|Sc Type Seal|Material Nitrile Butadiene Rubber (NBR):Crafted from NBR, this seal offers superior wear resistance and durability.
• Operating Temperature Range -20 °C~+80 °C:Versatile seal operates effectively in a wide temperature range, from -20 °C to +80 °C.
• Working Pressure ≤1.0MPA:Designed to withstand up to 1.0MPA, ideal for moderate to high-pressure cylinder applications.
