N Male to RP-TNC Male Extension Cable 12m / 39.4ft Jumper Low Loss HF240 (LMR 240 Equivalent) Coax RF Coaxial for WiFi Antenna Wireless LAN (RP TNC — Reverse Polarity TNC, Female Pin)
Product details
| Management number | 218134901 | Release Date | 2026/05/03 | List Price | $10.96 | Model Number | 218134901 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

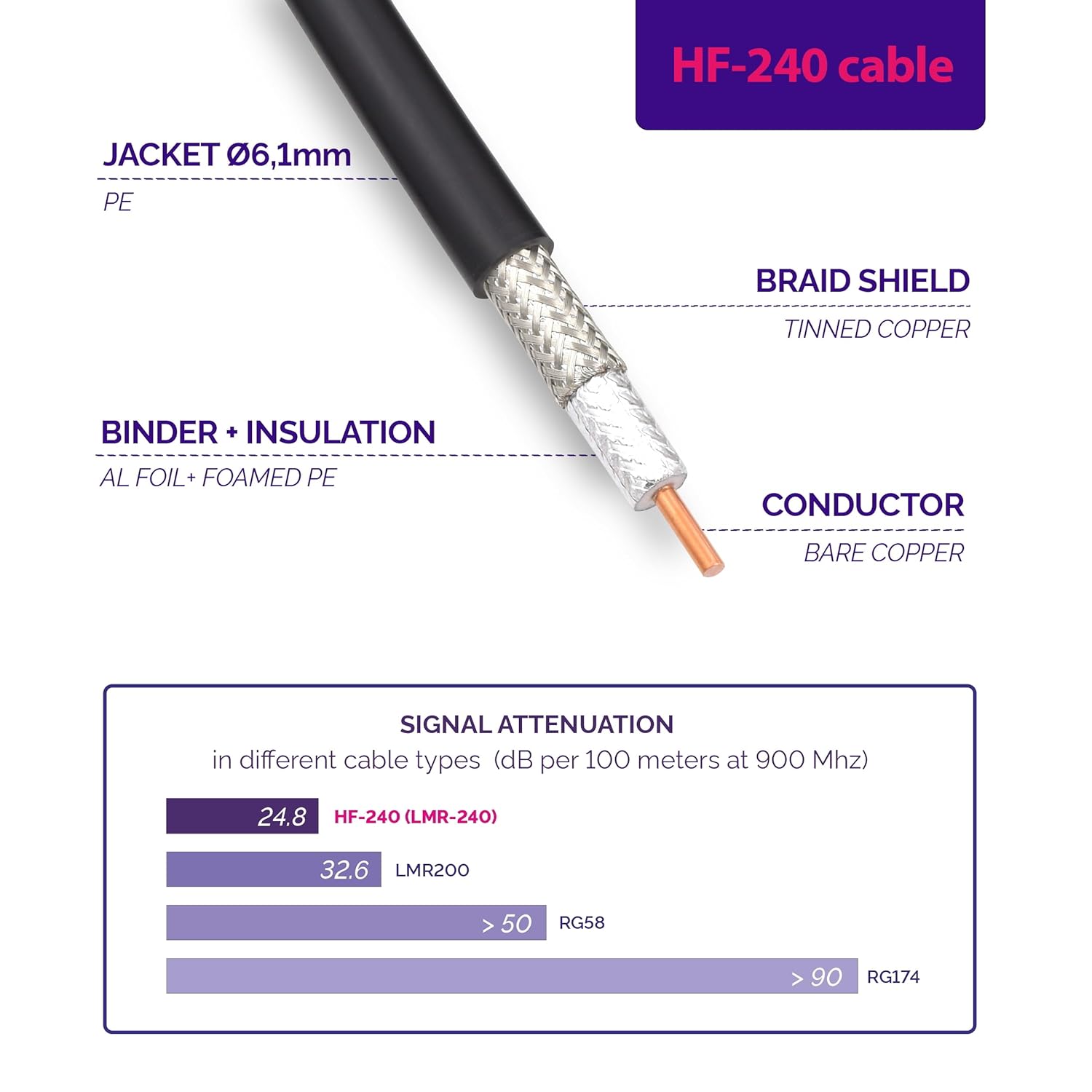

RP-TNC Male to N Male Low Loss Indoor/Outdoor HF240 Semi-flexible Coaxial CableDouble Shielded with Black PVC JacketLength: 12 meters (39.4 ft)ApplicationWidely used with Antennas, Routers, 4G/5G Repeaters, Mobile Amplification Systems, Radio Scanners, Modems, Car Transmitters, CB Radio, WiFi Radios, GPS antennas, various RF devices, Wireless LAN Devices, Testing equipment etc.Features ✅ Indoor/Outdoor use. UV-protected and Waterproof black PVC Jacket. ✅ Solid Copper Conductor and Tinned Copper Braided Shield best-in-class data transmission with minimal attenuation. ✅ Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment. ✅ Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94. Package includes 1 piece of 12m (39.4ft) RP-TNC Male to N-Male Extension Cable Connector 1: RP-TNC Male Connector 2: N-Male Specifications Cable Type: HF240 Bare Copper with PVC Jacket Center Conductor Type: Solid Copper (1 Strand) Impedance: 50 Ohm Frequency Range: DC - 6GHz Cutoff Frequency: 31 Ghz V.S.W.R: ≤ 2 Operating voltage: 1500Vrms Input Power (Peak): 2.5 KW Shielding Effectiveness: >90dB Capacitance: 83 pF/m Dielectric Type: PE Jacket Material: PVC No. of Shields: 2 (Aluminium foil + Tinned Copper Braid) Operating Temperature: -35 to +80 deg C Mechanical Specifications Diameter: 6.10mm Inner Conductor: 1.42mm Dielectric: 2.90mm Second Shield: 3.95mm Bending Radius: 20mm Attenuation dB/100m: 900Mhz: 24.8 1800Mhz: 35.6 2500Mhz: 42.4 5800Mhz: 66.8
- ✅【 Indoor/Outdoor use 】 RP-TNC Male / N Male extension cable 12m UV-resistant, Waterproof and Frostproof with black PVC jacket.
- ✅【 Solid Copper Conductor 】 Copper conductor and tinned copper braid shield provide best-in-class data transmission with minimal attenuation.
- ✅【 Double-wall shrink tubing 】 Additional adhesive layer better protection of connectors from external environment.
- ✅【 Assembled in EU 】 The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.
| Color | RP-TNC Male / N Male |
|---|---|
| Model | HF240-RPTNCM-NM-12 |
| Frequency | 11 GHz |
| Brand Name | RANGEFUL |
| Cable Type | Antenna cable |
| Item Weight | 0.68 Kilograms |
| Part Number | HF240-RPTNCM-NM-12 |
| Manufacturer | RANGEFUL |
| Connector Type | N Male, Rp-tnc Male |
| Compatible Devices | Antenna, Modem, WLAN Equipment, Wi-Fi Router, Wireless Devices |
| Warranty Description | 2 years |
| Other Special Features of the Product | Low Loss, Pure Copper, Outdoor/Indoor |
