Little Giant 16EC-SSA-V 115 Volt, 1 HP, 4800 GPM Sump or Light Effluent Pump with Piggy-back Vertical Switch, 10-Ft. Cord, Black, 14942785
Product details
| Management number | 210142339 | Release Date | 2026/04/02 | List Price | $105.82 | Model Number | 210142339 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Little Giant 16EC-SSA-V 115 Volt, 1 HP sump/light effluent pump is designed for removing wastewater in sump systems and is capable of passing up to 3/4-inch semi-solids.This fully automatic pump has a vertical float switch which activates when the water level reaches 7.87 - 10.23 inches and shuts off when the water falls between 2.67 and 5.11 . The float switch features a piggy-back plug and can easily be converted to a manual pump by unplugging the pump from the switch and plugging the pump directly into the wall outlet making pump maintenance/testing easier. This pump comes equipped with a 10-ft. cord.

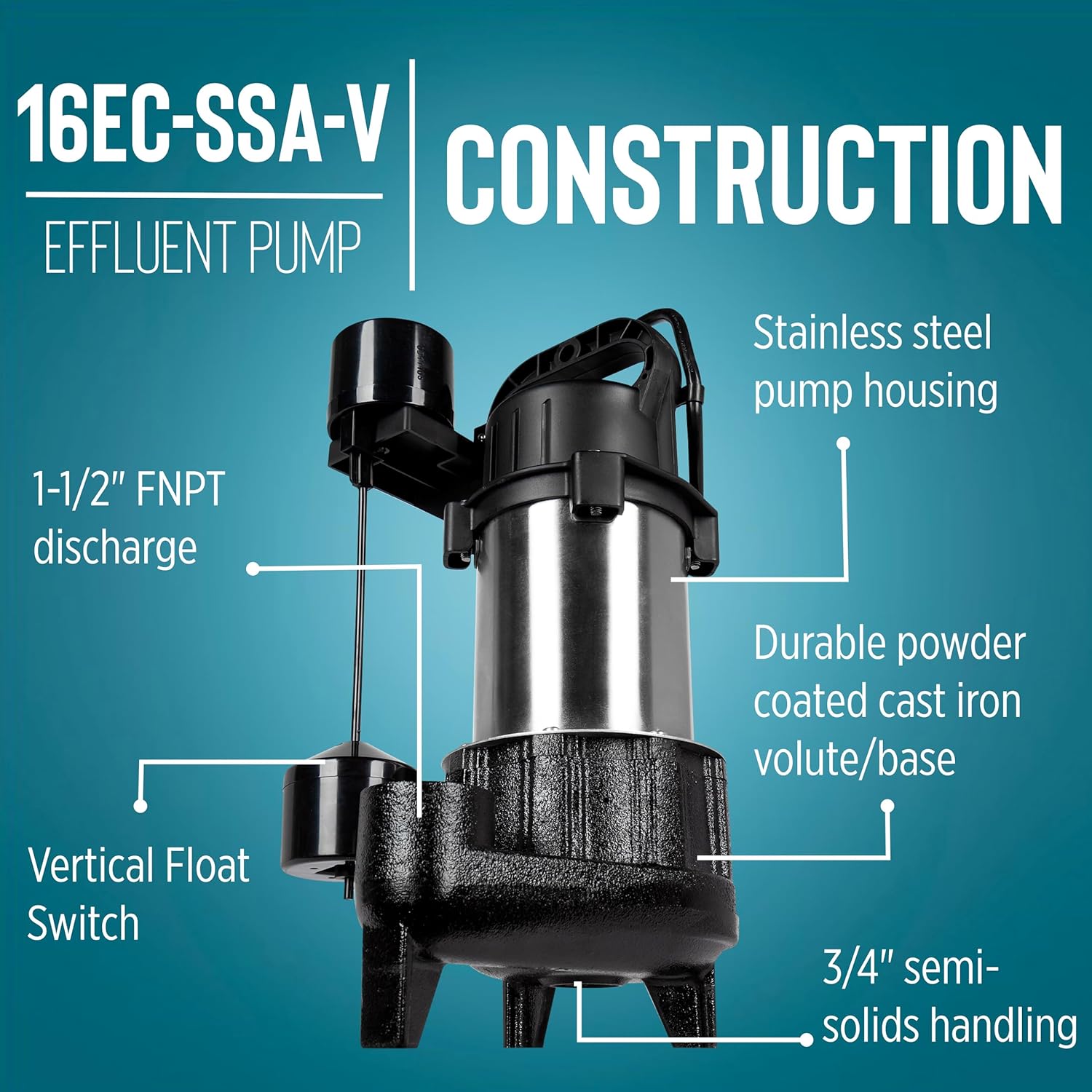

- BUILT TO LAST: stainless steel housing for aggressive water conditions; heavy-duty cast iron volute, polymer open impeller, designed for continuous duty
- ROBUST, ENERGY-EFFICIENT MOTOR: 1 HP Permanent Split Capacitor (PSC) thermally protected motor runs on 8.0 Amps, 925 Watts; CSA listed in the USA and Canada
- SOLIDS HANDLING: 1-1/2-inch FNPT discharge, open-style impeller capable of passing up to 3/4-inch semi-solids; ideally suited for sump system or light effluent wastewater removal
- AUTOMATIC OPERATION: Piggy-back vertical float switch activates when water reaches 7.87 - 10.23 inches; shuts off when liquid falls between 2.67 and 5.11 inches; can be bypassed for manual operation
- SPECIFICATIONS: 1 HP, 115 Volts, 60 Hz, 8.0 Amps, 925 Watts, 4800 GPM at 5-ft. lift; 30-ft. shut-off; maximum 15.2 PSI; 30-ft. cord, 29.8 lbs.
| UPC | 010121016422 |
|---|---|
| Color | Blue |
| Voltage | 115 Volts |
| Flow Rate | 80 Gallons Per Minute |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Item Weight | 29.8 Pounds |
| Manufacturer | Franklin Electric Co., Inc. |
| Model Number | 14942785 |
| Power Source | Corded Electric |
| Material Type | Cast Iron, Stainless Steel |
| Product Style | Vertical Float Switch |
| Item Type Name | Little Giant 16EC-SSA-V 115 Volt, 1 HP, 4800 GPM Sump or Light Effluent Pump with Piggy-back Vertical Switch, 10-Ft. Cord, Black, 14942785 |
| Included Components | Owner's manual, Pump with switch and 10-ft. cord |
| Maximum Lifting Height | 30 Feet |
| Item Dimensions L x W x H | 8.77"L x 7.36"W x 15.19"H |
