Generic Microwave Magnetron Tube Compatible for GE WB27X26081 WB27X10305

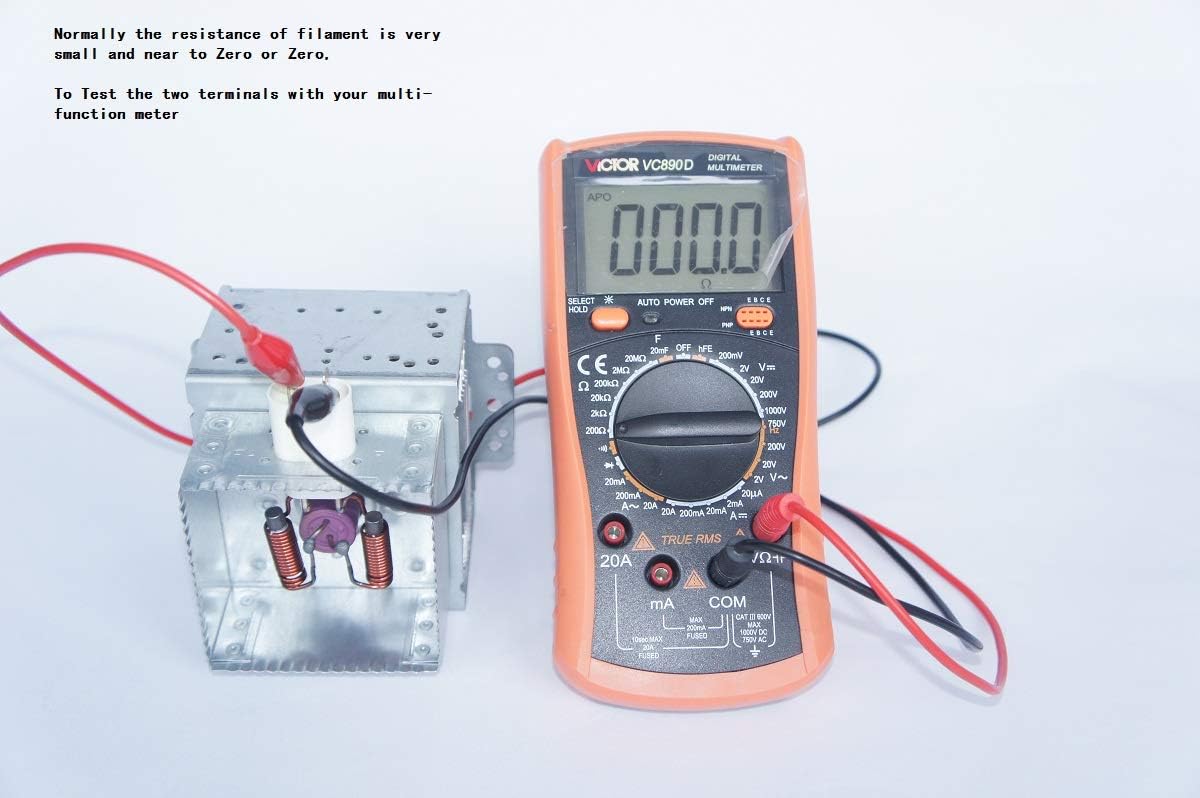

Package Contents: 1 x Magnetron TubeOverView Size(without include Feet and tube):108x93x95 mm/4.2x3.7x3.7in(WxHxT)Net Weight:1 Kg/2.2LbInstall Holde Diameter(Middle):5.4mm/0.02in, Hole Central Horizontal Distance(Middle):94mm/3.7inInstall Hole Diameter(Side Big): 4.2mm/0.16in, Horizontal Distance: 94mm/3.7in, Vertical Distance: 35mm/1.4inInstall Hole Diameter(Side Small):3.2mm/0.13in, Horizontal Distance:100mm/4in, Vertical Distance:24mm/0.94inKindly Remind:1.Please shut down power supply and use electrical meter to conform high voltage has been released before you replace it. Safe is first.2.Not include install screws and thermostat, so remove your old magnetron and keep remain your original screws and thermostat, reused for new magnetron.

• Production Name: Microwave Magnetron, Module Name: 2M246,Cooling Type: Air Cooling, Power: 1000 Watts, Microwave Frequency: 2450 MHz,Connect Terminal Size: 6.35x0.8mm/0.25x0.03in
• Direct factory replacement for GE WB27X10305 and WB27X26081 magnetrons, also replace magnetron marked 2m246 if assembly meets
• Kindly remind, magnetron depart into air cooling and water cooling types, home almost use air cooling, water cooling normally is not desingn for home and normally for industry or big canteen, obviously there are 2 holes on side, don't mix them
• This part fixes the following symptoms: No heat, and it is a general electric replacement part for common repairing,multi-holes for installing and fixing, save your time
• CQC and VDE certificated, executed EN61270-1 standard, ensure safe enough
