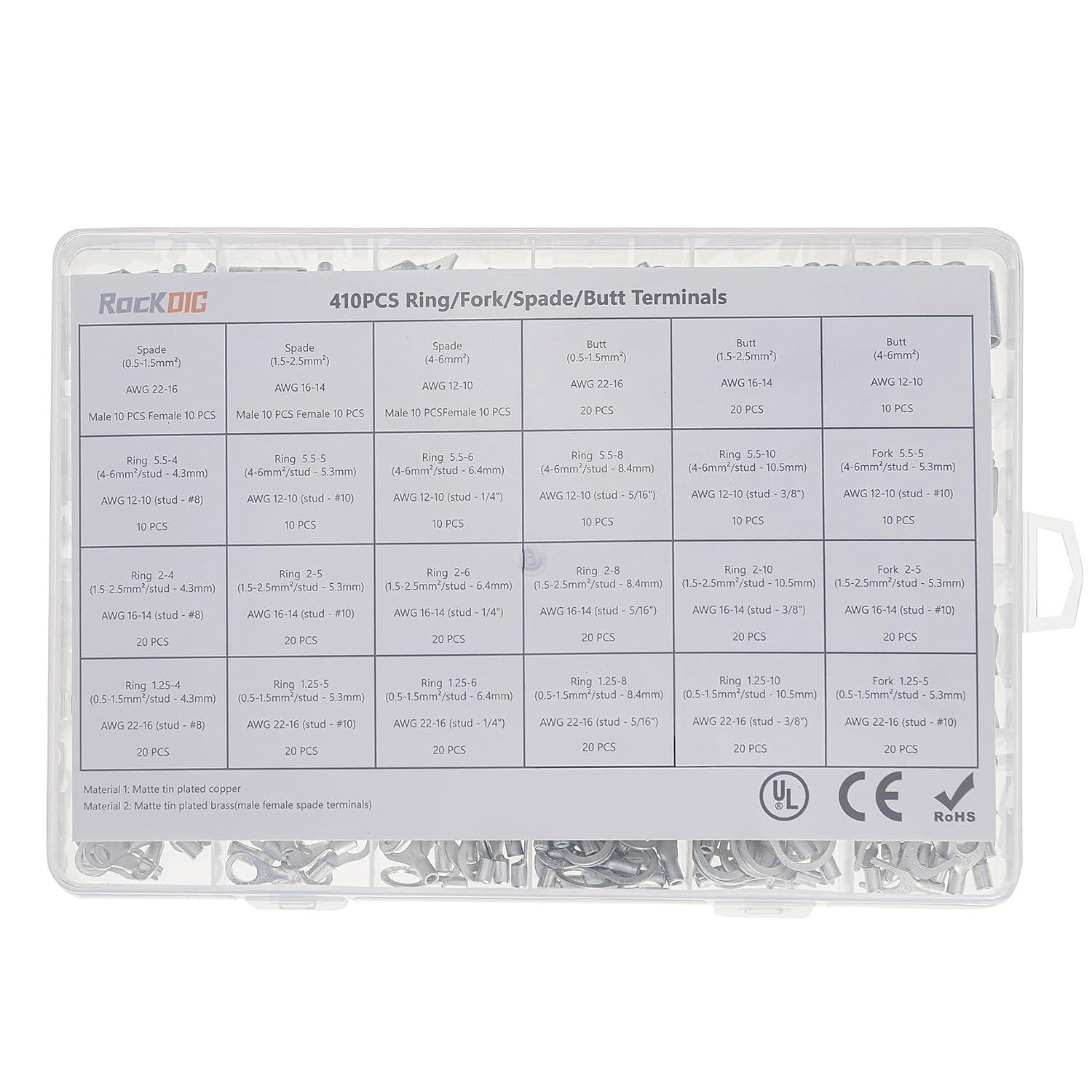

Electrical Wire Connectors, 410 PCS AWG 22-16 16-14 12-10 Gauge Non-Insulated Butt Spade Ring Terminal Lug Crimp Connectors Assortment Kit
Product details
| Management number | 218145489 | Release Date | 2026/05/03 | List Price | $11.60 | Model Number | 218145489 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Material 1: 99.9% pure copper; Material 2: brass. Finsh: Matte tin plating. Rated temperature: 221°F (105°C). Rated voltage: 600 volts. Package: 1, AWG 22-16 Ring Fork, Thickness 0.75mm/0.0295", Max current 19A; Material: red copper. RNB1.25-4 --- AWG 22-16 * Ring #8 --- 20 pcs; RNB1.25-5 --- AWG 22-16 * Ring #10 --- 20 pcs; RNB1.25-6 --- AWG 22-16 * Ring 1/4" --- 20 pcs; RNB1.25-8 --- AWG 22-16 * Ring 5/16" --- 20 pcs; RNB1.25-10 --- AWG 22-16 * Ring 3/8" --- 20 pcs; SNB1.25-5 --- AWG 22-16 * Fork #10 --- 20 pcs. 2, AWG 16-14 Ring Fork, Thickness 0.8mm/0.0315", Max current 27A; Material: red copper. RNB2-4 --- AWG 16-14 * Ring #8 --- 20 pcs; RNB2-5 --- AWG 16-14 * Ring #10 --- 20 pcs; RNB2-6 --- AWG 16-14 * Ring 1/4" --- 20 pcs; RNB2-8 --- AWG 16-14 * Ring 5/16" --- 20 pcs; RNB2-10 --- AWG 16-14 * Ring 3/8" --- 20 pcs SNB2-5 --- AWG 16-14 * Fork #10 --- 20 pcs. 3, AWG 14-12 Ring Fork, Thickness 1mm/0.0393", Max current 48A; Material: red copper. RNB5.5-4 --- AWG 16-14 * Ring #8 --- 10 pcs; RNB5.5-5 --- AWG 12-10 * Ring #10 --- 10 pcs; RNB5.5-6 --- AWG 12-10 * Ring 1/4" --- 10 pcs; RNB5.5-8 --- AWG 12-10 * Ring 5/16" --- 10 pcs; RNB5.5-10 --- AWG 12-10 * Ring 3/8" --- 10 pcs; SNB5.5-5 --- AWG 12-10 * Fork #10 --- 10 pcs. 4, Butt terminals. Length 15mm/0.59"; Thickness 0.75/0.8/0.9mm(0.0295"/0.0315"/0.0354"); Max current 19/27/48A; Material: red copper. AWG 22-16 --- 20 pcs; AWG 16-14 --- 20 pcs; AWG 12-10 --- 10 pcs. 5, Male/Female qucik disconnectors. Thickness 0.4mm/0.0157", Max current 10/15/24A; Material: brass. Male/Female AWG 22-16 --- each 10 pcs total 20 pcs; Male/Female AWG 16-14 --- each 10 pcs total 20 pcs; Male/Female AWG 12-10 --- each 10 pcs total 20 pcs.
- RockDIG wire connectors are made from 99.9% purity high-quality copper material, Tin-plated to resist corrosion, for maximum conductivity; and the male/female spade connectors are made from brass for better hardness.
- Wide Application: These wire connectors are suitable for automotive, marine, home appliances, audio/video wiring, electrical projects, etc.
- Assortment Kit: This kit includes a wide variety of popular sizes and quantities of ring terminals, fork terminals, spade terminals, and butt connectors for your different needs.
- Convenient Storage: Comes in a durable plastic box with a label, keeping the connectors organized and easy to find.
- Easy to Use: Simply strip the wire, insert it into the connector, and crimp with a crimping tool for a secure and reliable connection.
| Color | Silver |
|---|---|
| Gauge | 22-16 16-14 12-10 Gauge |
| Model | C |
| Terminal | Butt Terminal |
| Stud Size | #10, #8, 1/4, 3/8, 5/16 |
| Brand Name | ROCKDIG |
| Part Number | RF410 |
| Manufacturer | RockDIG |
| Material Type | Copper |
| Connector Type | Butt Splice, Crimp, Fork, Ring, Spade |
| Maximum Voltage | 600 Volts |
| Number of Items | 1 |
| Contact Material | Copper |
| Specification Met | CE, RoHS, UL |
| Temperature Rating | 221 degree fahrenheit |
| Included Components | 410 pcs Wire Connectors |
| Insulation Material Type | Non-Insulated |
| Item Dimensions L x W x H | 8"L x 5.5"W x 1"H |
