DR.PREPARE 12V 100Ah MINI LiFePO4 Battery, 1280Wh Mini Deep Cycle Lithium Iron Phosphate Battery with 100A BMS & Grade A+ Cells for RV, Trolling Motor, Marine, Boat, Off-Grid, Solar Energy
Product details
| Management number | 216233150 | Release Date | 2026/04/19 | List Price | $52.00 | Model Number | 216233150 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

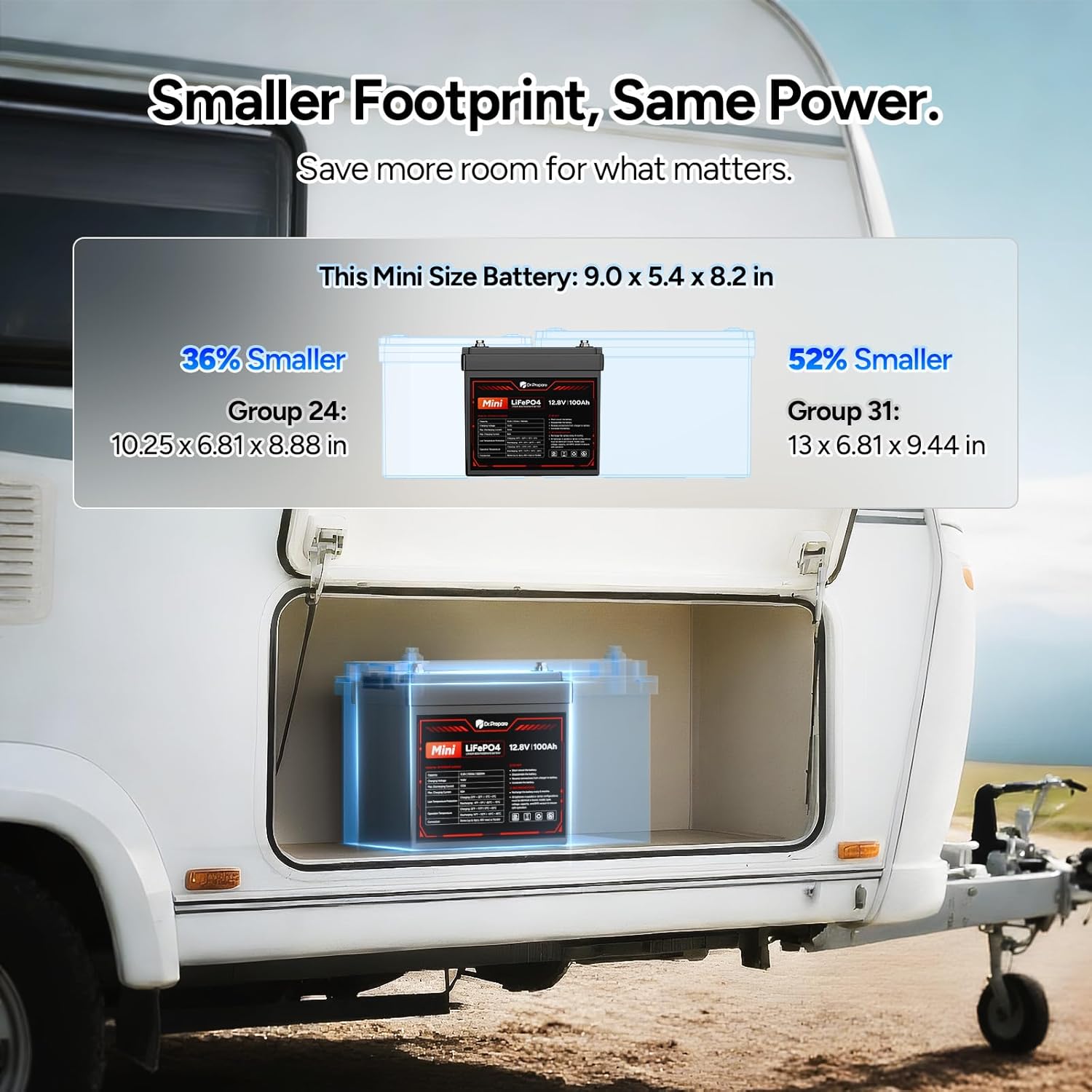

- [Much Smaller Size, Same Power] The Dr.Prepare 12V 100Ah LiFePO4 battery is engineered to be much more compact, saving approx 52% of installation space compared with Group 31 and about 36% compared with Group 24. It’s the perfect fit for tight compartments and mobile energy applications.
- [20+ BMS Protections, Grade A+ Cells, 10-Year Lifespan] Built with Grade A+ high energy density cells and a smart BMS offering 20+ layers of protection - including low/high temperature cut-off - this deep cycle LiFePO4 battery delivers up to 100A continuous discharge current while maintaining safe and stable performance in a wide range of environments. It’s designed to last, with a 10-year lifespan and reliable product support for long-term peace of mind.

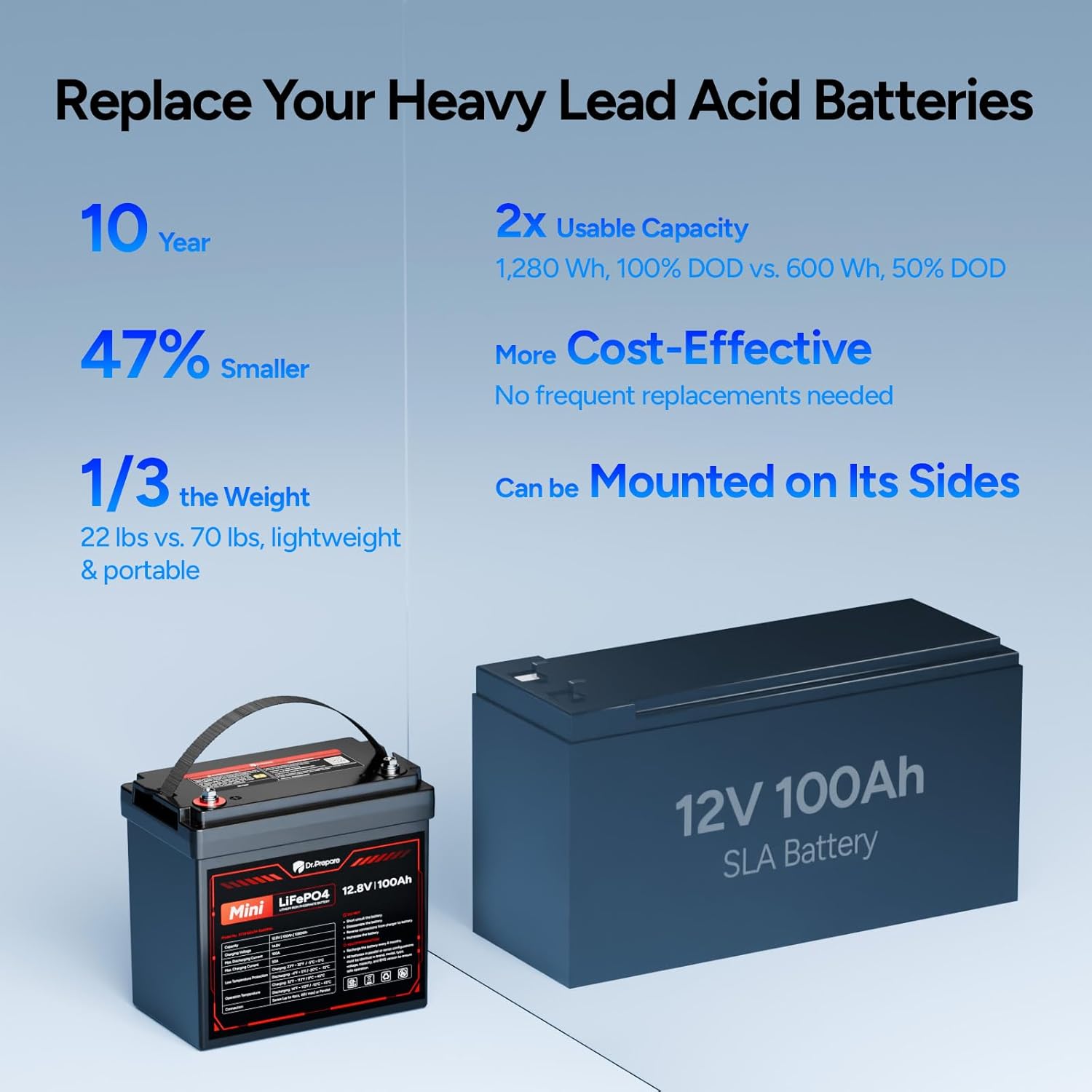

- [Perfect Replacement for Lead-Acid Batteries] Dr.Prepare 12V 100Ah LiFePO4 battery is an ideal upgrade from traditional sealed lead-acid (SLA) batteries. Weighing just 22 lbs, it’s up to 47% smaller and 70% lighter, while offering twice the usable capacity. With a 10-year lifespan- compared to just 1-3 years for most SLA batteries - it significantly reduces replacement frequency and long-term costs. Plus, it supports side mounting, giving you more flexibility in installation.
- [Safe Charging & Discharging] Use a compatible AC-to-DC LiFePO4 charger or a solar panel system with a charge controller set to the LiFePO4 battery type. Do not use general-purpose or lead-acid battery chargers. Recommended charging current: 20A (Max: 50A). Maximum continuous discharge current: 100A. After a full 100A discharge, avoid immediately recharging at 50A, as it may trigger the battery’s high-temp charging protection.
- [Series & Parallel Connections] Dr.Prepare LiFePO4 battery supports both series and parallel configurations. Easily build a 24V, 36V, or 48V system using series connections. Expand capacity to 12V 200Ah, 300Ah, or 400Ah with parallel connections. Supports up to 16 batteries in a combined series-parallel setup, ideal for home backup systems. For any configuration, all connected batteries must be the same model. For series connections, do not include any battery that has already been cycled more than 50 times..
- [Warm Tips before Buying] The 12V 100Ah Mini LiFePO4 battery is suitable for energy storage battery rather than car batteries, starting batteries, cranking boat engines or golf cart batteries. As for the trolling motor, we suggest one battery working with a 12V 36~55 lbs thrust trolling motor, 2 batteries are required for a 24V trolling motor. A 60A CIRCUIT BREAKER (not included) must be used to protect your battery.
| Brand | DR.PREPARE |
|---|---|
| Item Weight | 22 Pounds |
| Manufacturer | DR.PREPARE |
| Model Number | DBT12100LFP-S48 |

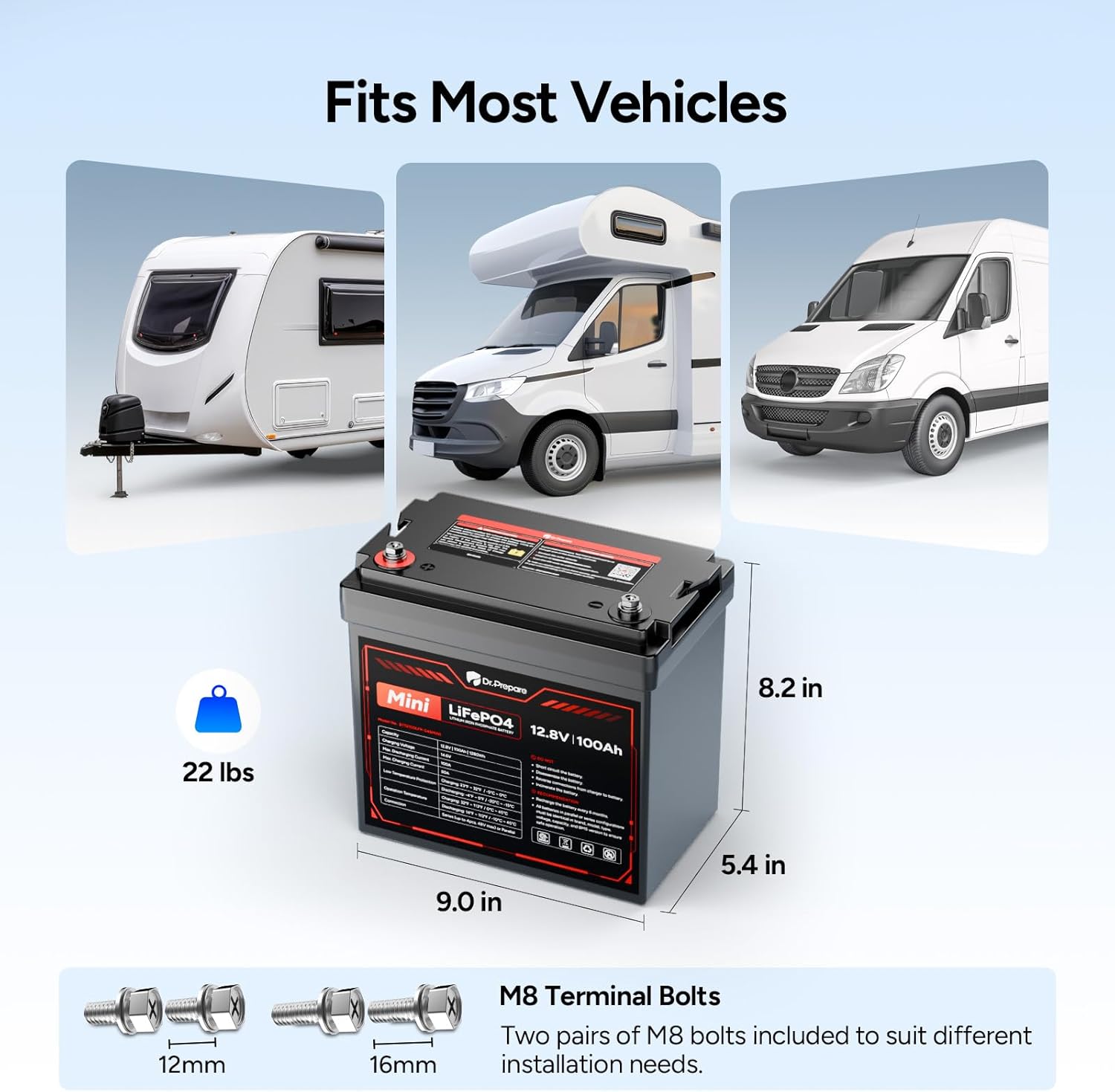

| Item Dimensions | 5.4 x 9 x 8.2 inches |
| Battery Cell Type | Other Than Listed |
