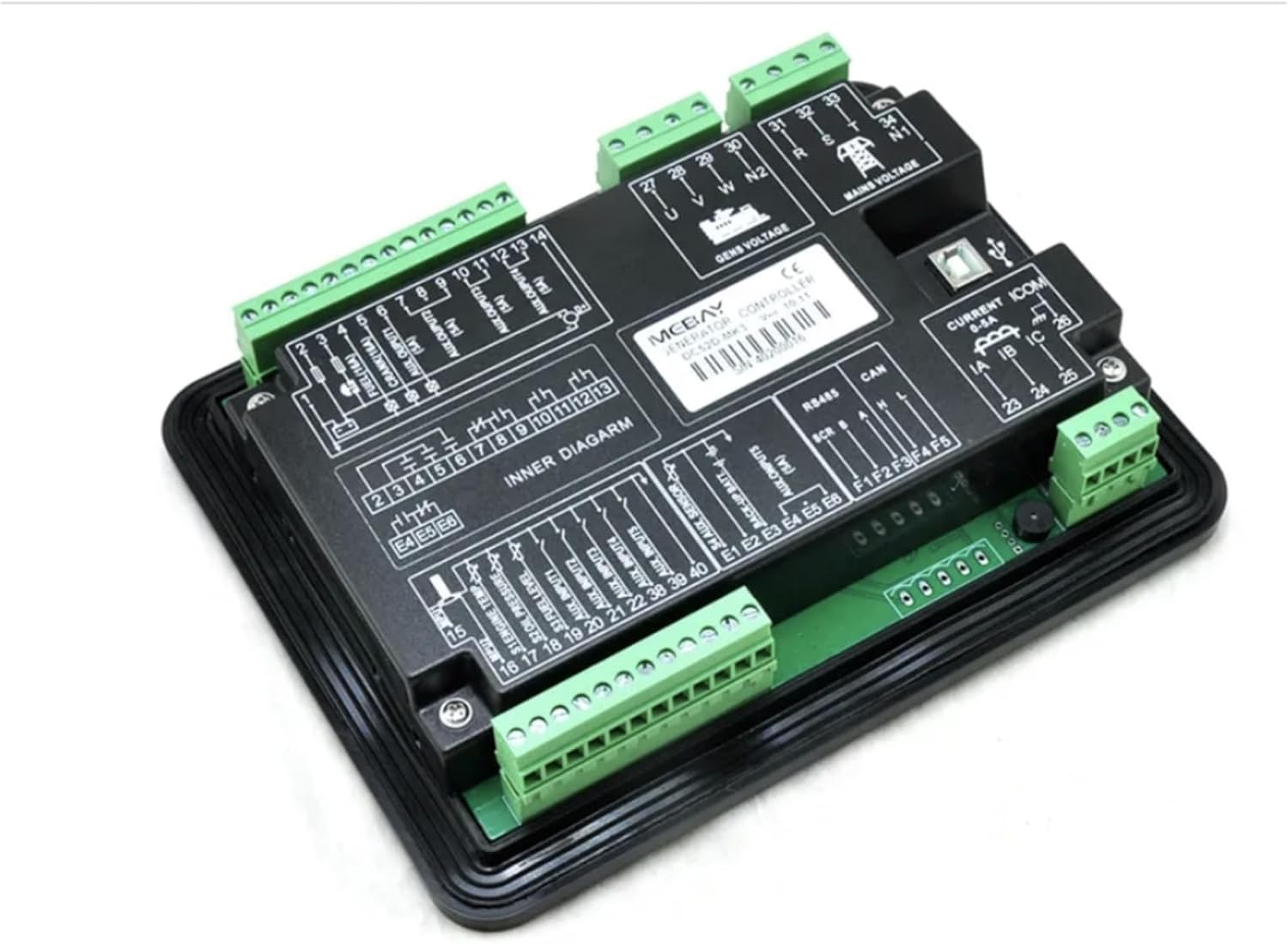

DC50D DC52D DC50DR DC52DR MK3 Diesel Generator Set Controller Diesel Genset Parts

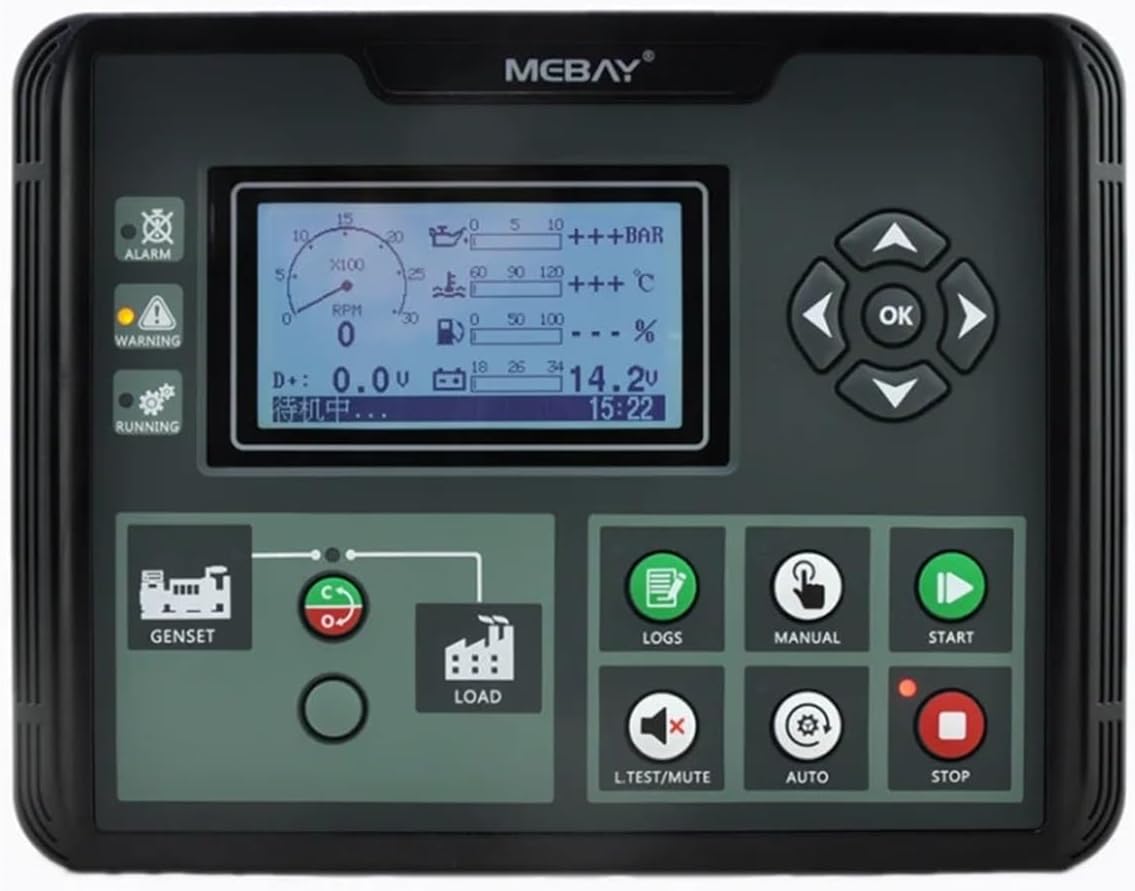

Electronic Engine ControlDC50D MK3 Diesel Generator Set Controller For Diesel Generator Genset Replacement SummaryThis series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting. 3.5 inch screen display with UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, screen can display various faults in the same time that the genset will be stopped once it can't work smoothly. There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.Main FeaturesThere are four Models under DC5xD MK3 series. DC50D MK3: used for single machine automation. Start/Stop through remote start signal. DC52D MK3: Based on DC50D MK3, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset. DC50DR MK3: Based on DC50D MK3, it adds RS485 port. DC52DR MK3: Based on DC52D MK3, it adds RS485 port. Dual core 32bit high performance single chip microcomputer. 3.5 inch 240 * 128 high-resolution screen, Available in 6 languages, user's language set if necessary. Indicator and number display through UI surface. Acrylic material is adapted to protect the screen. Silicone panels; USB Port: parameters can be set even without power through USD port to monitor in real time. With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol. Various kinds of parameters display. Input/output function, status can be shown directly. Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month. Maintenance countdown function, can set maintenance time or date. The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault. Totally 6relay's output, among which 4 relay output can be self-configurable, each relay can be set as max 20 functions, besides, there are 3 groups as non-contact terminals. With 5 switches input, up to 20 functions optional; 3 sensor simulation input connectors, the oil pressure sensor is compatible with voltage signal input, and various display units can be configured.Battery charging control function,which can protect the battery according to battery voltage status. Sensor can be self-defined by front face button or PC software. Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen. Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection. Standard water-proof rubber gasket. The waterproof can IP54 Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
