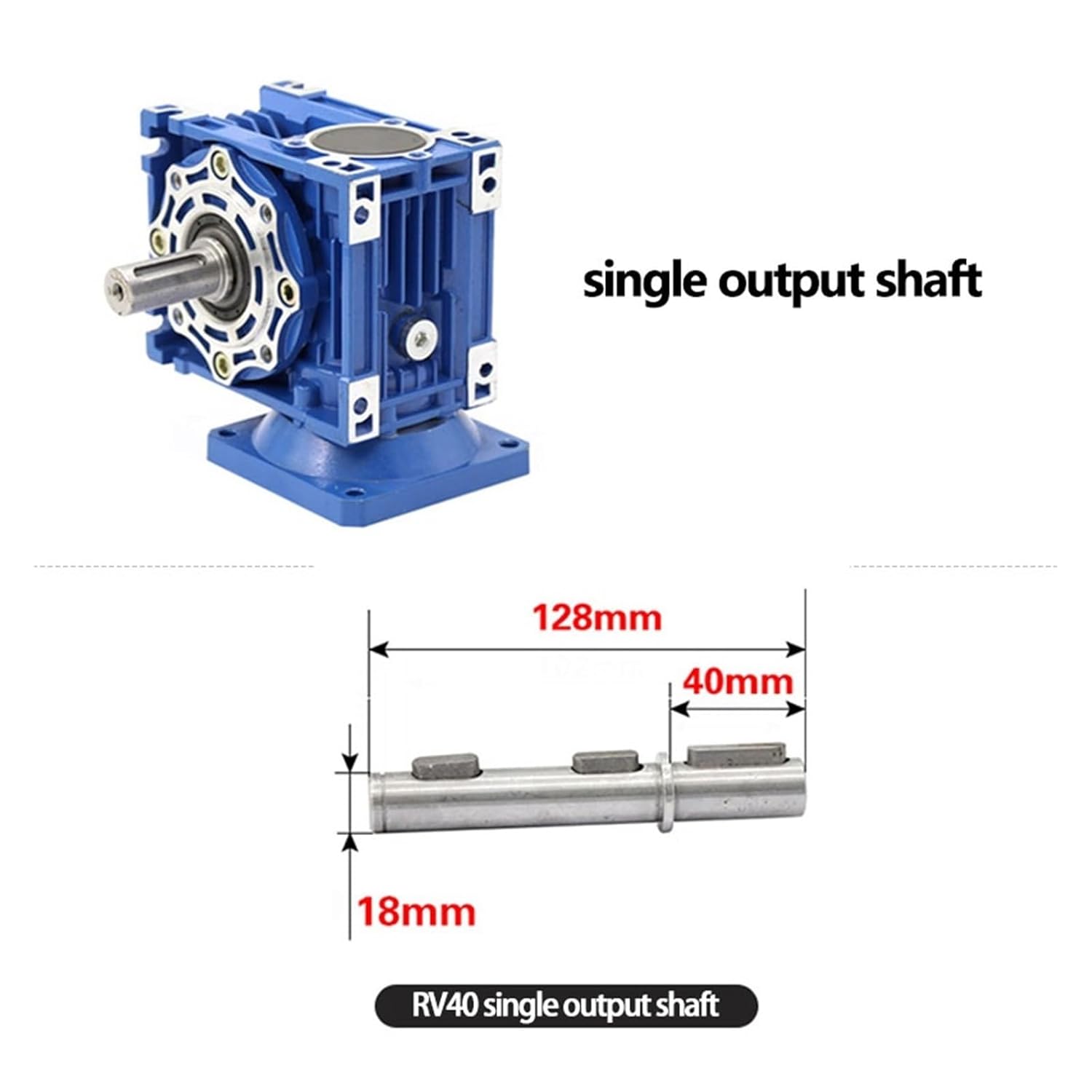

DC Worm Gear Motor Adjustable Speed NMRV40 12V 24V 120W with Single Output Shaft RV40 CW CCW
Product details
| Management number | 212896796 | Release Date | 2026/04/12 | List Price | $149.40 | Model Number | 212896796 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DC Worm Gear Motor Adjustable Speed NMRV40 12V 24V 120W with Single Output Shaft RV40 CW CCWworm reducer speed ratio:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,80:1,100:1.No-load speed of the motor2100rpm, load speed of the motor1800rpm.Output speed:speed ratio 5:1(420rpm), speed ratio 7.5:1(280rpm), speed ratio 10:1(210rpm), speed ratio 15:1(140rpm), speed ratio 20:1(105rpm), speed ratio 25:1(84rpm), speed ratio 30:1(70rpm), speed ratio 40:1(52.5rpm), speed ratio 50:1(42rpm), speed ratio 60:1(35rpm), speed ratio 80:1(26rpm),speed ratio 100:1(21rpm)Note!Output Power : 74.6-735(include735)Torque : 2.14-25.3 N.mModel Number : XD-5D120GN-RV40Continuous Current(A) : 12V 13A/24V 6.5AConstruction : Permanent MagnetType : Gear MotorProtect Feature : Totally EnclosedCommutation : BrushEfficiency : IE 2Origin : Mainland ChinaOutput Voltage : 120WSpeed ratio : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1No-load speed : 2200rpmLoad speed : 1800rpmOutput speed : 21rpm-420rpm
- Treayes DC Worm Gear Motor Adjustable Speed NMRV40 12V 24V 120W With Single Output Shaft RV40 CW CCW
| Model | Pinnengdianshang |
|---|---|
| Brand Name | Treayes |
| Model Name | Pinnengdianshang |
| Manufacturer | Pinnengdianshang |
