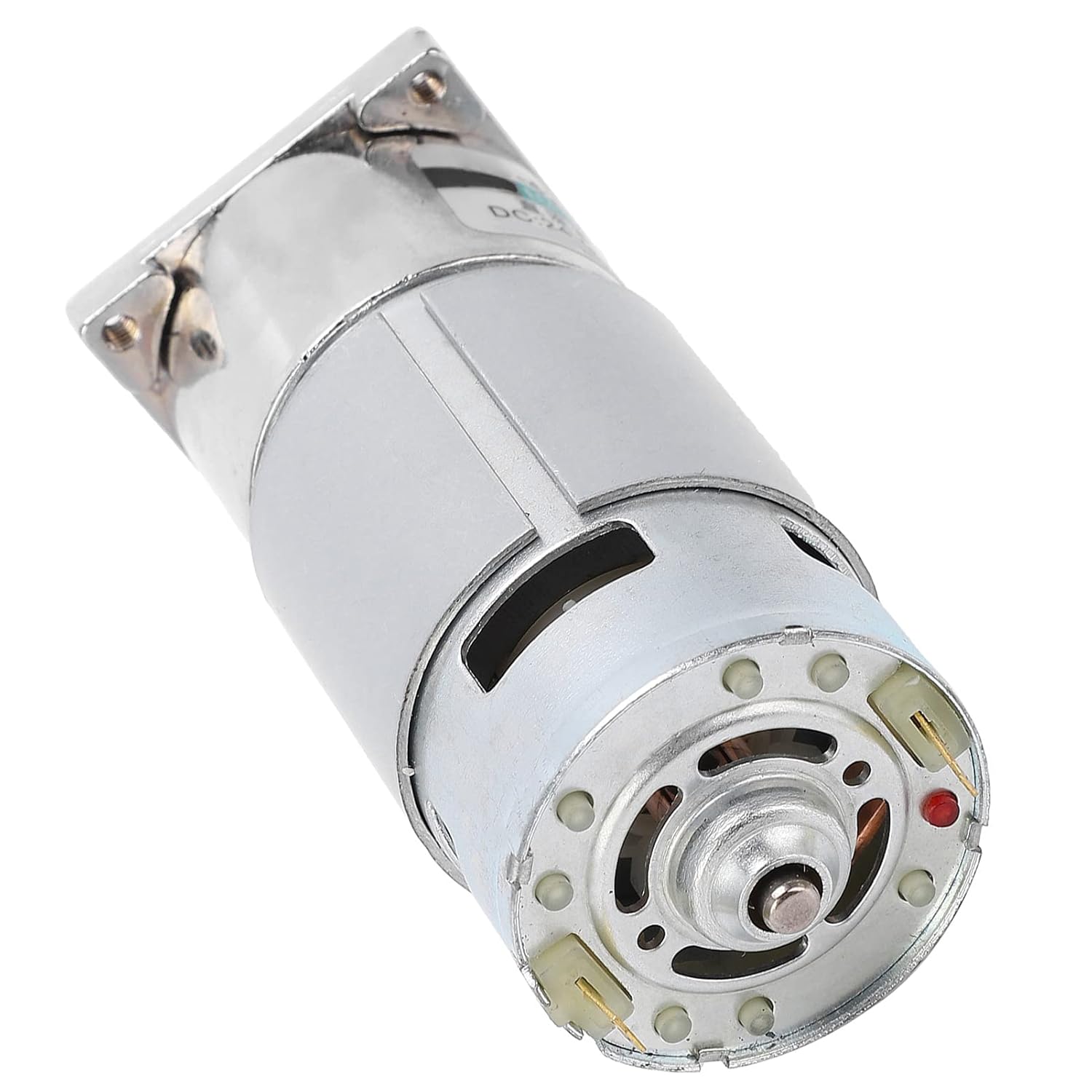

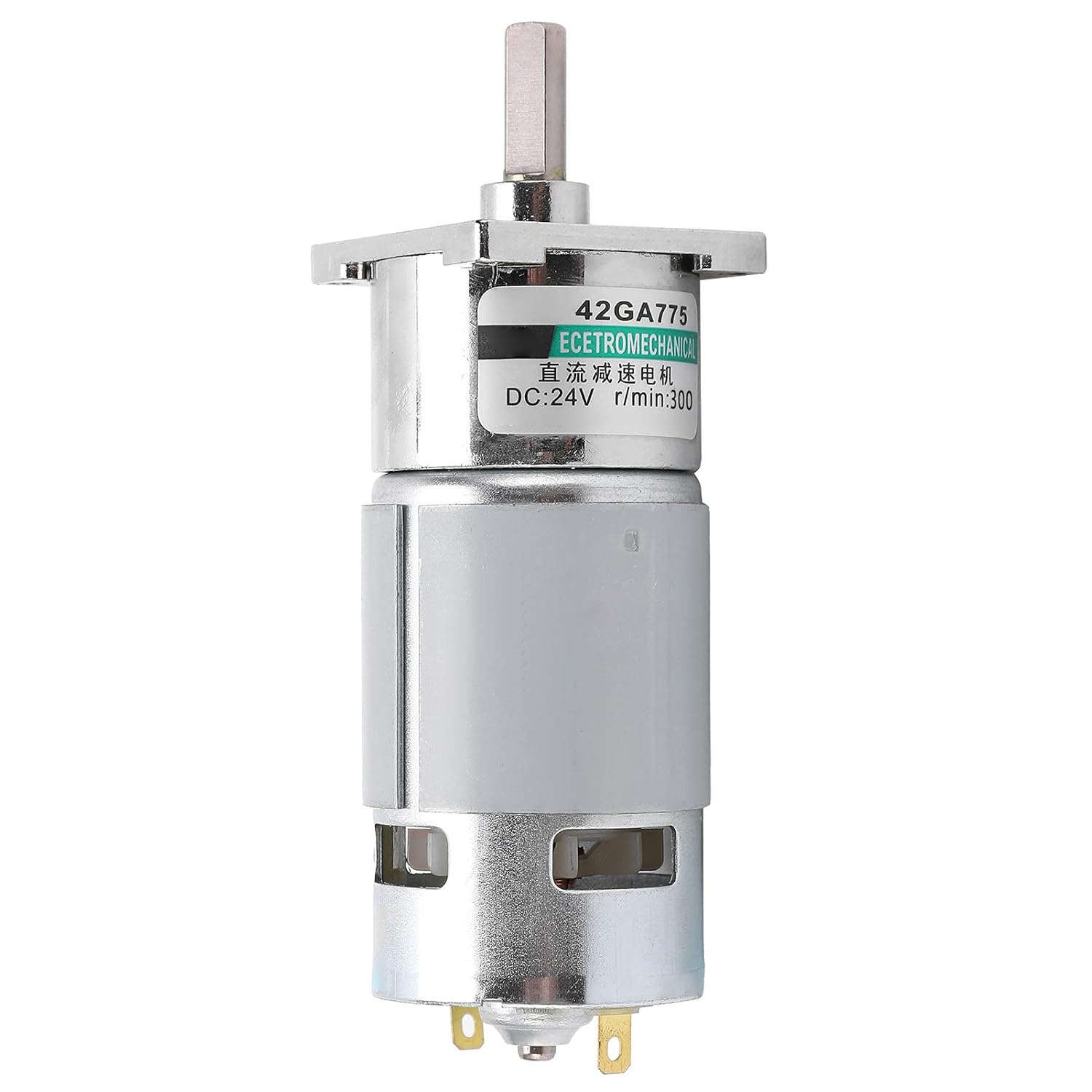

DC Gear Motor Speed Reduction CW CCW Permanent Magnet Automated Industry 24V XD‑42GA755500rpm Min Pure Copper Adopted DC Gear MotorLow Speed MotorSpeed Reduction MotorCW CCW (300rpm/min)

Specifications: Item Type: DC Gear Motor Model: XD-42GA755 Material: Copper Output Shaft Size: Approx. 8 x 20mm / 0.3 x 0.8in Insulation : After the rated of the motor under normal temperature and humidity, when measuring the insulation between the coil and the motor Cover with a DC500V meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated under normal temperature and humidity by using the to measure the temperature rise of the coil below 70℃ Insulation Class: Class B(130℃) Operating Temperature: Motor: -10~+40℃ (no icing) Use Humidity: 85% or less (no condensation) CW/CCW: Speed Adjusted: Model Voltage（DC/V） No-Load Speed (rpm/min) No-Load Current(A) Load Speed (rpm/min) Loading Moment（kgf·cm） Reduction Ratio（:00） Power（W） XD-42GA755 24V 100 0.27 93 4.58 50 25 150 0.27 128 3.06 33 25 200 0.27 175 2.29 25 25 300 0.27 245 .53 16.6 25 500 0.27 435 0.92 10 25 600 0.27 535 0.76 8.3 25

• tor is adaptable for a wide range of across various industries. Whether used in circulating fans, humidifiers, dehumidifiers, smart door locks, or processing machinery, its reliability and efficiency make it a preferred choice for both industrial and consumer applications, showcasing its capability to meet diverse operational needs. DC Gear MotorLow Speed MotorSpeed Reduction MotorCW CCW MotorSmall MotorPermanent Magnet Motor
• se Operation】 - Utilizing high-temperature grease for lubrication, our gear motor significantly reduces friction and noise levels, providing a smoother operation during use. This characteristic is especially beneficial for applications in quiet environments, where maintaining a low sound threshold is essential, such as in air fresheners and hand dryers. DC Gear MotorLow Speed MotorSpeed Reduction MotorCW CCW MotorSmall MotorPermanent Magnet Motor
• Pure copper adopted rotor torsion Automatically increasing are and the torsion strengthened deceleration the power 【Automatic Protection】 - Safety is paramount in motor operation. Our speed reduction motor is equipped with an automatic power cutoff feature that activates when the current reaches 3A. This protective mechanism prevents potential burnout during demanding tasks, enhancing user confidence and ensuring that the motor operates reliably
• 【High Torque Performance】 - Our DC Gear Motor excels with all-metal gears that provide small size yet deliver large torque, making it an ideal choice for applications requiring reliable, high-performance motors. The use of materials ensures ultra-quiet operation, contributing to stable and efficient performance during usage. This feature is perfect for devices that require a delicate touch without sacrificing power. Pure copper adopt
• 【Enhanced Durability】 - Engineered with pure copper coils in the stator and rotor, our low-speed motor enhances deceleration resistance and conductivity. This design not only boosts the torque output but also reinforces the motor’s overall robustness. The combination of quality manufacturing and material choice guarantees a longer runtime and extended service life, making it a smart investment for long-term use. Pure copper adopted rotor torsion
