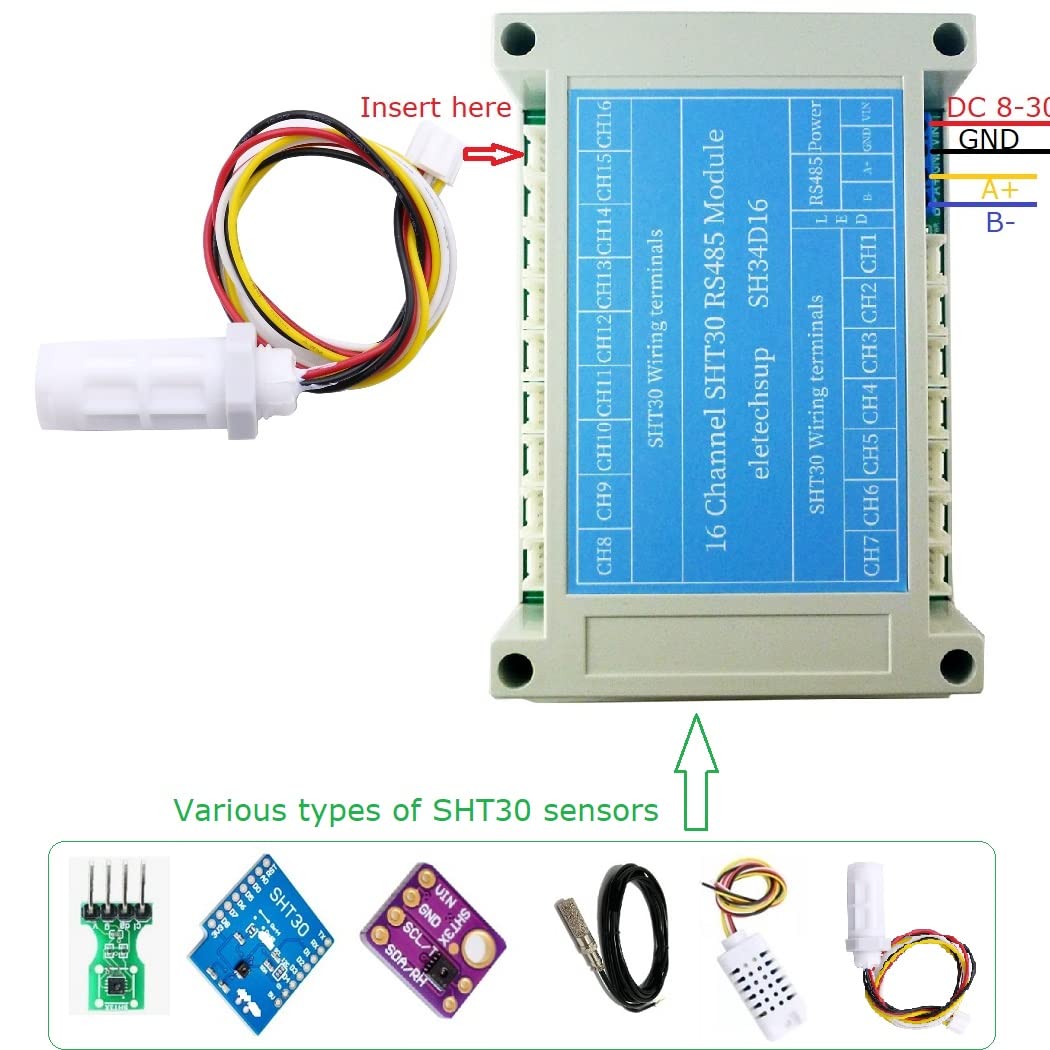

DC 12V 24V 16CH Temperature & Humidity Collector RS485 Modbus Rtu Board SHT30 SHT3X Sensor Controller Paperless Recorder Module (1 x Mother Board)

Product Name : DC 12V 24V 16CH Temperature & Humidity Collector RS485 Modbus Rtu Board SHT30 SHT3X Sensor Controller Paperless Recorder ModulePacking list: 1 pcs SH34D16 16CH RS485 Temperature and humidity collectorDescription:Supply voltage: DC 8~30V.Working current: 5~7mA.Support protocol: MODBUS RTU protocol, 03 read command, 06 or 16 write command.Serial port baud rate: 1200~115200, 9600 (default), 8 data bits, 1 stop bit.Serial port parity bits: No Parity (default), Even Parity, Odd Parity.By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)Adapted sensor: SHT30 temperature and humidity sensorTemperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)Humidity measurement range: 0-100%RH Accuracy: ±0.2℃; ±2%RHSize: 145*90*40 mm.Weight: 135 g.For protocol details please refer to the ''SH34D16 MODBUS RTU Command Manual''Typical application:Temperature and humidity controllerIndustrial SystemsThermometersThermally Sensitive SystemsIndoor and outdoor temperature measurementWeather forecasting, and monitoringTemperature and humidity in Computer Room/WarehouseSHT30 sensor :Product model: TB460 SHT30Working voltage: DC2.5-5.5VOutput signal: IIC Digital SignalOutput interface: HY2.0-4P terminal blockTemperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)Humidity measurement range: 0-100%RHAccuracy: ±0.2℃; ±2%RHIIC address: 0X44Wire length: 28 cmWeight: 10 gramsShell material: PE

• Supply voltage: DC 8~30V
• Working current: 5~7mA
• Humidity measurement range: 0-100%RH Accuracy: ±0.2℃; ±2%RH
• Size: 145*90*40 mm.
• Weight: 135 g.
