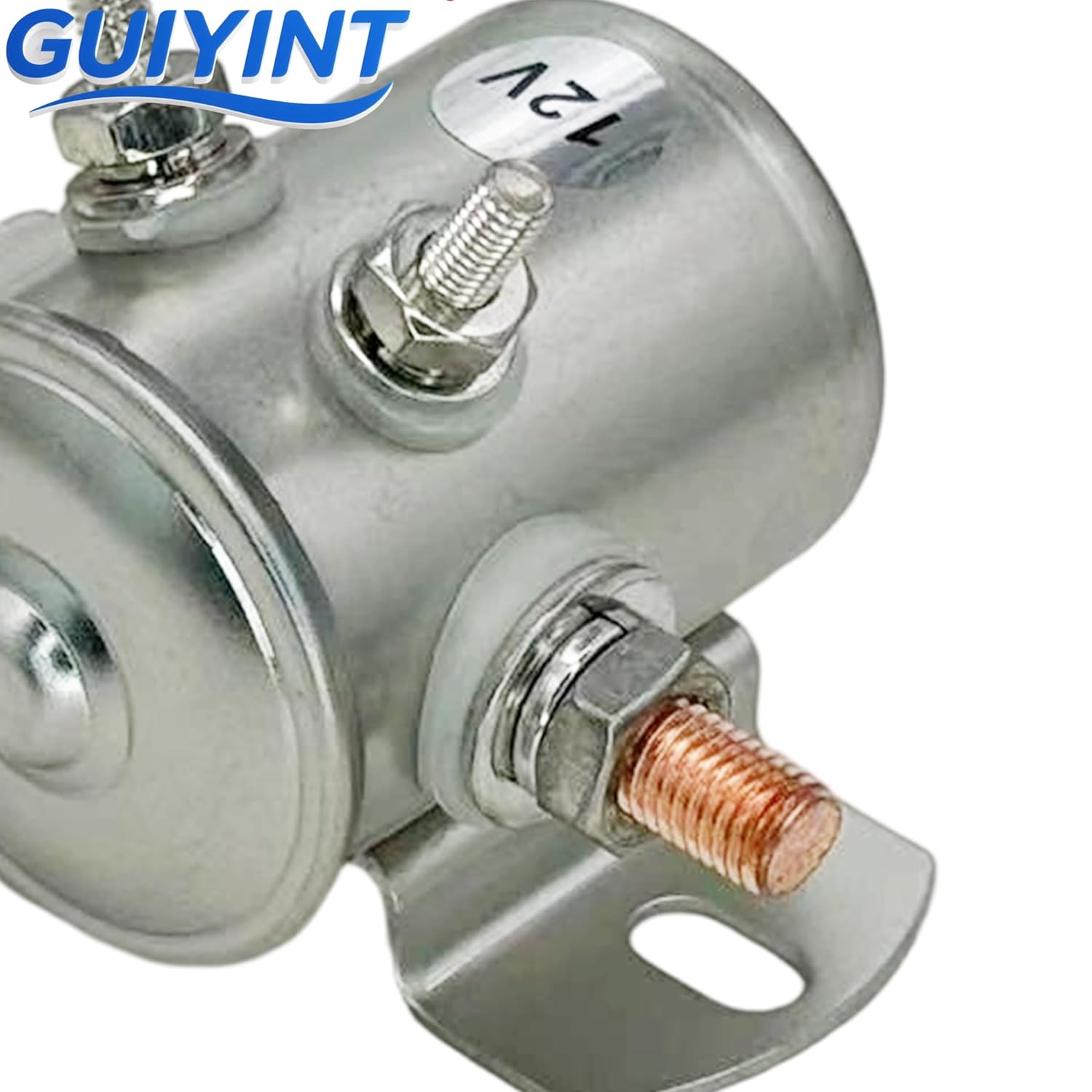

Continuous Duty Solenoid Relay 12V 200A SPST, Compatible with Cole Hersee 24213, Heavy Duty Insulated Starter Relay for Automotive Marine Truck Tractor
$65.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by seto.az
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 212623610 | Release Date | 2026/04/06 | List Price | $26.40 | Model Number | 212623610 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ⚡ 200A Continuous Current Rating Handles high-load applications like winches and starters without overheating. Silver alloy contacts minimize voltage drop (tested to SAE J1128 standards).
- 🛡️ Fully Insulated Construction Electrically isolates power studs from plated steel housing, preventing ground faults in marine or wet environments.
- ❄️ Extreme Temperature Resilience Operates from -40°F to 185°F (-40°C to 85°C) with epoxy-sealed coil resisting moisture, dust, and vibration.
- 🔧 Direct Bolt-On Replacement Matches Cole Hersee 24213 dimensions and stud configurations (two 5/16"-24 power studs + two #10-32 coil studs). Includes mounting hardware.
- 📦 Rugged & Reliable Zinc-plated housing passes 500-hour salt spray tests (ASTM B117). Ideal for agricultural, construction, and fleet vehicles.
| Model | 24213 |
|---|---|
| Wattage | 2400 watts |
| Brand Name | Guiyint |
| Item Weight | 0.99 Pounds |
| Part Number | 24213 |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Guiyint |
| Mounting Type | Chassis Mount |
| Connector Type | 1/4" Stud Terminal |
| Current Rating | 200 Amps |
| Operating Time | 1.5 Seconds |
| Operation Mode | Continuous duty |
| Coil Resistance | 1.2 Ohms |
| Contact Material | Copper Alloy |
| Specification Met | OE |
| Included Components | Continuous Solenoid |
| Number of Terminals | 3 |
| Warranty Description | 1 year |
| Contact Current Rating | 200 Amps |
| Upper Temperature Rating | 125 Degrees Celsius |
| Maximum Switching Current | 15 Amps |
| Maximum Switching Voltage | 12 Volts (DC) |
| Minimum Switching Voltage | 8 Volts (DC) |
