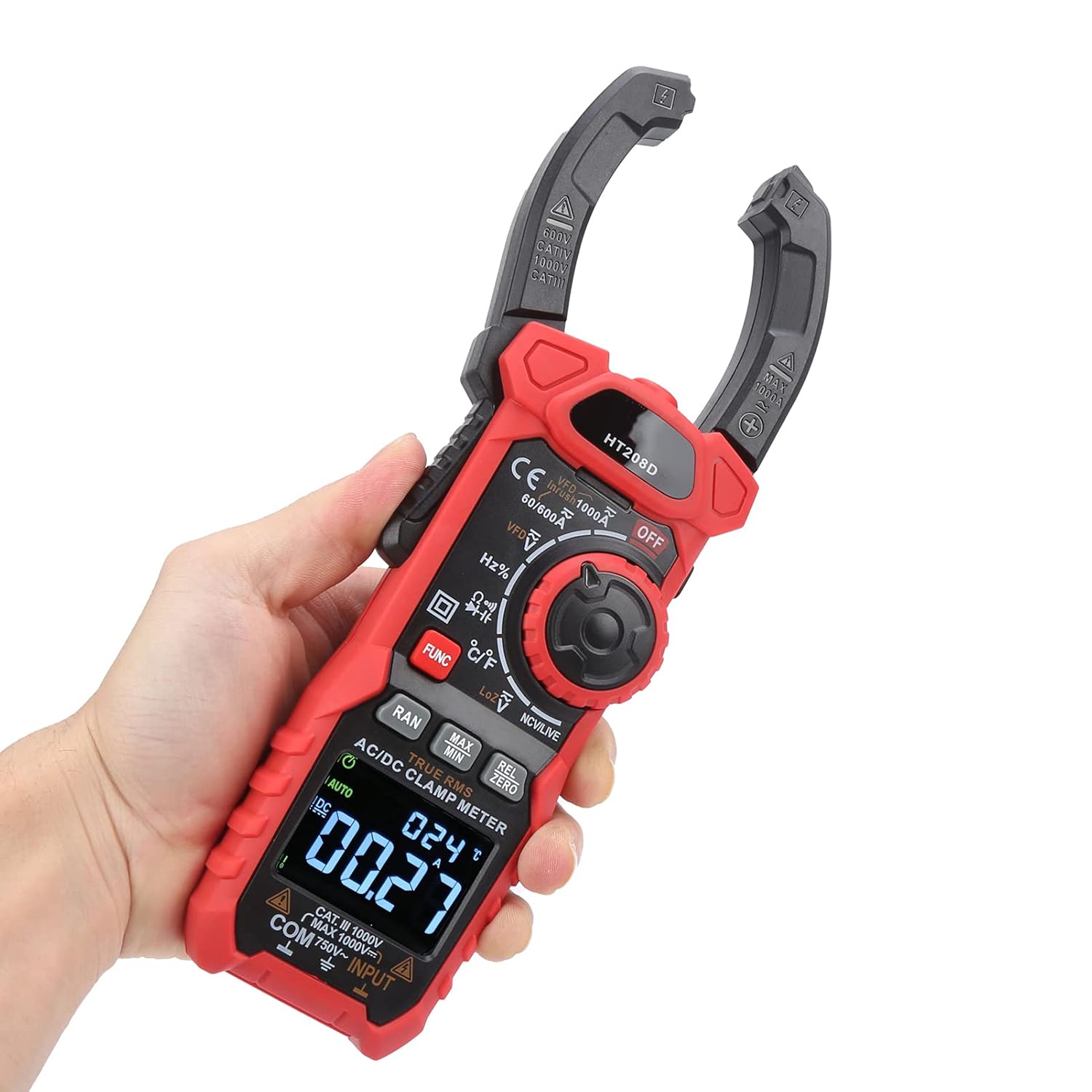

Clamp Meter, Digital Clamp Multimeter Current Clamp Tester, AC Current Voltage Tester with HT208D, Multifunction Electrical Meter for Household Wiring Diagnostics and Repair

Item Type: Digital MultimeterMaterial: ABSModel: HT208DBattery: 1.5V 3xAAA battery (Not Included)Purpose: Suitable for laboratory, field measurement, household and high current measurement.Safety: IEC 61010-1, pollution degree 2IEC 61010-2-032: CAT III 1000V / CAT IV 600VIEC 61010-2-033: CAT III 1000V / CAT IV 600VAltitude Work: Working Environment Temperature and Humidity: 0-40°C (Storage Environment Temperature and Humidity: -10-60℃ (relative humidity 70%, take out the battery)Temperature Coefficient: 0.1xAccuracy/℃ (28℃)The maximum voltage between the terminal and the ground: AC750V or DC1000VDisplay: 6000 Counter reading automatically displays the unit sign function according to the measured displacementOut of Range Indication: OL is displayed.Low Battery Indicator: when the battery voltage is lowExceed the normal working voltage, it will display CInput polarity indication: automatically display —Maximum Size of Jaws: 40mmAutomatic Power Off: About 15 minutesTechnical Index Range Accuracy Accuracy DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+3) AC Voltage 600mV/6V/60V/600V/750V ±(0.8%+3) DC Current 60A/600A/1000A ±(2.5%+5) AC Current 60A/600A/1000A ±(2.5%+5) resis tance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3) Capacitance 10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF ±(3.0%+3) Frequency 10Hz/100Hz/1kHz/10KHz/100KHz/1MHz/10MHz ±(0.5%+5) Temperature -40℃~1000℃ ±(1.0%+2) -40°F~1832°F ±(1.0%+2) Maximum count 6000 counts Automatic/Manual Mileage Continuity test (acousto-optic prompt) Diode test (buzzer prompt) Data retention NCV non- voltage detection (acousto-optic prompt) Backlight Flashlight DCA ZERO function Low Voltage Indication Automatic shutdown Real effective value VFD function

• Scope of application, suitable for frequency conversion power supplies, air conditioners and refrigerators and other refrigeration equipment and motor performance testing.
• Multifunctional clamp meter, measuring AC current, AC and DC voltage, resis tance continuity, temperature, capacitance, frequency test function.
• 1000A AC/DC professional clamp meter, non‑ voltage detection is suitable for laboratory, field measurement, household and large current measurement.
• With LCD digital display, full‑scale overload , data retention, and undervoltage indication.
• Rugged and , it is made of ABS material and can be used for a long time without fear of damage.
