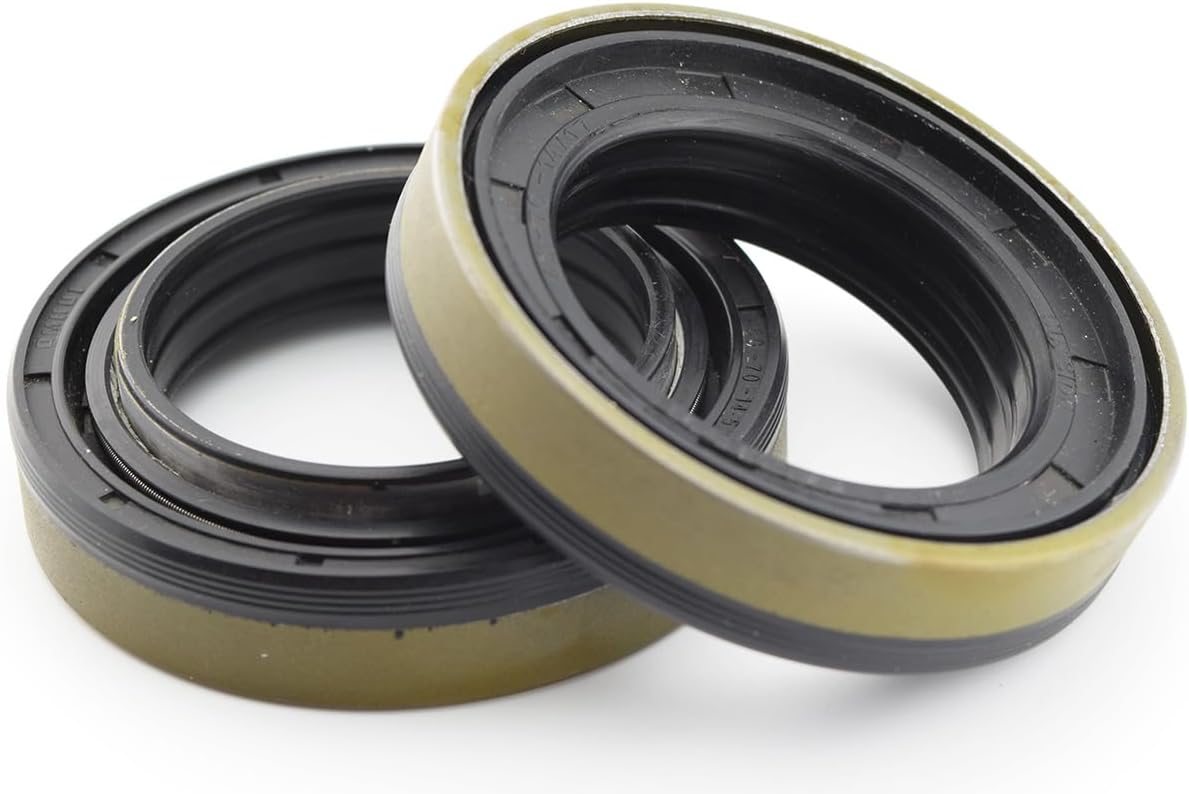

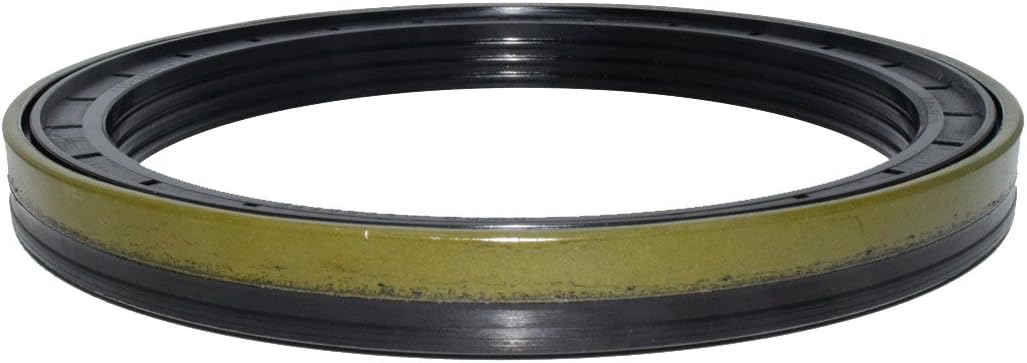

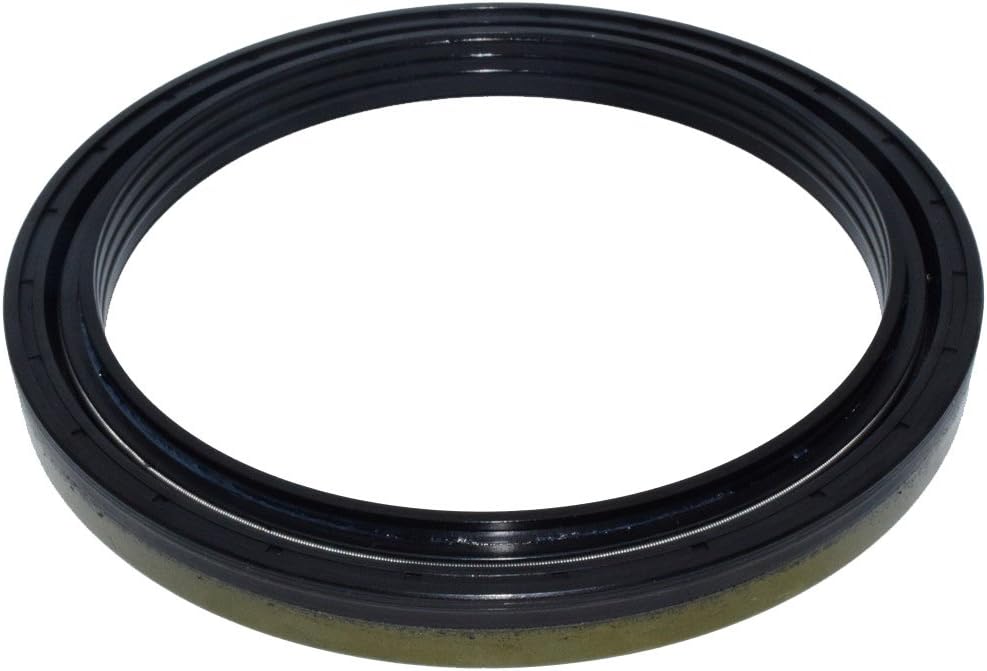

brand earthmoving equipment oil seal 130X160X14.5/16 CASSETTE type NBR Rubber OEM 12016448B

Cassette Oil Seals AdvantageOld solution can usually be replaced by Cassette Seal without change to housingThe shaft must not be machined on maintenance or seal replacementLengthening of maintenance interval for individual unitsShaft must not be hardened or groundOuter casing: elastomer / sheet metalDesign: special types, on enquirySpring-loaded sealing lipAdditional dust lipsRobust solutionMaterial: Acrylonitrile-butadiene rubber Material: Fluoro elastomerCode: NBR <80°C Code: FKM <100°CColor: Black Color: Red brownV: to 6m/s to 8 m/sP: max. 0.05Mpa/0.5 bar max. 0.05Mpa/0.5 barShaftTolerance: ISO h8Runout: IT 8Roughness: Rz=10...16μmHousing boreTolerance: ISO h8Roughness: Rz=10...16μmThe design of cassette oil seals has been optimized to provide excellent retention of either grease or oil and maximum protection against liquid or solid contaminants. The seals are made to order to meet the demands of each specific application. APPLICATIONAgricultural machinery - Tractors/hub - Tractors/propeller shafts - Harrows - Motorised cultivators - Tillers - Fertilizer spreading machineryConstruction machinery(road rollers, excavators, fork-lift trucks, mixers) - Axles: hubs - Axles: propeller shafts

• Oil seal type: Cassette Seal Type 3
• Size(mm): I.DXO.DXW / 130X160X14.5/16
• Material: NBR / Nitrile Rubber
• Application: Agricultural / Construction Machinery - wheel hub / propeller shaft / ZF bridge / drive shaft .......
• High resistance to dirt ingress
