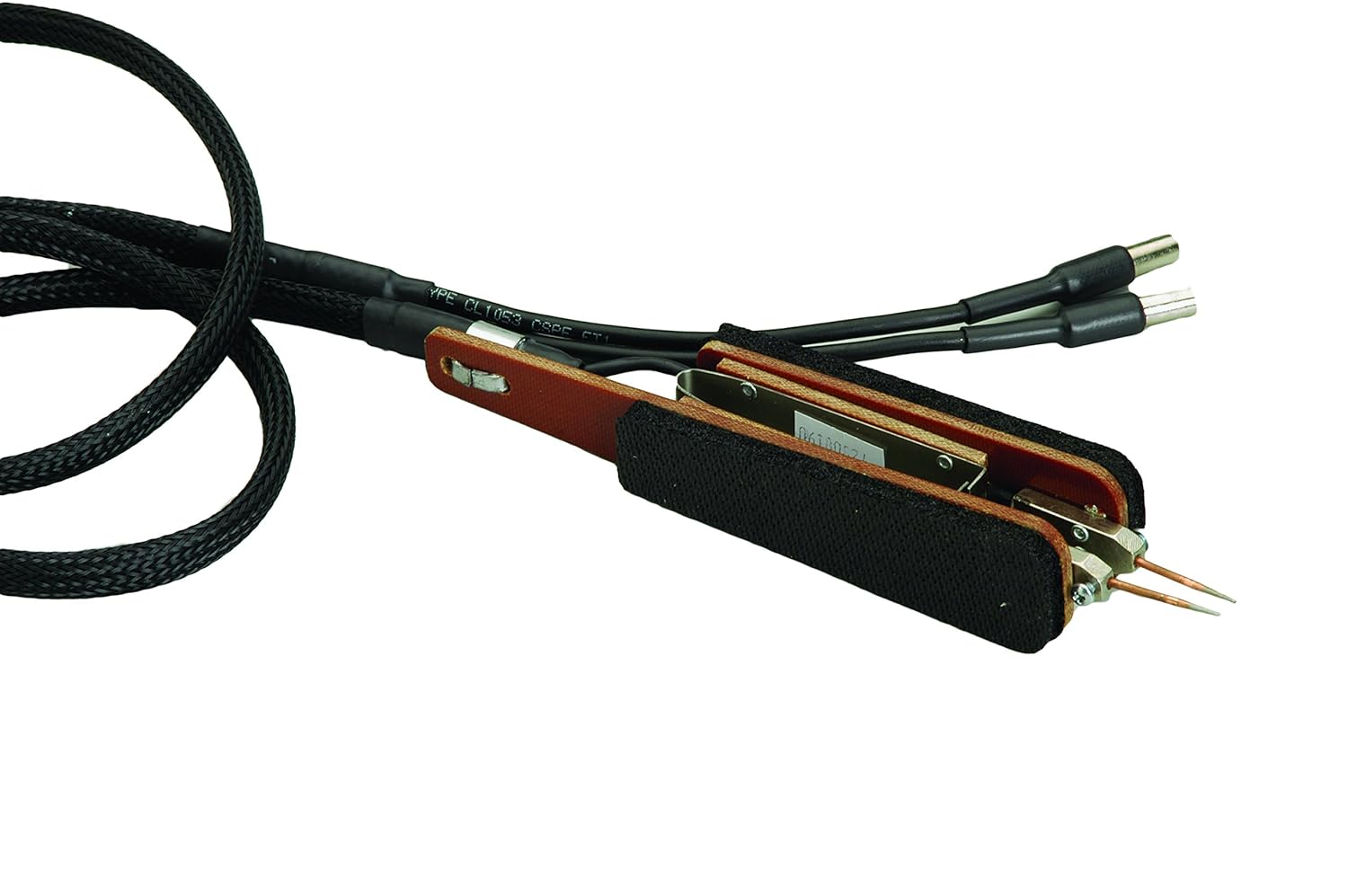

American Beauty 105127 Standard Tweezer Style Handpiece, 7" Length, 1/8" Electrode

The widest selection of resistance soldering handpieces in the world. Hand pieces are designed and built to provide absolute performance in even the toughest environments. By generating heat instantaneously and right at the point of contact, you are able to easily handle the historically difficult soldering jobs. Medium Tweezer-style Handpiece. Supplied with two 1/8" x 3" Copper-clad Stainless Steel Electrodes. This Handpiece features four-foot (1.22 m) 10 AWG high-stranded DLO cables (for flexibility), with taper pin quick connect terminals for connection to American Beauty Power Units (push in turning clockwise until snug). The handles are padded for operator comfort. When using a footswitch, the Handpiece\'s Tweezer design gives the operator the ability to grip parts while heating, then de-energize the Power Unit and continue to hold them in place until the solder joint cools. This Handpiece should not be operated above 400 watts. Maximum wattage that is shown reflects a 20-second maximum allowable heating duration. For shorter heating durations, higher wattages may be allowable. Opening between electrodes: 5/8".

• Copper-coated, stainless steel electrodes can be easily bent, allowing the user to customize the handpiece to their specific application
• RoHS compliant
• Tapered pins connection type
• 1/8" Electrode size
• 7-inch length
