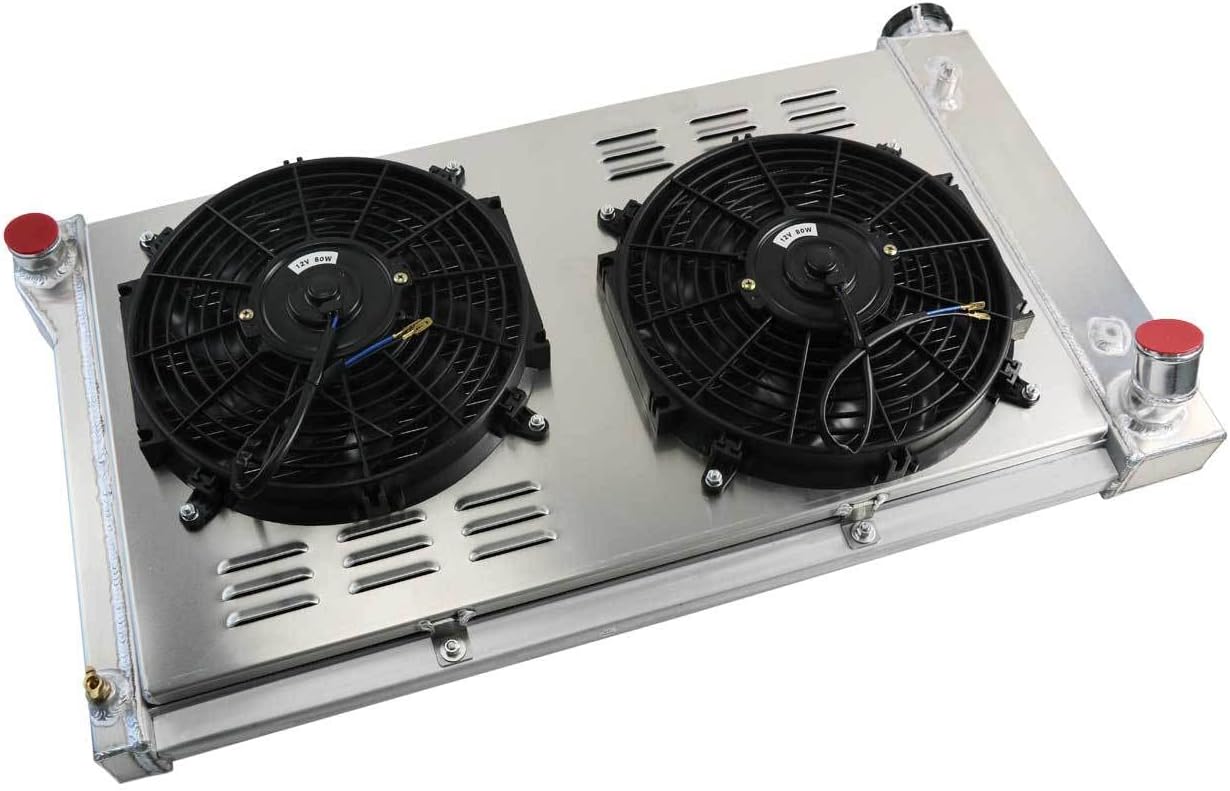

All Aluminum Radiator Fan for 1967-1972 70 Chevy Gmc Blazer C/K Series C10 C20 C30 K10 K20 K25 Pickup Trucks Suburban Van 3 Row Core Radiator with Shroud Fan Relay

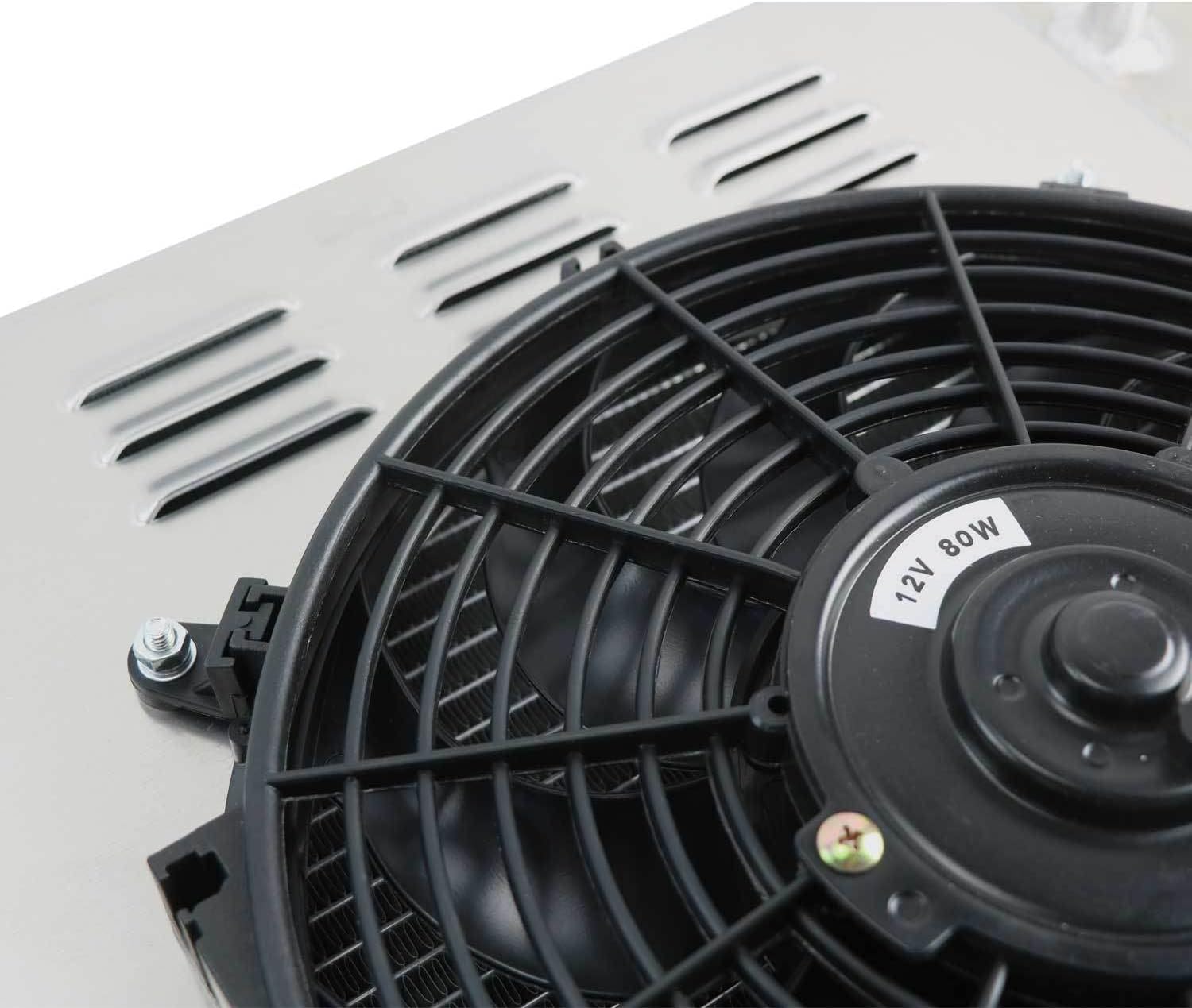

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND 2X12" FANS!! Radiator Size: Row: 3 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Dimensions: 17"H x 28-1/4"W Overall Dimensions: 19-1/4"H x 33-7/8"W Upper inlet: 1-1/2" located as Pictured Lower outlet: 1-3/4" located as Pictured Trans-cooler: Included Transmission: Automatic and Manual. Vehicle Fitment: For 1968-1972 Chevrolet C10 Pickup For 1967 1968 1969 1970 1971 1972 Chevy Blazer & GMC For 1967-1972 Chevy C10 C20 K10 K20 K30 For 1967-1972 Chevy GMC Truck, Blazer For 1967-1972 CHEVY TRUCK For Chevy Suburban 1967-1972 For 1967-1972 Chevy C/K Series Pickup Truck For Chevy Blazer & GMC Jimmy 1967-1972 For 1969-1972 Chevy K5 Blazer For Chevy GMC S/T Pickup Trucks For 1970-1972 Chevy Truck 28" Core For 1967-1972 GMC Chevy Suburban For 1967-1972 CHEVY TRUCK C10 C20 V8 For 1968-1972 GMC 35/3500 Pickup Truck For 1968-1972 GMC C15/C1500 Suburban 1967 1968 1969 1970 1971 1972 FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Why Choose Cubauto Radiator? 1. Covers vast selection of import and domestic applications 2. Stringently tested to guarantee optimum performance and dependability 3. Straightforward installation guaranteed 4. Carefully crafted to exceptional OE standards for precise fit,Aircraft AA5052 grade aluminum and with raw aluminum finish 5. Made from high-grade materials for prolonged lifespan 6. CNC machined filler neck and cap 7. OEM style brass petcock drain Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.

• This Cubauto 3 Row Radiator Compatible with 1967-1972 Chevy C/K C10 C20 30 Trucks Suburban... Core Size: 17"H x 28-1/4"W / Overall Size: 19-1/4"H x 33-7/8"W
• Aluminum Radiator Shroud Fan: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ; High performance racing design, improves cooling by 35 -45% Temp
• Cubauto Aluminum Chevy Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• This all Aluminum Radiator Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain; Direct OE replacement with drop-in precise fitment and easy installation.
• Note: 100% Leak Tested, Downflow Radiator, Durability Tested;Light Weight Direct Bolt-On OEM Fitment or Replacement, Stronger & Higher Capacity for Coolant than Stock One
