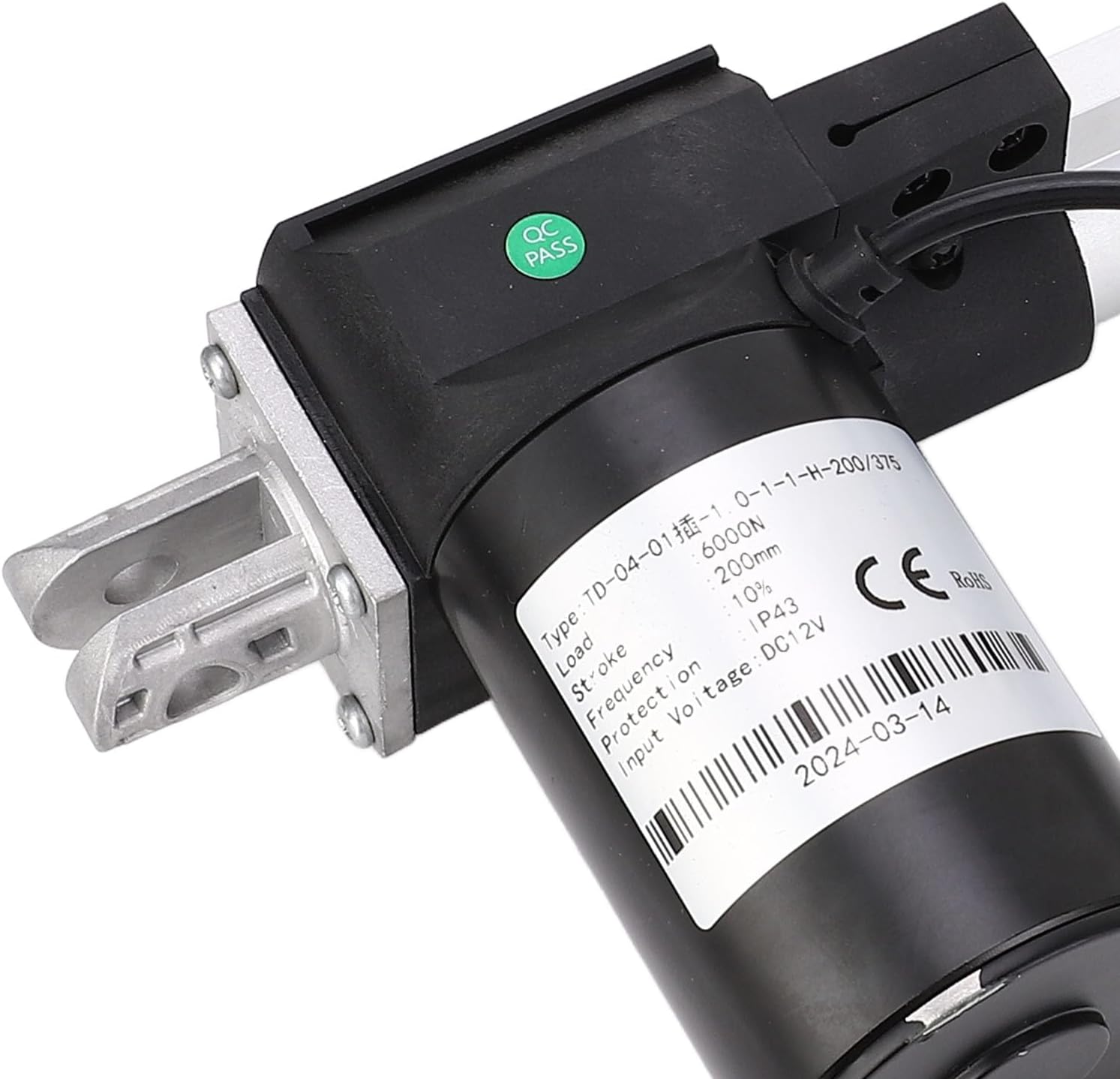

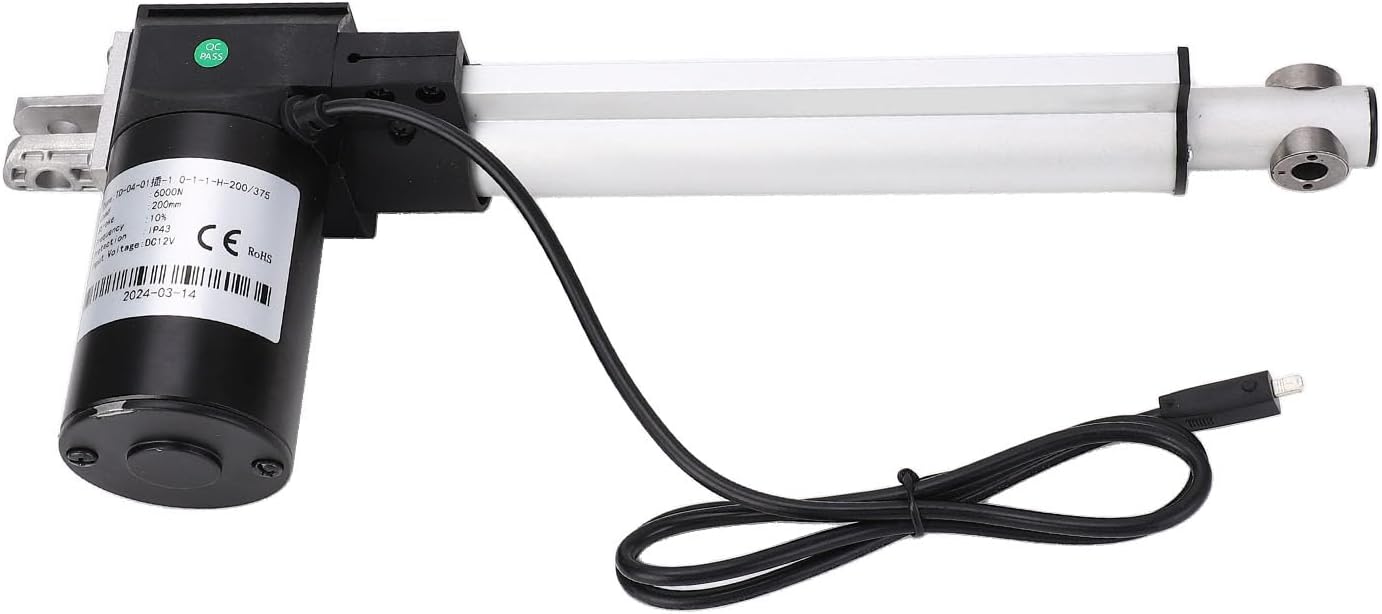

6000N Electric Linear Actuator Heavy Duty Motor 200MM Stroke for Medical Equipment Auto Car (12V)

Specification: Item Type: Electric Linear Actuator Material: Alloy steel Rated Power: ≤55W Stroke: 200mm Speed: 5mm/s Load: 6000N Horizontal Thrust: Approx. 600kg / 1322.77 lb Vertical Thrust: Approx. 300kg / 661.39 lb Working Frequency: 10% Noise Level: Class: IP43 How to Use: About the wiring: The plug on the pusher motor is used with our controller, if you do not use the matching controller to cut off the connector, there are 2 wires in the line to connect the positive and negative poles, positive and negative poles interchangeable control launch and retraction, you can add a positive and negative switch to control the expansion. Mounting size (distance between the two mounting holes with the push rod fully retracted): L=S (stroke) and 175mm. Mounting size (push rod extended to the head, spacing between the two mounting holes): 2xS (stroke) and 175mm. Pusher motor 2 wires (positive and negative), positive and negative poles are adjusted to control telescoping (lifting and lowering) The the speed, the lower the thrust; conversely the slower the speed, the higher the thrust. PackageList: 1 x Electric Linear Actuator

• Main Application: This electric linear actuator can be used as an execution machine in various simple or complex processes to achieve long distance control, centralised control or automatic control. It is mainly used in electric medical beds, industrial electric lifting systems, camera stands, etc.
• Working Principle: The motor is decelerated by gears and drives a pair of screw nuts. The rotational movement of the motor is turned into a linear movement, using the motor forward and reverse to complete the push rod action. Such as through a variety of levers, rocker or connecting rod and other mechanisms can be completed by turning, shaking and other complex movements. By changing the length of the lever arm, the stroke can be increased or enlarged.
• Easy Installation: Compare zero maintenance electric actuators with the fluid changes, leak repairs and other routine maintenance required to support hydraulic systems. An electric linear actuator is and easier to install than multiple hydraulic and pneumatic cylinders.
• Device Principle: The electric actuator is an electric drive that transforms the rotational motion of the motor into a linear reciprocating motion of the actuator.
• Robust Material: This electric actuator is made of alloy steel, which is robust and can withstand a variety of harsh working environments.
