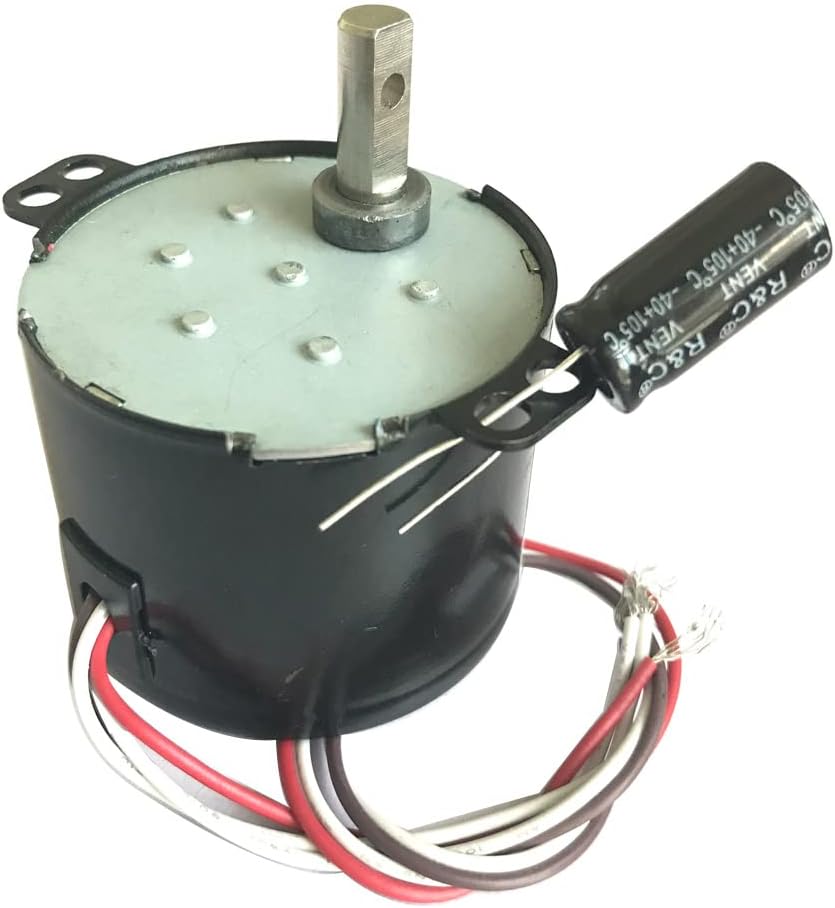

50KTYZ 24V 220V AC Micro Permanent Magnet Electric Synchronous Motor 220V 24V Slow Speed 1 to 120RPM Forward Reverse CW/CCW - (Speed: 24v 50rpm 1.5kgf.cm)

Introduction of the motor1. 50KTYZ Mini Permanent Magnet AC Synchronous Motor2. The motor has the following voltage options: AC 220V and AC 24V3. AC 220V . You can choose the no load speed have : 1rpm . 2.5rpm . 5rpm . 10rpm . 15rpm . 20rpm . 30rpm . 50rpmRated torque between 1.5 To 30 KG.CM. Select a no load speed in AC 220V, there will be corresponding rated torque, please refer to the parameter table below.4. AC 24V . You can choose the no load speed have : 2.5rpm . 30rpm . 50rpmRated torque between 1.5 To 25 KG.CM. Select a no load speed in AC 24V, there will be corresponding rated torque, please refer to the parameter table below.5. The direction of rotation of the motor : CW and CCW. Support Reversed6. Power : 6-10W7. Outstanding features of the motor: The motor is a permanent magnet synchronous motor . Internal is metal gears . Low speed and low noise 30dB . Support continuous operation for . Speed adjustment is not supported . of life under normal use . Use materials . Small size . High torque . Low power consumption . Light weight and easy to use8. Motor application range : Automatic barbecue shelf. Automatic dining table. Curtain machine. Crib. Stage Lighting. Dishwasher. Automation control, etc.9. For the torque, size, product picture or other informations of the motor, please see the following information.ThanksThe following is the motor parameter tableThe following is a description of the quality materials and structures of this motor.1. All metal gears2. The wire in the rotor is made of pure copper. It is more conductive,resistant to temperature and prolongs the life of the motor.3. Using imported lubricating oil, it effectively controls the speed of motor temperature rise, which makes the motor rotate more smoothly.The size is for reference only,the measurement will be slightly different,please pay attention before buyingWiri

• Speed: 24v 50rpm 1.5kgf.cm
