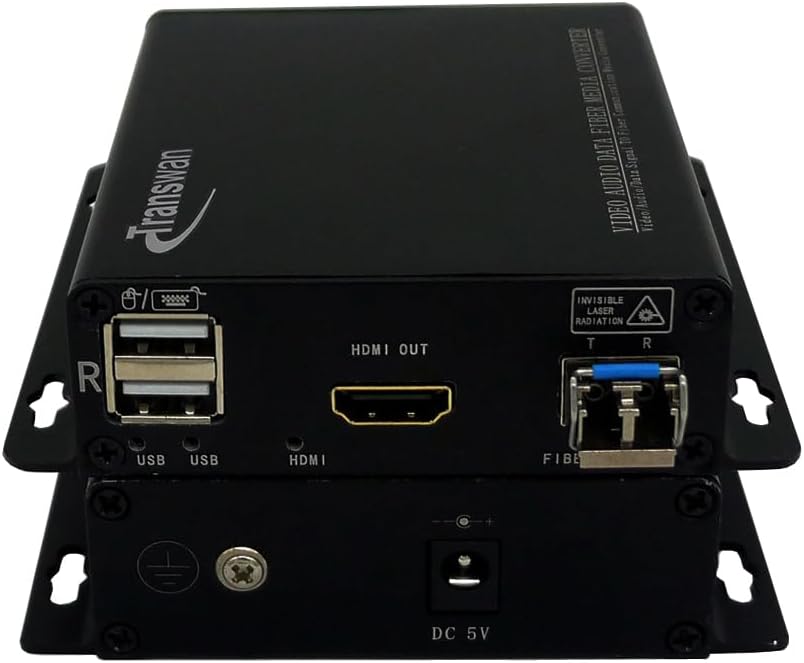

4K HDMI Over Fiber Extender with Keyboard & Mouse USB Ports to 10 Kilometers with 10 Gbps SFP, Max 4096 x 2160@30P (4K @ 30Hz)& Uncompressed Signal, HDCP Compliance

BY-KVM-612DF includes a transmitter and a receiver which is a high-speed, HDCP compliant fiber optic transport system capable of distributing 4K/2K HDMI and USB (keyboard or mouse) signals over only 2 fiber cables. Performance: Compliance: DVI v1.0, HDMI v1.4, HDCP v1.4 Maximum Pixel Clock Frequency:up to 340 MHz Maximum Video Bit Rate:up to 3.4 Gbps per color Color Depth:up to 16 bits/pixel Digital Audio:Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio HDTV Formats:all HDTV resolutions including 1080p, 2K and 4K (UHD) formats PC Resolutions: up to 4096x2160 / 24p, 30p (4K @30Hz) Optical: Optical wavelength:1310nm Fiber Cable Type / Max Length:300 meters over 62.5/125um MMF，500 meters over 50/125um MMF, 10 Kilometers over 9/125μ SM fiber Interfaces: HDMI Input / HDMI Output:19-pin female HDMI connectors Optical connector:2 x LC Mechanical: Dimensions: 104 x 104 x 28 mm Weight:700g per pair Environmental: Operating Temp:0° to +50° C Storage Temperature:-20° to +70° C Humidity (storage / operating):10% to 90% (non-condensing) Power Source Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A Maximum Power Consumption: TX Unit: 3.5 watts RX Unit: 3.5 watts USB interface TX: 1 port，connect to PC/ HDMI source RX: 2 ports, connect to Cable keyboard or mouse Application: 1. Digital entertainment centers 2. Retail stores 3. AV events that require reliable and long-distance distribution. Package: 1. 1 x transmitter. 2. 1 x receiver. 3. 2 x Power supply Adapters. 4. 1 x Manual.

• Supports 4K (UHD) resolution formats up to 4096x2160 / 24p/30p (4K @30Hz); Support USB ports for keyboard or mouse.
• Max extension distance 10 kilimeters over 2 core Single-mode Fiber or 500 Meters over 2 core Multi-mode Fiber
• Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
• 10G SFP optical module enable the un-compressed signal for the flawless image quality
• An HDMI input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by 10G SFP transmitter module for transmission over fiber optic. On the display side, an 10G SFP receiver module converts the light pulses back to an HDMI and USB(keyboard or mouse) signals. These features make the equipment a powerful solution for digital display applications that require Hi-quality streaming video.
