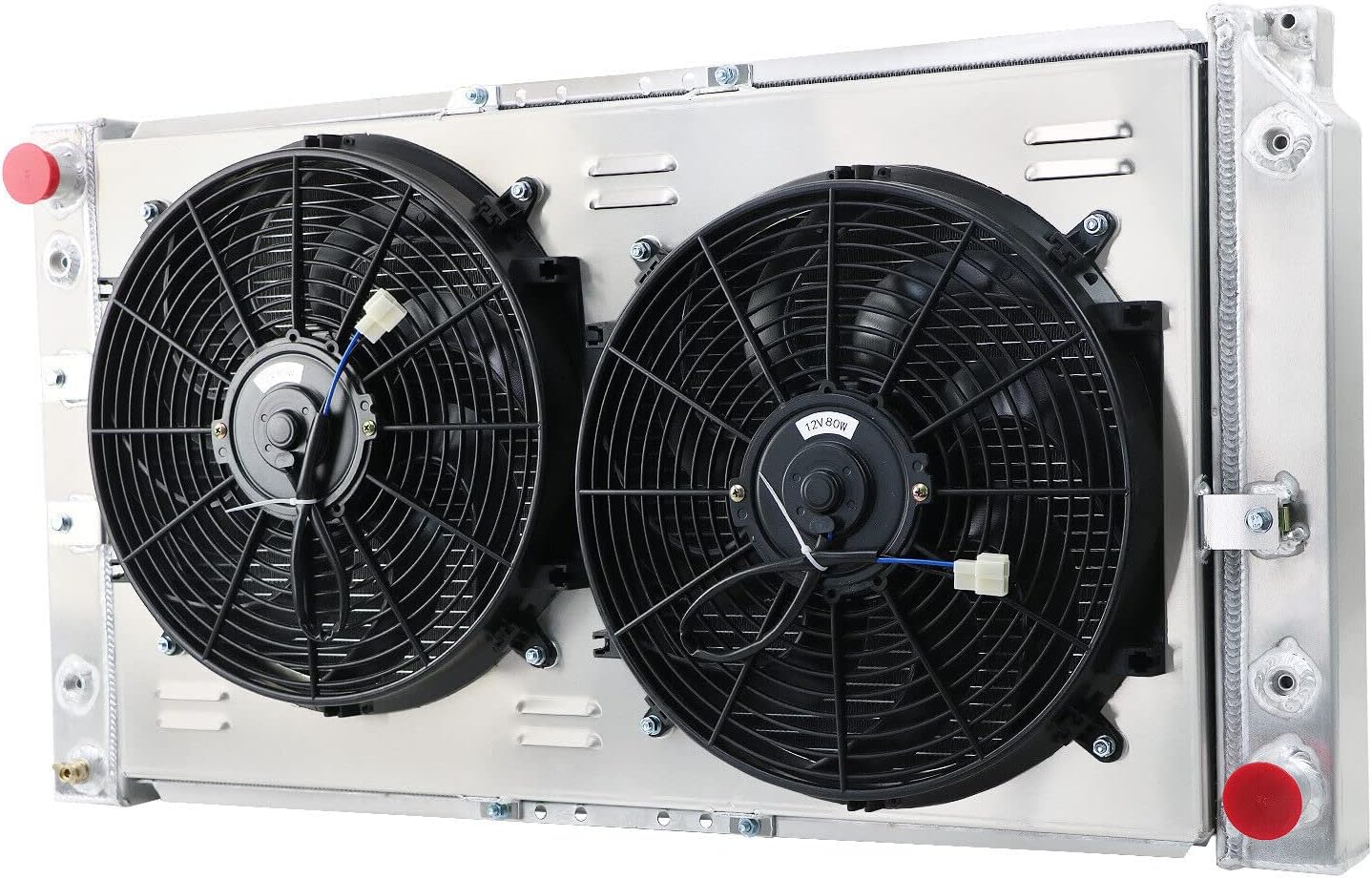

4 Row Core Radiator for 1994-96 95 Chevy Caprice Impala/Buick Roadmaster/Cadillac Fleetwood 5.7L V8 GAS Full Aluminum Radiator 1995 1996 94 Chevy 5.7l Radiators Shroud Fan Relay Kit
Product details
| Management number | 214045616 | Release Date | 2026/04/12 | List Price | $151.60 | Model Number | 214045616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Vehicle Fitment: For 1994 Chevrolet Caprice Classic LS Sedan 4-Door 5.7L V8 GAS For 1994-1996 Chevrolet Caprice Classic Sedan 4-Door 5.7L V8 GAS For 1994-1996 Chevrolet Caprice Classic Wagon 4-Door 5.7L V8 GAS For 1994-1996 Chevy Impala SS Sedan 4-Door 5.7L V8 GAS For 1994 1995 Buick Roadmaster Base 5.7L V8 GAS For 1996 Buick Roadmaster Collector's Edition 5.7L V8 GAS For 1996 Buick Roadmaster Estate Wagon Collector's Edition Wagon 4-Door 5.7L V8 GAS For 1994 1995 Buick Roadmaster Estate Wagon Wagon 4-Door 5.7L V8 GAS For 1996 Buick Roadmaster Limited Collector's Edition Sedan 4-Door 5.7L V8 GAS For 1994 1995 Buick Roadmaster Limited Sedan 4-Door 5.7L V8 GAS For 1994-1996 Cadillac Fleetwood Base Sedan 4-Door 5.7L V8 GAS For 1994-1996 Cadillac Fleetwood Brougham Sedan 4-Door 5.7L V8 GAS Radiator Size: Brand: Cubauto 4-Row Core Size: 30 1/2"WIDTH x 17" HEIGHT Overall size: 36" WIDTH x 18 5/8" HEIGHT Tanks Sizes: 2 3/4 x 18 5/8 Inlet Hose Connection: 1 1/2" Driver Side Outlet Hose Connection: 1 1/2 "Passenger Side Transmission Oil Cooler: Yes Passenger Side Engine Oil Cooler: Yes Driver Side Fan Specification: Diameter : 14'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 80W Number of Blades: 8 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 2250cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Fan Thickness: 2.64" Thermostat Kit: Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.
- ►Easy To Install: Cubauto Brand-new radiator engineered and manufactured to meet original specifications for quick installation. Direct fit and built to last long with high quality aluminum core and aluminum tanks preventing corrosion.
- ►Model Application:For 1994-1996 CHEVY CAPRICE 5.7L;For 1994-1996 CHEVY IMPALA 5.7L; For 1994-1996 BUICK ROADMASTER 5.7L;For 1994-1996 CADILLAC FLEETWOOD 5.7L
- ►Full Aluminum Radiator: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
- ►Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
- ►Do not hesitate to get one! Package Include: 1 X 4-Row AA5052 Aluminum Radiator;1 X AA5052 Aluminum Shroud; 2 X 14" Fans (Includes mounting kits); 1 X Thermostat Relay Kit
| Brand | Cubauto |
|---|---|
| Model | 4 Row Radiator Shroud Fan For 1994~96 Chevy Caprice Impala Buick Roadmaster |
| Item Weight | 22 pounds |
| Manufacturer | Cubauto RealCooling Parts |
| Item model number | Radiator Shroud Fan |
| Package Dimensions | 39.96 x 24.41 x 7.48 inches |
| Manufacturer Part Number | CUBA-ZLP-0200 |
