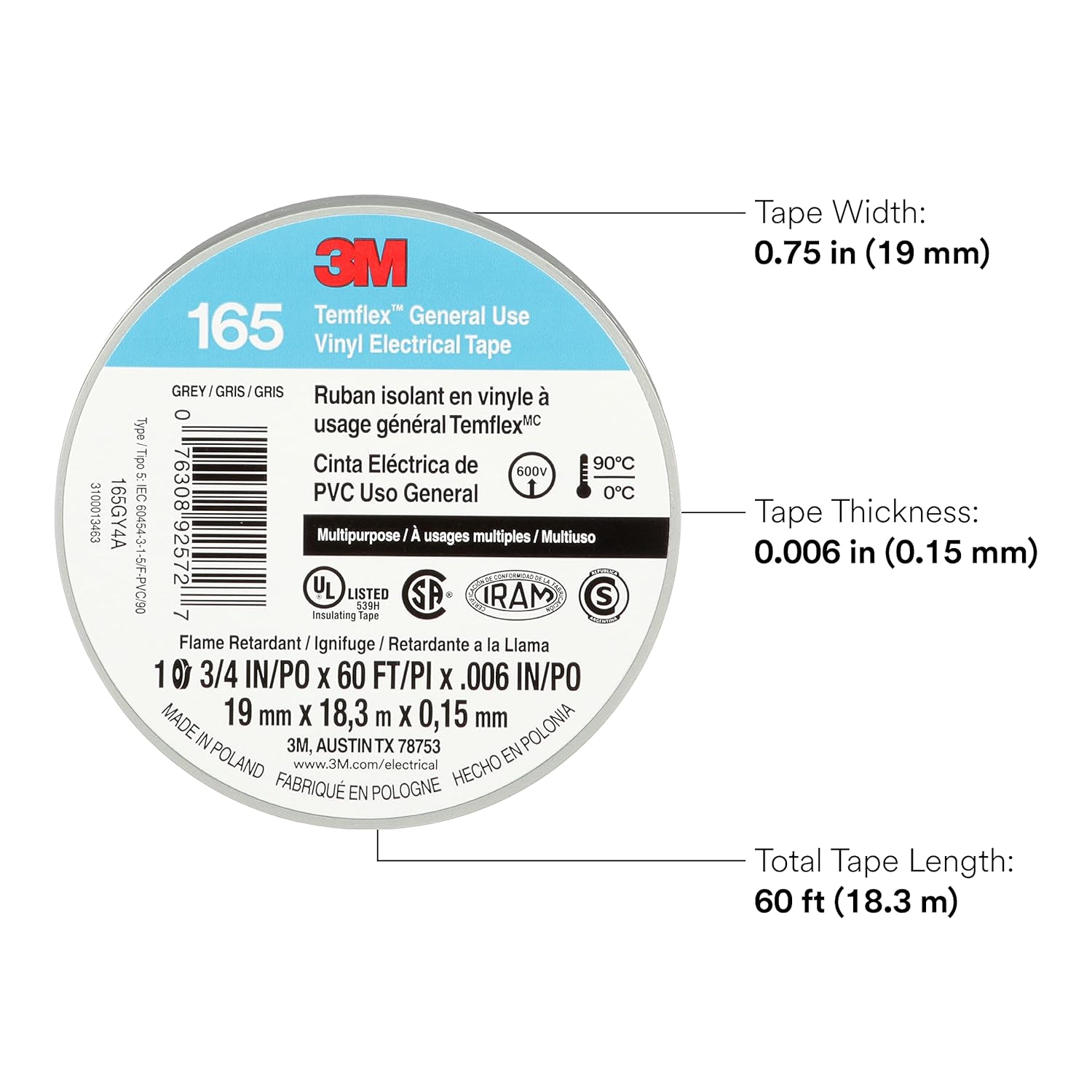

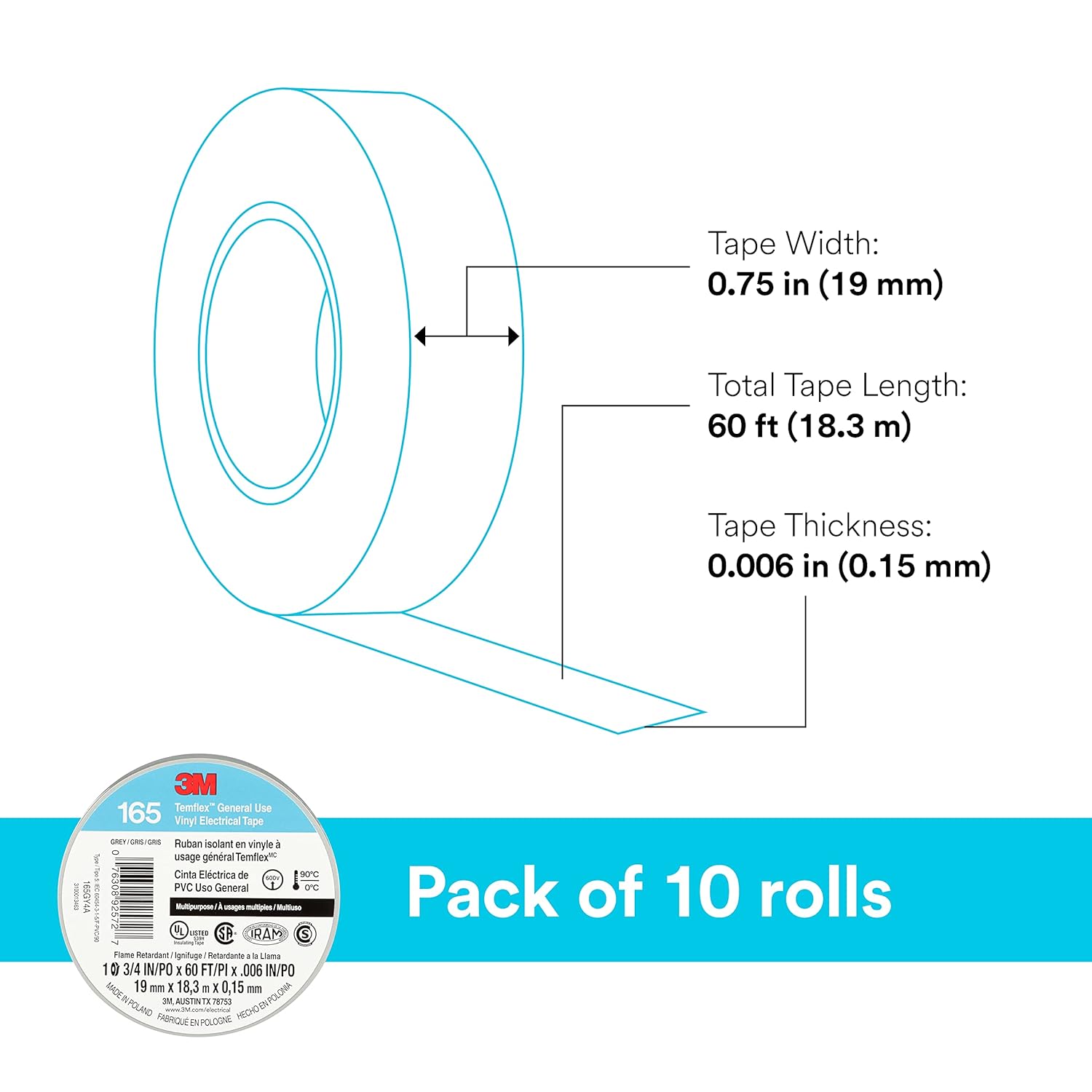

3M Temflex Multi-Purpose Vinyl Electrical Tape 165, Gray, 3/4 in x 60 ft (19 mm x 18 m), 10 Roll Pack
Product details
| Management number | 211292406 | Release Date | 2026/04/04 | List Price | $12.19 | Model Number | 211292406 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
3M Temflex Vinyl Electrical Tape 165 is a 6-mil thick, multi-purpose vinyl insulating tape available in 10 colors in 10 roll packs. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 32F (0C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed, CSA and VDE Certified. Installation Techniques: 3M Temflex Vinyl Electrical Tape 165 shall be applied in half-lapped layers with sufficient tension to produce a uniform wind (for most applications this tension will reduce the tape width to approximately 5/8 of original width). On pigtail splices, the tape shall be wrapped beyond the end of the wires and then folded back, leaving a protective cushion to resist cut-through. Wrap tape up-hill, taping from a smaller diameter surface to a larger diameter surface. Apply the tape with no tension on the last wrap to help prevent flagging.
- Resists abrasion, moisture, alkalis, solvents, acids and varying weather conditions
- Flame-retardant and inhibits the corrosion of electrical conductors
- Made of durable elastic PVC and a pressure-sensitive rubber-based adhesive
- Multi-purpose vinyl-insulating tape, compatible with rubber and synthetic splicing compounds
- Withstands a temperature range of 32 to 194F (0 to 90C)
- UL Listed, CSA and VDE Certified
- For industrial/occupational use only. Not for consumer sale or use
| Color | Gray |
|---|---|
| Size Name | 3/4 in x 60 ft |
| Brand Name | 3M |
| Unit Count | 600.0 Feet |
| Item Weight | 1.5 Pounds |
| Manufacturer | 3M |
| Material Type | Polyvinyl Chloride, Rubber |
| Item Thickness | 6 Mils |
| Item Type Name | 3M Temflex Multi-Purpose Vinyl Electrical Tape 165, Gray, 3/4 in x 60 ft (19 mm x 18 m), 10 Roll Pack |
| Number of Items | 1 |
| Compatible Material | Rubber, Vinyl |
| Included Components | 10 Electric Tape Rolls |
| Surface Recommendation | Plastic |
| Water Resistance Level | Water Resistant |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 194 Degrees Fahrenheit |
| Recommended Uses For Product | Electrical |
| Item Dimensions L x W x Thickness | 0.75"W x 0.01"Th |
| Global Trade Identification Number | 30076308925728 |
| Other Special Features of the Product | Rubber-based |
