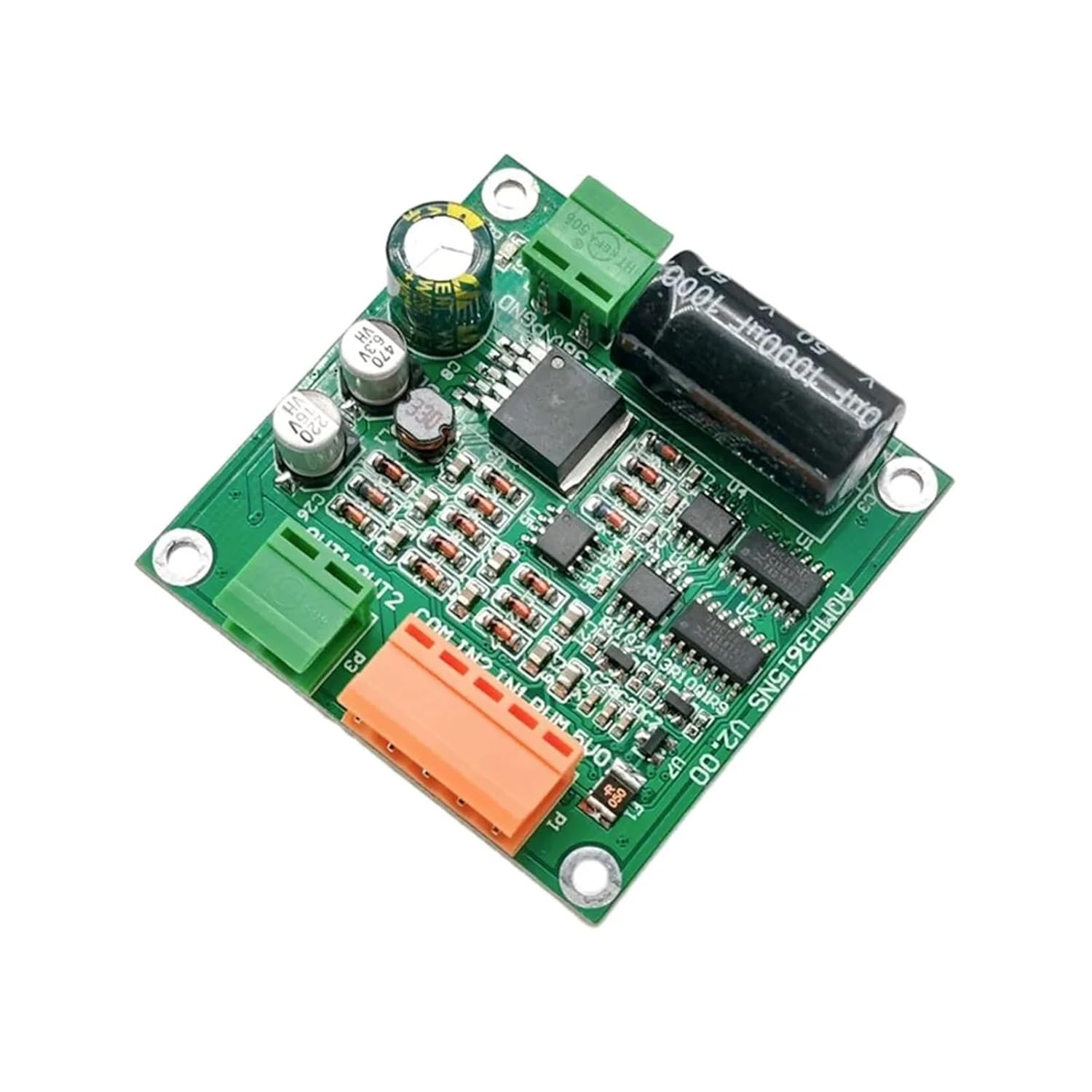

1PCS 12V 24V 36V Motor Drive Board 360W Motor Speed Controller Forward Reverse Rotation Motor Controller for Smart Car

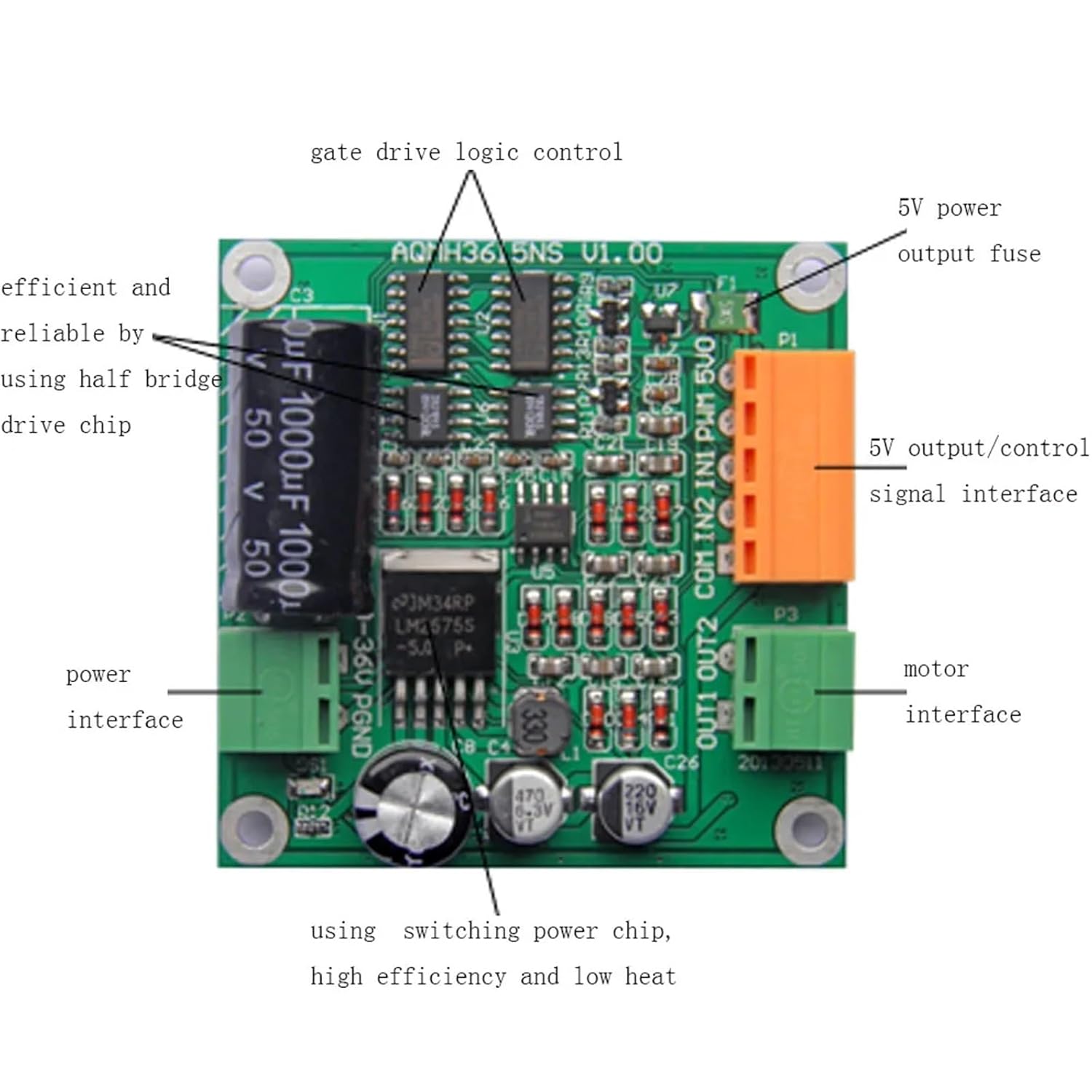

Speed Control12V 24V 36V Motor Drive Board 360W Motor Speed Controller Forward Reverse Rotation Motor Controller for Smart CarFeatures:Extremely small size, only 5.5cm×5.5cm.Support voltage range 6.5-40V, undervoltage protection.Maximum load current 12A(without heat dissipation), 15A(with heat dissipation), Instantaneous peak current 110A.Three-wire control speed regulation, positive and negative rotation and braking.Support full PWM, can directly use the key to control positive and negative rotation, PWM effective range of 0.1%~100.0%.It can provide 5V power supply for single chip computer.Interface ESD protection.Specifications:Motor power input voltage: DC6.5V~40VMaximum load current:12A(no heat dissipation)15A(with heat dissipation)Output power:12V 180W24V 360W36V 540WPeak current: 110AMaximum output current of 5V power supply: 500mAControl signal high level voltage (VHI) : 2.0V~5.5VControl signal low-level voltage (VLI) : 0V~0.8VControl signal current: 50uAPWM effective range: 0.1 %~100.0%PWM minimum effective pulse width: 200nsNotice: The board has no current detection. If the motor is overloaded or the lock current is too large, it will burnWhen using 15A current, a heat dissipation must be added, when the board is overheated, must reduce the operating currentNote: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures.2. Please allow 1-3cm differences due to manual measurement.Package Included:1x Motor Drive Board
