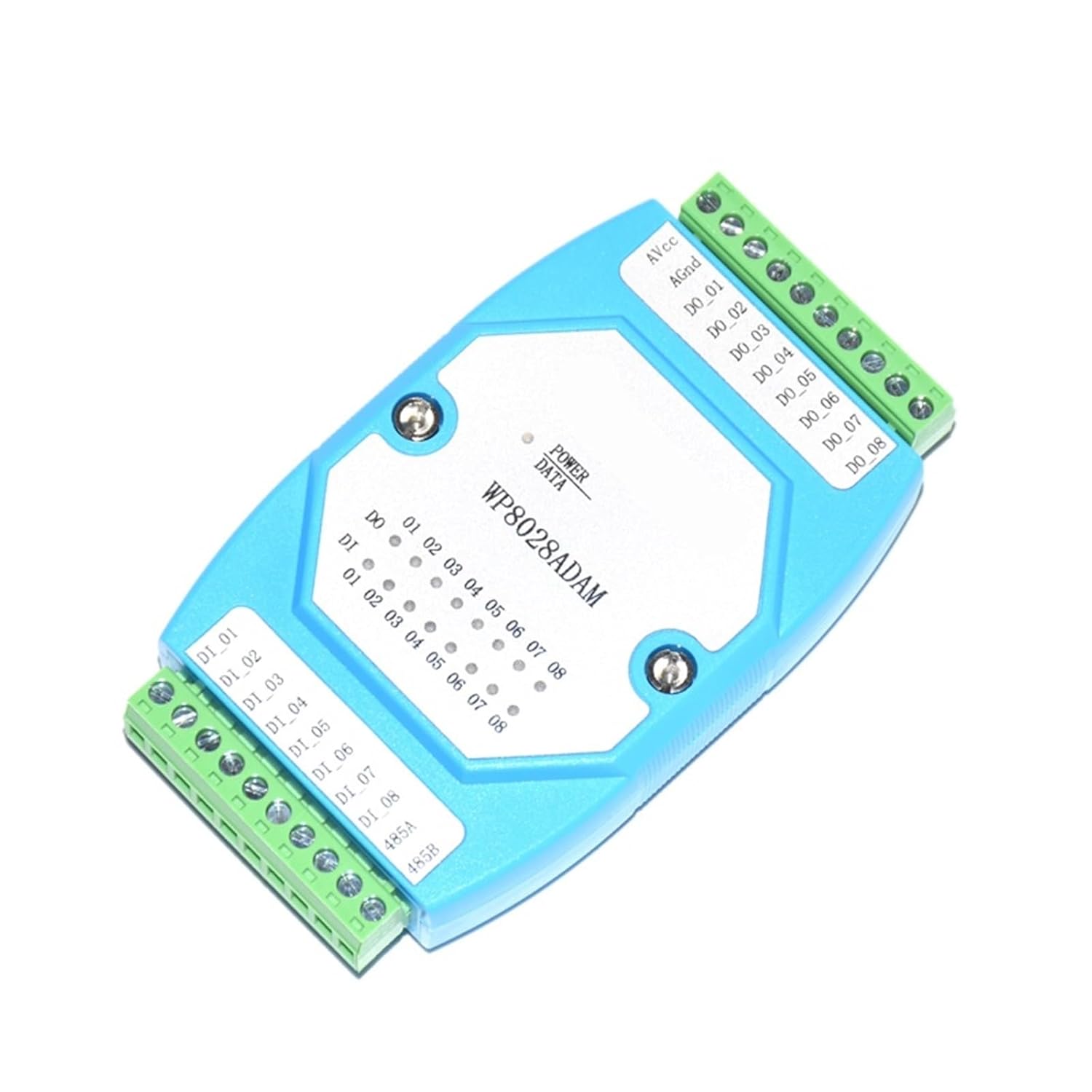

1Pc Digital Input and Output Module Isolated 8DI/8DO RS485 MODBUS RTU WP8028ADAM NPN
Product details
| Management number | 220187449 | Release Date | 2026/05/03 | List Price | $41.86 | Model Number | 220187449 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Signal ConvertersThe main parameters:Digital input channel: 8 channels (active low)Digital output channel: 8 channels (NPN transistor open collector output 500mA)Operating temperature range: -20 ° C ~ 70 ° CExternal power supply: DC9V~30V/2WIsolation protection: 1500VDCInstallation method: standard DIN rail mounting or screw mountingDimensions: 125*73*35mmFeatures:RS485 MODBUS RTU standard communication, can be networked with configuration software,, industrial touch screen, etc.With communication and input and output status indicatorsCommunication circuit adopts protection and anti-interference designCan be widely used for signal acquisition and control of industrial field devicesInstructions for use:1. Connect the computer and module with RS485 converter2. Connect the 12V or 24V external power supply to the module and power it on. To avoidunnecessary damage, please check whether the positive and negative terminals of thepower supply are connected correctly before powering on.3. Open the debugging software, select the corresponding module model, enter the functionvdebugging or parameter setting interface4. Set the correct communication parameters, open the communication port5. Select the appropriate settings, acquisition and control optionsPackage:1* analog input module
- Signal Converters
- Digital input and output module isolated 8DI/8DO RS485 MODBUS RTU WP8028ADAM NPN
| Brand Name | KDNHVRQY |
|---|---|
| Part Number | GFGTARCBT |
| Manufacturer | KDNHVRQY |
