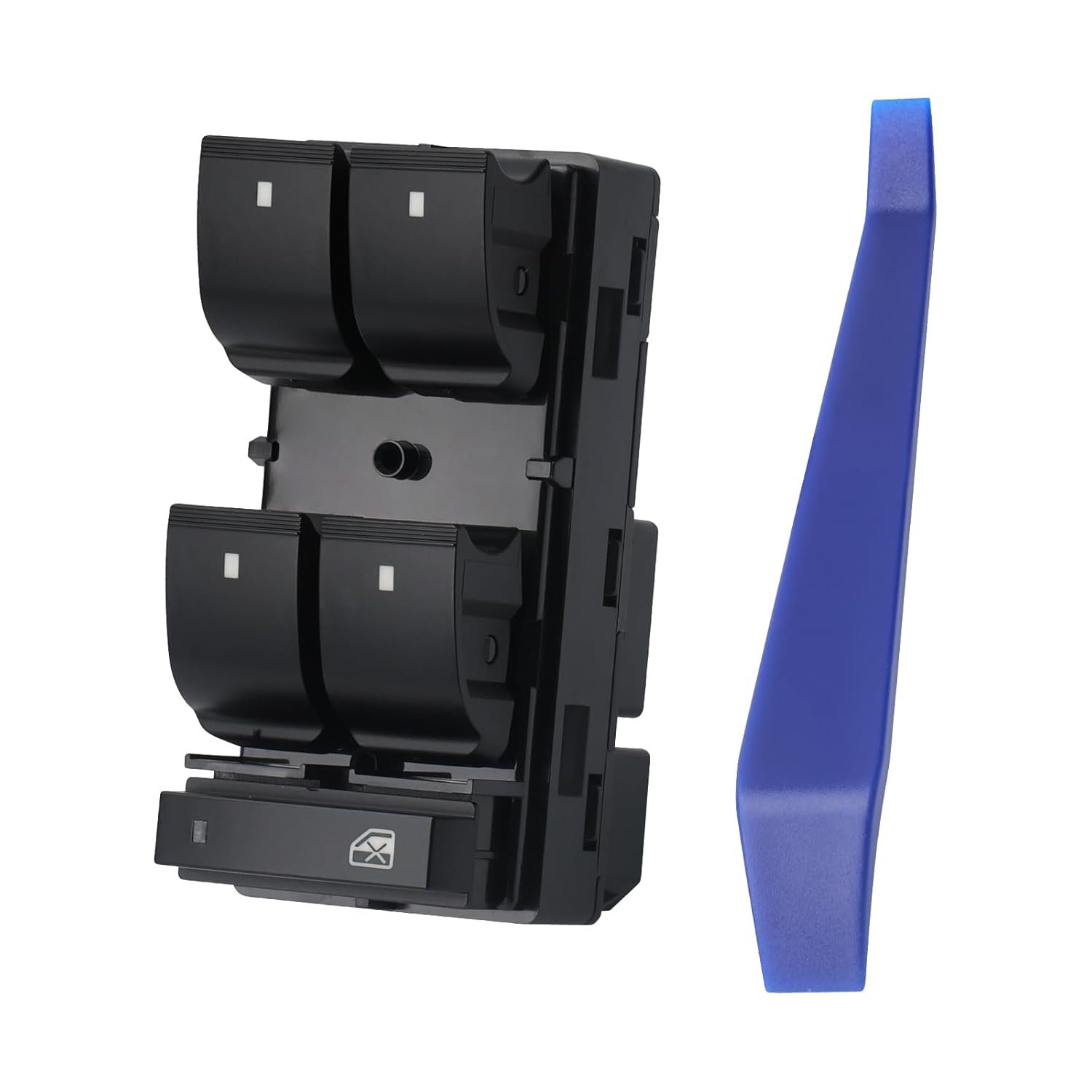

15883323 Power Window Master Control Switch | Bezel | Front Drive Side | Compatible with 2003-2007 Chevy Avalanche Silverado Tahoe GMC Sierra Yukon Cadillac Escalade
Product details
| Management number | 212475341 | Release Date | 2026/04/06 | List Price | $15.64 | Model Number | 212475341 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Features】 The Power Window Master Control Switch is located on the front left driver's side, which control rearview mirror adjustment, window adjustment, window locks, and door locks. Made of high quality ABS material, durable, not easy to deform, longer service life.
- 【Compatible Vehicle】The driver side power window switch compatible with Chevy 03-06 Avalanche 1500 2500, 07 Avalanche, 03-06 Silverado 1500, 07 Silverado 1500 Classic, 03-07 Silverado 2500 3500, 07 Silverado 3500 Classic, 03-07 Suburban 1500 2500, 03-07 Tahoe, with GMC 03-06 Sierra 1500, 07 Sierra 1500 Classic, 03-06 Sierra 2500, 07 Sierra 2500 Classic, 03-06 Sierra 3500, 07 Sierra 3500 Classic, 03-07 Yukon, 03-07 Yukon Xl 1500, Cadillac 03-06 Escalade.
- 【Replace Part Number】15883323, 901-075, 901075, DWS220, 15112974, 15181220, 15195303, 15202853
- 【Easy to Install】This power window control switch functions properly and is plug-and-play. Simply remove the original faulty power window switch and install this one.NOTE: If the button and pin types do not match exactly, this product will not be compatible with your vehicle. Please check the original vehicle switch before ordering.
- 【Non-working processing method】 If the newly installed switch button does not work most likely because the vehicle still recognizes the old switch, the following operations are required.1. Press the left front door button (ie the button that controls the driver's seat window) down to the bottom and stay for 5~8 seconds.2. When the button is lowered for 5~8 seconds, please push the button up to the end and stay for 5~8 seconds, then turn off the vehicle and restart the vehicle to complete the match.Note: Please pay attention to the mating plug before installing the switch, and clean the excess dust.
| Color | BLACK |
|---|---|
| Model | OE15883323 |
| Terminal | Button |
| Brand Name | wuangki |
| Unit Count | 1.0 Count |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | plug in |
| Manufacturer | wuangki |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Current Rating | 1 Kiloamps |
| Operation Mode | ON-OFF |
| Item Dimensions | 10 x 3.9 x 3.9 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 12 Volts |
| Specification Met | Oe,oem |
| Included Components | NO |
| Number of Positions | 8 |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | IP00 |
