1310nm/32dB+1550nm/30dB+850nm/20dB+1300nm/26dB SM+MM Fiber OTDR Tester(Built-in OPM OLS VFL and Event Map) Optical Time Domain Reflectometer with FC+SC+ST+LC UPC&APC Connector-SS313T-4A
Product details
| Management number | 219326515 | Release Date | 2026/05/03 | List Price | $839.60 | Model Number | 219326515 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ★1310nm+1550nm+850nm+1300nm 32dB+30dB+20dB+26dB★-While testing using an OTDR, the wavelength set on the OTDR should match the wavelength that is used for transmission.SS313T-4A series OTDR provides a wavelength of 1310nm+1550nm+850nm+1300nm and a dynamic range of 32dB+30dB+20dB+26dB.The maximum test distance is up to 120km/75mi(1310nm+1550nm), 6km/3.8mi(850nm), 60km/38mi(1300nm).
- ★OTDR OPM OLS and VFL★-SKYSHL SS313T-4A combines all essential fiber tests in one handheld with Optical Time Domain Reflectometer(OTDR-1310nm+1550nm+850nm+1300nm/32dB+30dB+20dB+26dB),visual fault locator (VFL-Max test distance 10km), optical power meter (OPM-850-1625nm/-50~+26db), and Optical Light Source(OLS-1310nm+1550nm+850nm+1300nm).
- ★Extremely Short EDZ/ADZ★-The SKYSHL SS313T series OTDR leverages the most sophisticated optical technology to provide the shortest event dead zone (0.8m for SM and 1m for MM ) and attenuation dead zone (4m for SM and 5m for MM),This technological advancement allows SS313T OTDR to detect and measure closely spaced faults.
- ★Intelligence and Sturdy★-The Auto test, Event map lets you take advantage of the full power of your OTDR—bringing automation to a new level and enabling untrained technicians to become test experts in no time. It makes use of a lithium battery with large capacity allowing for up to 15 hours of use,making it suitable for long-time outdoor work.

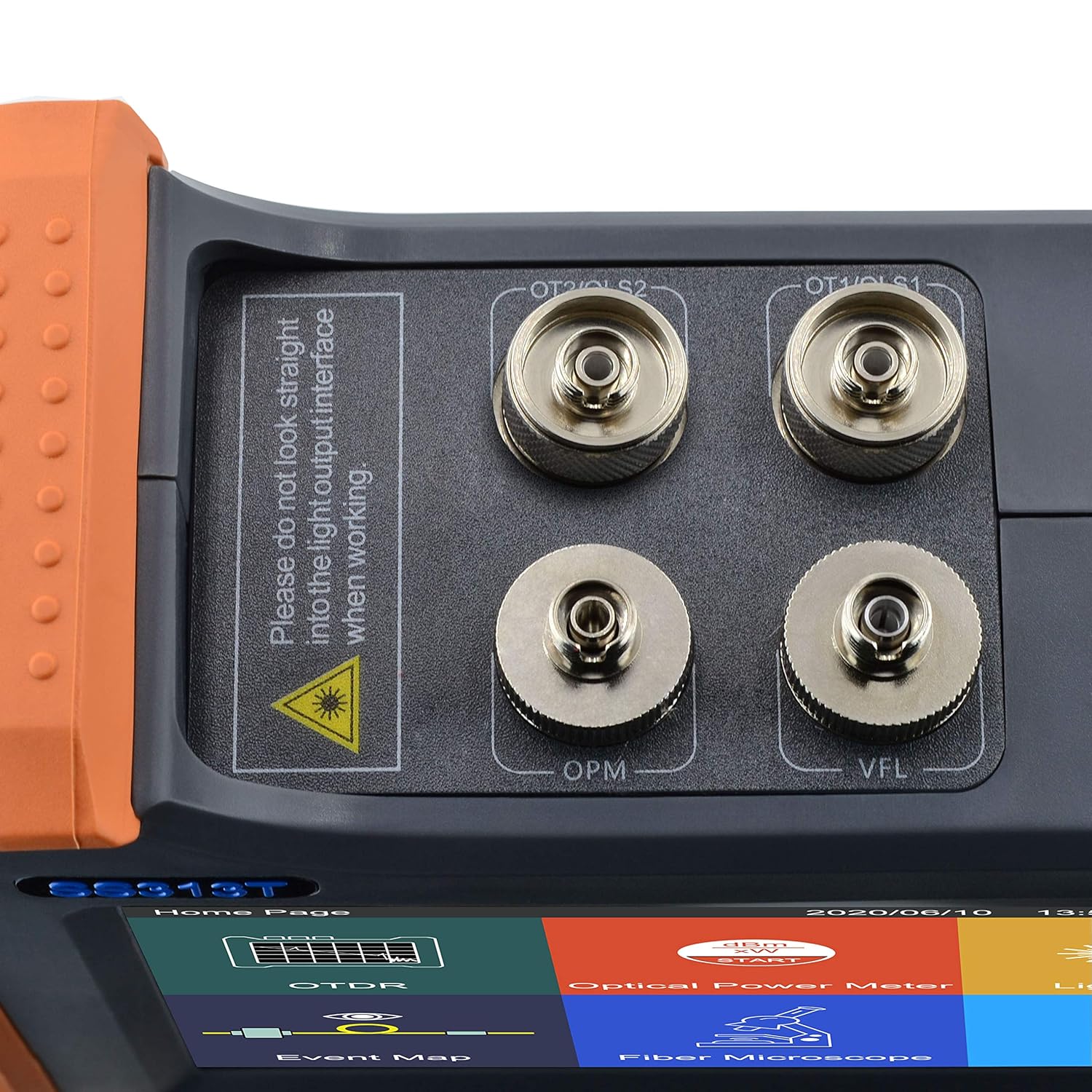

- ★Multiple Interfaces★- SS313T-4A has multiple data ports--2*USB+1*Miroc USB, which is convenient for storage, analysis and sharing of curves data. In addition, SS313T-4A provides 4*patch cord (SM FC/UPC-FC/UPC+SM FC/UPC-FC/APC+MM FC/UPC-FC/UPC+MM FC/UPC-FC/APC) and SC,ST,FC,LC connectors, compatible with SC/APC&UPC,ST/APC&UPC,FC/APC&UPC,LC/APC&UPC connectors.
| UPC | 767742166363 |
|---|---|
| Color | Gray+Orange |
| Model | SS313T-4A1 |
| Brand Name | SKYSHL |
| Style Name | SS313T-4A(1310/1550/850/1300nm 32/30/20/26dB)OTDR |
| Item Weight | 2.52 Kilograms |
| Part Number | SS313T-4A1 |
| Manufacturer | SKYSHL |
| Power Source | Battery-powered+ac/DC |
| Item Dimensions | 9.06 x 2.76 x 6.5 inches |
| Measurement Type | Optical Fiber Parameters |
| Specification Met | TIA |
| Included Components | 1*OTDR+1*FC/UPC for OTDR/OLS +1*FC/UPC for OPM |
| Upper Temperature Rating | 50 Degrees Celsius |
| Minimum Operating Voltage | 7.4 Volts |
