13000W Renewable Energy Controller Universal for Off Grid Wind Solar Hybrid Systems Hybrid Charge Controller,12V24V

●Are you still about the insufficient load of the traditional hybrid charge controller? ●GESAIDES 13000W wind and solar complementary charging controller perfectly solves all your worries.●Compared to standalone wind or solar power systems, the output of a hybrid system is more stable, reducing the impact of energy fluctuations on the power grid.●The and maintenance costs of a hybrid system are low, which can significantly reduce electricity costs in the long run.●SpecificationName: MPPT wind and solar hybrid controllerMaterial: aluminum alloyVoltage: 12V/24V or 24V/48VPower: 13000WSize: 165 x 140 x 66mmWeight: 2.5kgControl mode: MPPT fan boost charging function, PWM discharge function, PWM over-current limiting functionDisplay parameters: voltage, battery power, current, power, charging mode, temperature, etc., some parameters can be setA variety of working modes are optional: pure light control mode, normal open mode, light control + time control mode (four time periods + morning light)Applicable wind generator types: horizontal wind generator, vertical wind generator, AC wind generator, DC wind generator●Package List1 x Wind and Solar Hybrid Controller1 x Load Resistance●Shop ServicesIf you have any questions or suggestions about the product, you can email us and we will help you within 24 hours.

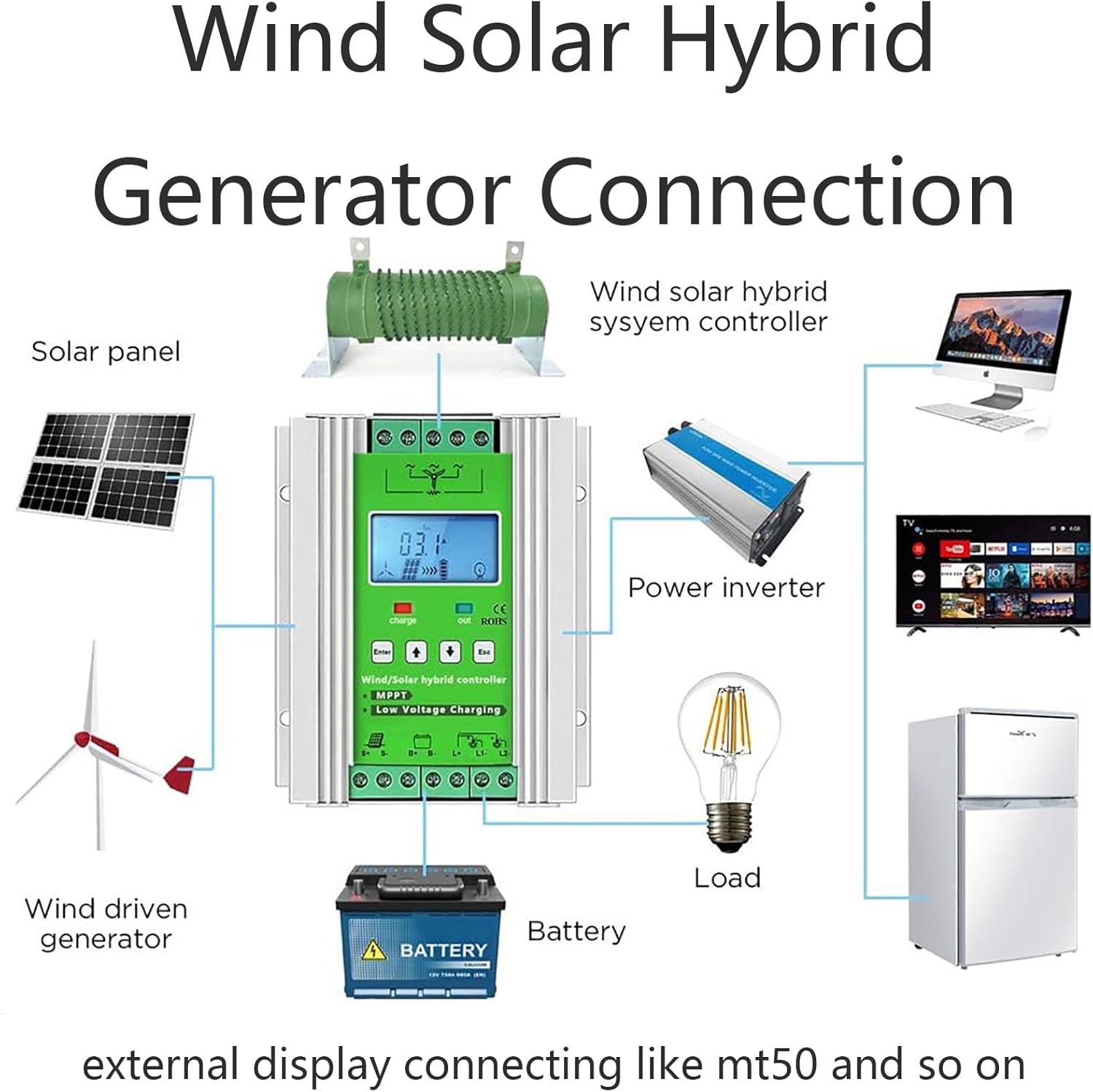

• 【Scope of Use】This hybrid charge controller is designed for dual voltage (12/24V or 24/48V auto detection) and supports a maximum of 13000W for wind generators and 13000W for solar panels. It is for wind-solar hybrid street lighting or home-based wind-solar complementary equipment.
• 【Upgraded Version MPPT Technology】The wind turbine charging part adopts booster MPPT technology, which make it charge continuous and efficiently even in low wind speed. Stepless unloading function including an external dump-load resistance. Solar panel charging use PWM technology by MOS tube in series.
• 【Load Working Mode】The complementary wind-solar controller supports two DC output loads, offering four selectable operating modes to accommodate user preferences. The configuration of the second load automatically mirrors that of the first.
• 【Display Interface】The hybrid charge controller utilizes a custom LCD display complemented by four buttons, providing an intuitive interface that simplifies monitoring, adjustments, and configurations.
• 【Protective Measures】The controller includes multiple safety features such as reverse charging protection for solar panels, voltage regulation (overcharge and under-voltage), overload protection, reverse polarity prevention, open circuit protection, and built-in lightning protection, safeguarding the system against various electrical anomalies.
