12.1 Inch Industrial IP65 Front Panel PC, Resistive Touch Screen, Gen 5th I3, PX07, 2 x COM for RS232 RS485, 2 x LAN, HDMI, 0 RAM, 0 Storage, Barebone No System
Product details
| Management number | 212363018 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212363018 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system Model Number: ANDAQI PX07 Panel: 12.1" TFT LCD panel, IP65 full flat front panel CPU: Core I3 Gen. 5th CPU, ship one of them Memory: 2 x SODIMM DDR3L 1333/1600, MAX. 16GB RAM Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD I/O: Power Switch, Audio, 2 x COM COM1/COM2 for RS232/RS485, 4 x USB3.0, 2 x LAN, CLR CMOS, HDMI, DC_IN Expansion: 2 x Mini PCIE slot for WiFi/BT/3G/4G, with sim slot Network Card: 2 x Realtek Gigabit LAN Speaker: Two 8-ohm 2-watt speaker Cooling System: Aluminum alloy, fanless Dimension: 309.5 x 248 x 77mm Embedded Installation: 298.5 x 237mm Weight: 3.7kgs Resolution: 1024 x 768 Brightness: 450cd/m2 Viewing Angle: Full angle Ratio: 4 : 3 Touch Screen: Resistive high sensitivity touch screen Life Time: The touch life can reach more than 50 million times Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc Work Temperature: -20 °C ~ 60 °C for SSD, surface air flow Work Humidity: 5% ~ 95% non-condensing Power Supply: DC100-240V AC/50-60Hz, 12V, customizable DC 9~36V wide voltage input Packing List: ANDAQI PX07 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0～255 level System Support: Windows 11, Linux Ubuntu etc

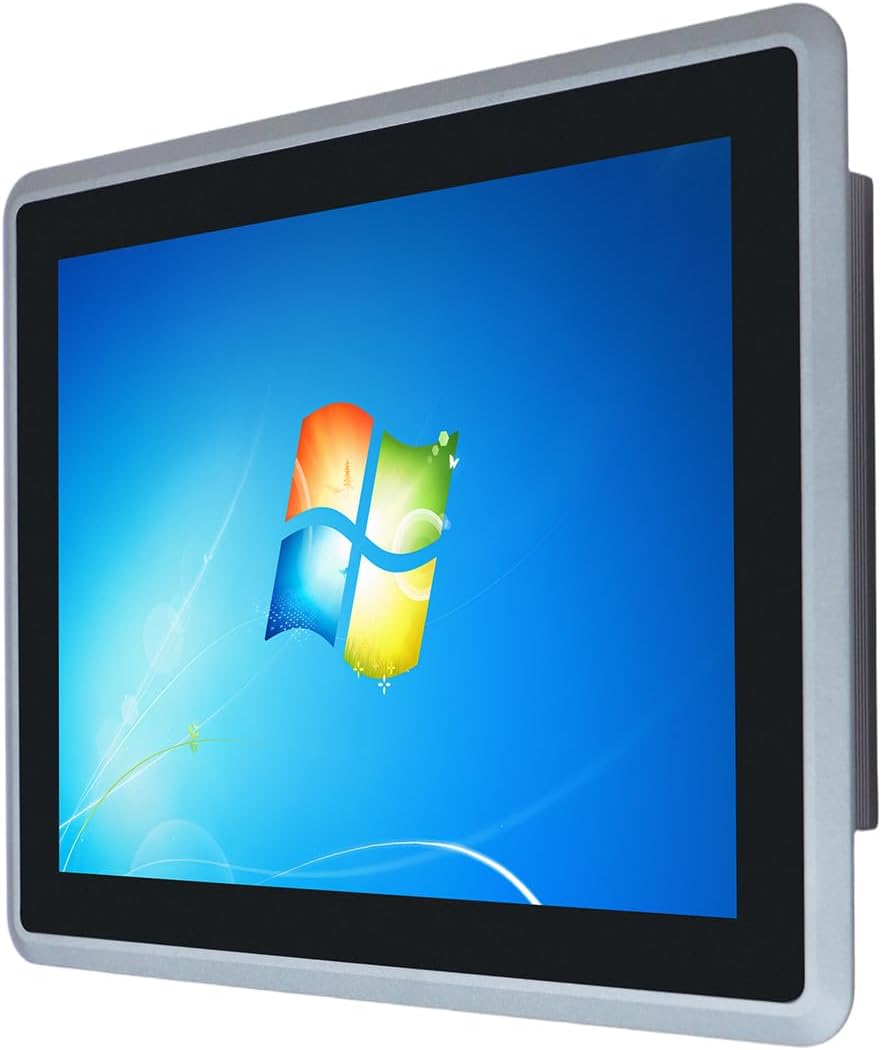

- 12.1 inch tft lcd industrial grade touch panel pc, front panel protection IP65, resistive touch screen, typical 1024 x 768 resolution, powered by core i3 gen. 5th processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

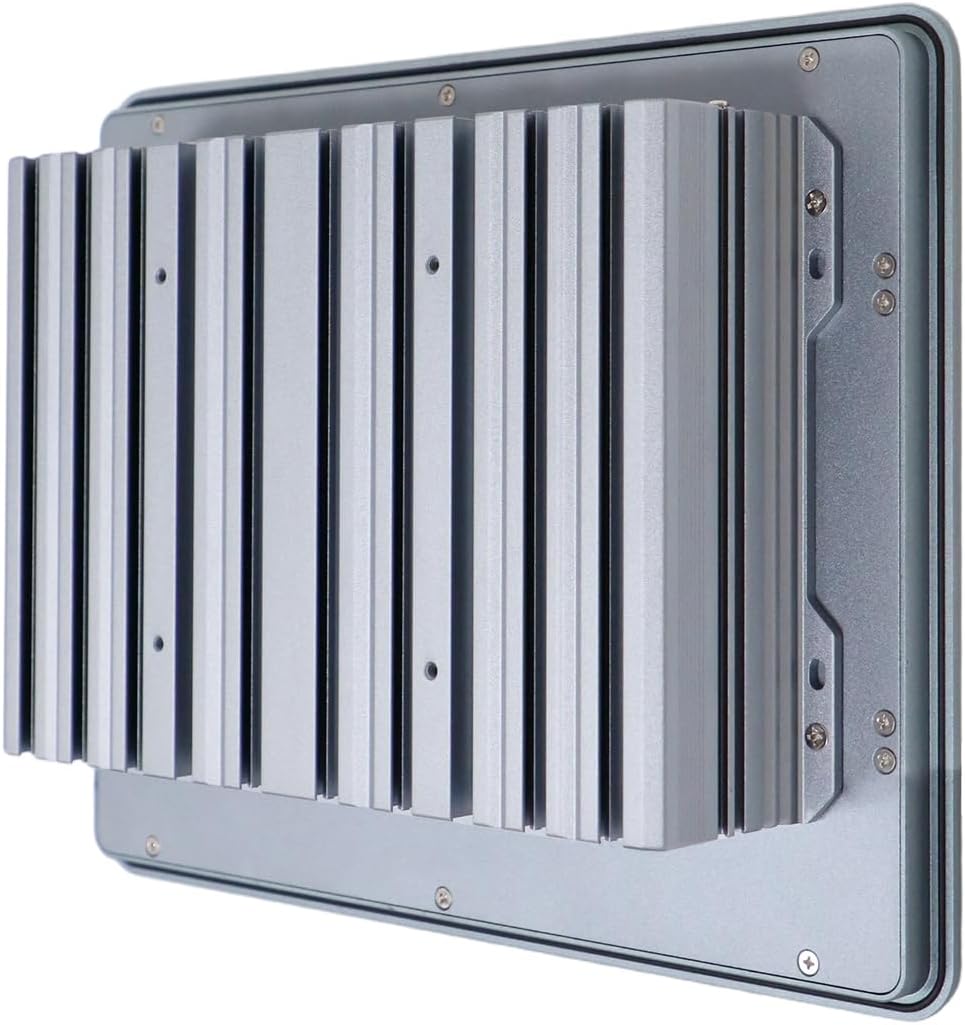

- Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient

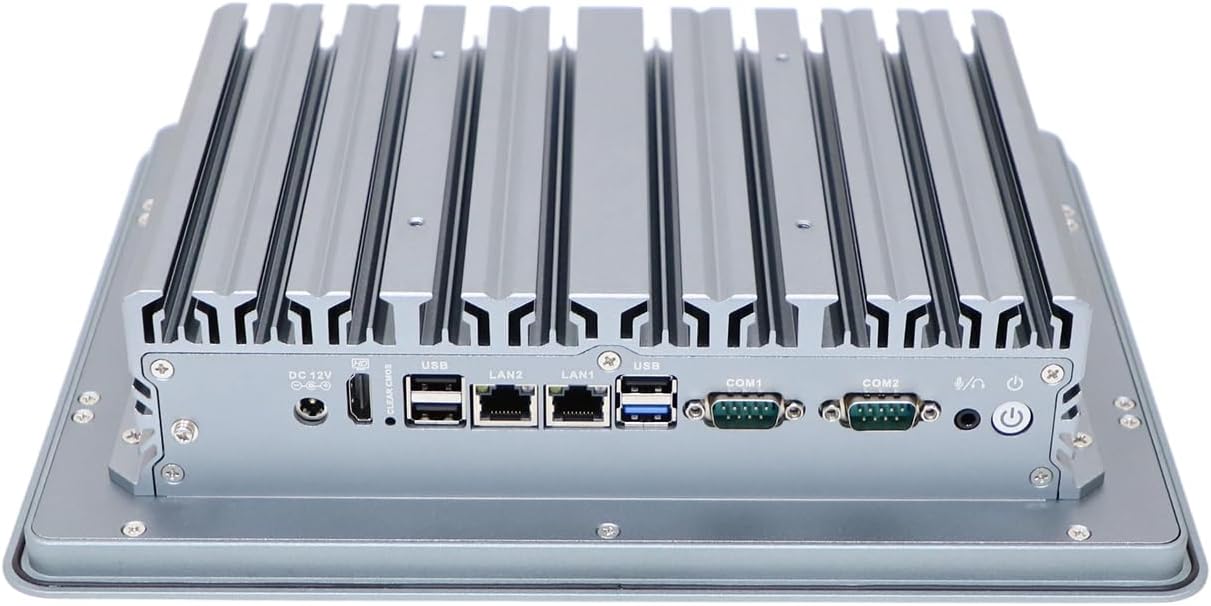

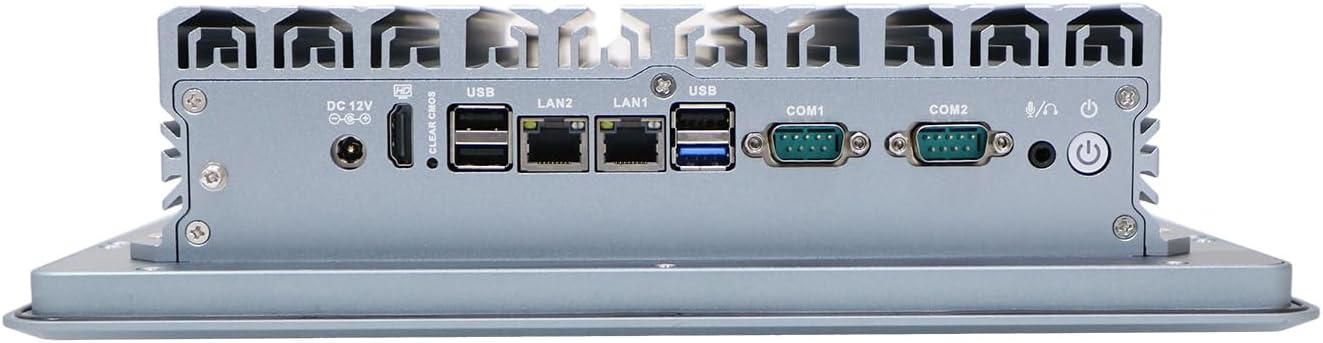

- ANDAQI PX07 designed with power switch, audio, 2 x com com1/com2 for rs232/rs485, 4 x usb3.0, 2 x lan, clr cmos, hdmi, dc_in, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 309.5 x 248 x 77mm, 3.7kgs, 12v power supply, with power cord make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc
| Brand | ANDAQI |
|---|---|
| Color | gray |
| RAM Type | SODIMM |
| Model Name | PX |
| Resolution | 1024 x 768 |
| Style Name | Gen 5th Core I3 |
| Item Weight | 33.7 Kilograms |
| Screen Size | 12.1 Inches |
| Aspect Ratio | 4:3 |
| Display Type | LCD |
| Manufacturer | Shen Zhen Shi An Da Qi Ke Ji You Xian Gong Si |
| Model Number | PX07 |
| BuiltIn Media | Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card |
| Cooling Method | Fanless |
| Item Type Name | HMI |
| Processor Brand | Intel |
| Processor Count | 2 |
| Processor Speed | 2 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | Intel Gen 5th Core I3 |
| Processor Series | Core i3 |
| Processor Socket | FCBGA1168 |
| Native Resolution | 1024x768 |
| Compatible Devices | Camera,Desktop,Gaming Console,Laptop,Smartphone,Speaker,Tablet |
| Hardware Interface | HDMI |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Intel HD Graphics 5500 |
| Graphics Description | Integrated |
| HumanInterface Input | Touch Pad |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3L |
| Memory Slots Available | 2 |
| Connectivity Technology | Powerline |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 16 GB |
| Ram Memory Maximum Size | 16 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 1024 x 768 Pixels |
| Total Number of HDMI Ports | 1 |
